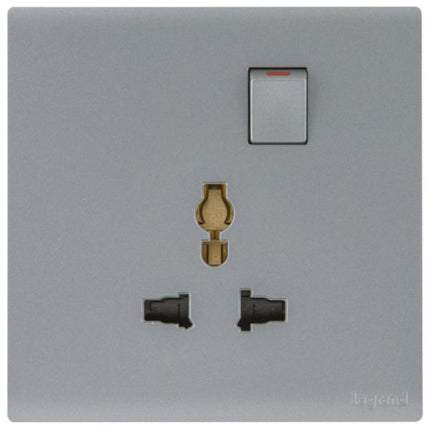

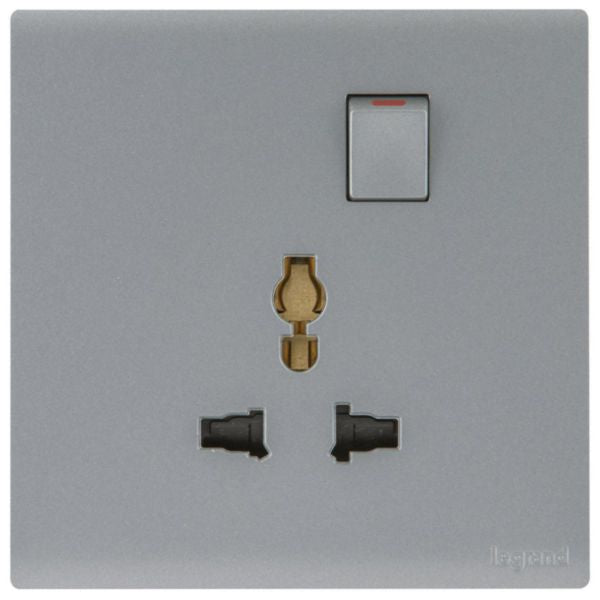

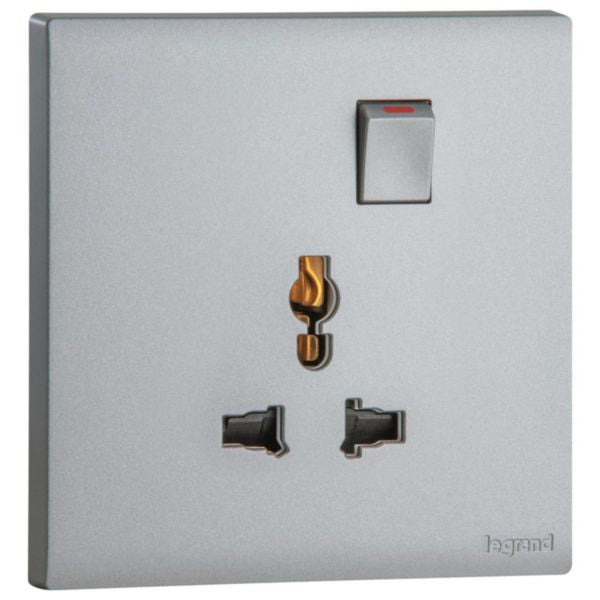

Shop Legrand Obria 1 Gang 16A Multistandard Switched Socket Dark Silver | MEC32045SL In Iraq Best Prices
Versatile 16A multistandard switched socket supporting Euro, US, Indian, Chinese, and British standards with enhanced child protection and modern dark silver finish
The Obria 1 Gang 16A Multistandard Switched Socket in Dark Silver is a versatile electrical outlet designed to accommodate multiple international power standards. This innovative socket allows seamless connection of electrical devices compatible with Euro, US, Indian, Chinese, or British standards, making it ideal for modern homes and international environments. The socket features a 2P+E configuration rated at 250V with screw-type terminals that ensure enhanced contact reliability and an open terminal design for easy installation. The dark silver finish provides a contemporary aesthetic that integrates perfectly with modern interior designs.
Equipped with advanced safety features, this switched socket includes protective shutters to maximize child protection and prevent accidental contact with live terminals. The quick and easy plate-rocker clipping system ensures simple installation, while the eject mechanism allows for safe plug removal. The socket maintains a nominal current rating of 16A at 250V AC (50-60 Hz) and is suitable for IP20 protection and IK04 impact strength ratings. With dimensions of 86mm width, 87.4mm height, and 33.2mm depth, it fits standard flush-mounted installation boxes with a minimum depth of 35mm.
The Obria multistandard socket is sold as a complete set under reference MEC32045SL with EAN 3414972672429. Built with thermoplastic material and featuring a lacquered, matt surface finish, this socket combines robustness with modern design. The product is recommended for inside use only and operates reliably within a temperature range of -5 to 35°C. The terminal marking indication and flexible cable connection capability (1-4mm² cable section) make this socket suitable for various installation scenarios in residential and commercial applications.
Key Features
- Multistandard compatibility with Euro, US, Indian, Chinese, and British power standards
- 2P+E configuration rated at 250V AC with 16A nominal current
- Protective shutters for enhanced child safety and terminal protection

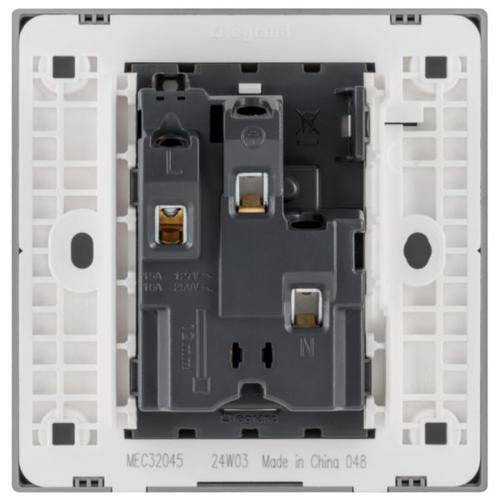

- Screw-type terminals with open design for secure and easy installation
- Quick and easy plate-rocker clipping system for simple mounting
- Eject mechanism for safe and convenient plug removal
- Dark silver lacquered finish with modern aesthetic design
- Thermoplastic construction with matt surface finishing
- Suitable for IP20 protection and IK04 impact strength ratings
- Complete set including full cover plate and mounting hardware
Technical Specifications
| Specification |
Value |
| Product Model | Multi-standard Switched Socket |
| Reference Number | MEC32045SL |
| EAN Code | 3414972672429 |
| Voltage Rating | 250V AC |
| Current Rating | 16A |
| Frequency Range | 50-60 Hz |
| Socket Configuration | 2P+E Multi-standard (Euro, US, Indian, Chinese, British) |
| Number of Socket Outlets | 1 switchable outlet |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or rigid |
| Cable Section | 1-4 mm² |
| Width | 86 mm |
| Height | 87.4 mm |
| Depth | 33.2 mm |
| Built-in Depth | 22.2 mm |
| Minimum Installation Box Depth | 35 mm |
| Material | Thermoplastic |
| Finish | Lacquered Matt |
| Color | Dark Silver |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with screw |
| Protection Degree (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| With On/Off Switch | Yes |
| Eject Mechanism | Yes |
| Safety Shutters | Yes |
| Terminal Marking | Yes |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Smart Home Compatibility | No (Apple HomeKit, Amazon Alexa, Google Assistant not compatible) |
| Halogen Free | No |
| Antimicrobial Treatment | No |
| Use Recommendation | Inside use only |
Order Legrand Obria 1 Gang 16A Multistandard Switched Socket Dark Silver | MEC32045SL at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
