Professional TV-R-SAT terminal socket with -10dB attenuation, white finish, IP21 rated, suitable for multi-signal distribution in residential and commercial installations

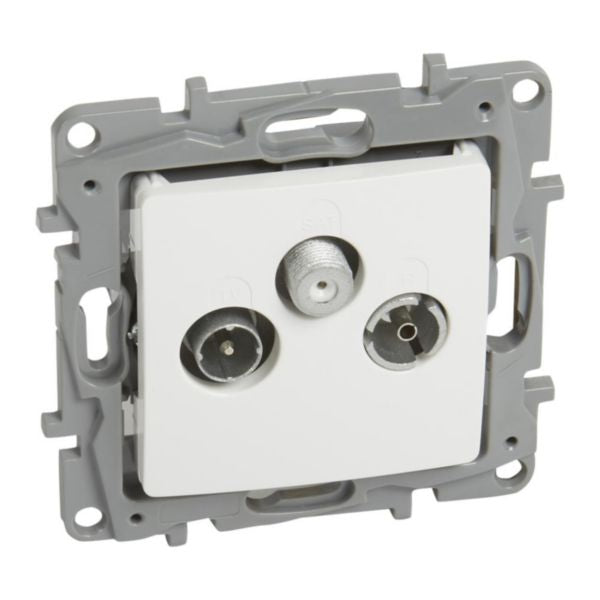

The Niloé™ TV-R-SAT Terminal Socket is a professional-grade television signal distribution component designed for residential and commercial installations. This flush-mounted socket features comprehensive signal management capabilities with separate connectors for television (TV), radio (R), and satellite (SAT) signals. The terminal socket includes a 1-input configuration with 1 resistance cap socket and provides -10 dB attenuation across all frequency bands, ensuring optimal signal quality and minimizing interference in multi-outlet installations.
This white terminal socket is engineered with thermoplastic construction and features a glossy surface finish that complements modern interior designs. The device incorporates advanced signal handling with TV frequency range of 5-68/120-862 MHz, R frequency range of 87.5-108 MHz, and SAT frequency range of 950-2400 MHz. The socket is compatible with 17 VATC recommended coaxial cable and includes visual connection checking capabilities. It is IP21 rated for dust and moisture protection and IK04 rated for impact resistance, making it suitable for demanding installation environments.
The Niloé™ terminal socket comes supplied with cover plates and support frames, featuring both screw and claw fixing options for flexible installation. An amplifier and line balancing are recommended for optimal performance in complex signal distribution systems. The product is halogen-free, compliant with RoHS directives, and suitable for remote power supply applications. With a minimum built-in installation box depth of 40 mm and operating temperature range of 5-45°C, this terminal socket delivers reliable performance in standard residential and commercial settings.
Key Features
- Triple signal support - TV, Radio, and Satellite connectors in one compact unit
- 10dB attenuation control for optimized signal distribution and interference reduction
- IP21 dust and moisture protection with IK04 impact resistance rating
- Halogen-free thermoplastic construction compliant with RoHS directives
- Flexible installation with screw and claw fixing options for various mounting scenarios
Technical Specifications
| Specification |
Value |
| Product Model | Niloé™ TV-R-SAT Terminal Socket |
| Reference Number | 764565 |
| EAN Code | 3414970683557 |
| Socket Type | TV/R/SAT Terminal Socket with 1 input and 1 resistance cap |
| Attenuation | -10 dB at 860 MHz and 2150 MHz |
| TV Frequency Range | 5-68/120-862 MHz |
| Radio Frequency Range | 87.5-108 MHz |
| Satellite Frequency Range | 950-2400 MHz |
| Connector Types | TV: Male 9.5mm, R: Female 9.5mm, SAT: F-type |
| Recommended Cable | 17 VATC Coaxial Cable |
| Mounting Method | Flush-mounted with screw and claw fixing options |
| Color | White |
| RAL Number | 9003 (similar) |
| Material | Thermoplastic |
| Surface Finish | Glossy |
| Degree of Protection | IP21 |
| Impact Resistance | IK04 |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 28.3 mm |
| Minimum Installation Box Depth | 40 mm |
| Operating Temperature Range | 5-45°C |
| Storage Temperature Range | -25-70°C |
| Halogen Free | Yes |
| RoHS Compliance | Yes |
| Remote Power Supply Compatible | Yes |
| Antimicrobial Treatment | No |
| DAB+ Compatible | No |
| Cable Modem Compatible | No |
| Included Accessories | Cover plates and support frames with screw and claw fixings |
