Shop Legrand Niloé TV-R-SAT Multiple Star Socket 1.5dB Ivory | 764663 In Iraq Best Prices
Professional TV-R-SAT multiple star socket with low 1.5dB attenuation, UHD TV compatible, Class A shielded, LTE Ready, meets EN standards, ivory finish

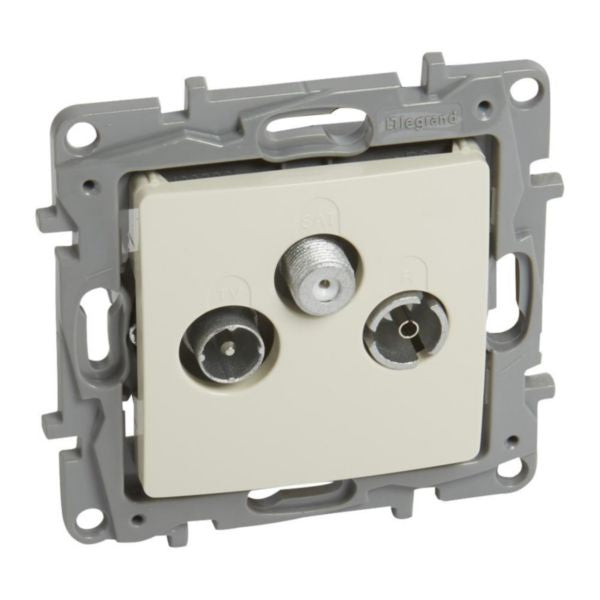

The Niloé TV-R-SAT multiple star socket is a professional-grade television distribution outlet designed for modern home and building installations. This flush-mounted mechanism features integrated TV, radio, and satellite connectivity in a single elegant ivory-colored unit. The socket is specifically engineered for DVBT, Cablecast, and satellite installations with UHD TV compatibility, making it ideal for contemporary entertainment systems. The unit incorporates Class A shielded star sockets that are LTE Ready (4G protected), ensuring reliable performance in today's connected environments.
With exceptional low attenuation of just 1.5 dB at 860 MHz and 2 dB at 2150 MHz, this socket minimizes signal loss across all frequency bands. The device supports TV signals from 5-68/120-862 MHz, radio frequencies from 87.5-108 MHz, and satellite signals from 950-2400 MHz. The star cabling architecture ensures that each socket connects directly to the antenna, splitter, or multiswitch with a dedicated cable, providing superior signal integrity and visual connection verification. The socket meets stringent European standards EN 50083-4 and EN 50083-2, guaranteeing compliance with international broadcasting requirements.
This Niloé model comes equipped with cover plates and support frames, featuring both screw and claw fixing options for flexible installation. The thermoplastic construction is halogen-free and features a lacquered matt beige finish for aesthetic appeal. With an IP21 degree of protection and IK04 impact strength rating, the socket offers robust protection against dust and accidental impacts. The device operates reliably between 5-45°C and can be stored at temperatures ranging from -25-70°C, making it suitable for diverse climatic conditions.
Key Features
- Low attenuation of 1.5 dB at 860 MHz and 2 dB at 2150 MHz for superior signal integrity
- UHD TV compatible with DVBT, Cablecast, and satellite installation support
- Class A shielded star sockets with LTE Ready (4G) protection technology
- Star cabling architecture with dedicated cable per socket for visual connection verification
- Complies with European standards EN 50083-4 and EN 50083-2
- Halogen-free thermoplastic construction with lacquered matt ivory finish
- Flexible installation with both screw and claw fixing options
- IP21 protection degree with IK04 impact strength rating
- Operating temperature range 5-45°C with storage capability -25-70°C
- Supports TV (5-68/120-862 MHz), Radio (87.5-108 MHz), and SAT (950-2400 MHz) frequencies
Technical Specifications
| Specification |
Value |
| Product Model | Niloé TV-R-SAT Multiple Star Socket |
| Type of Socket Outlet | TV/RD/SAT (Television/Radio/Satellite) |
| Reference Number | 764663 |
| EAN Code | 3414970685100 |
| Number of Outlets | 3 (TV, Radio, SAT) |
| Tap Loss at 860 MHz | 1.5 dB |
| Tap Loss at 2150 MHz | 2 dB |
| TV Frequency Band | 5-68 MHz / 120-862 MHz |
| Radio Frequency Band | 87.5-108 MHz |
| SAT Frequency Band | 950-2400 MHz |
| TV Connector Type | Male connector (9.5 mm) |
| Radio Connector Type | Female connector (9.5 mm) |
| SAT Connector Type | F-type connector |
| Mounting Method | Flush-mounted |
| Assembly Arrangement | Basic element with central cover plate |
| Colour | Beige (Ivory) |
| Surface Finishing | Lacquered Matt |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Degree of Protection (IP) | IP21 |
| Degree of Impact Strength (IK) | IK04 |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 28.3 mm |
| Minimum Depth of Built-in Installation Box | 40 mm |
| Operating Temperature Range | 5-45°C |
| Storage Temperature Range | -25-70°C |
| DAB+ Compatible | Yes |
| Suitable for Cable Modem | No |
| Suitable for Remote Power Supply | Yes |
| UHD TV Compatible | Yes |
| LTE Ready (4G Protected) | Yes |
| Recommended Coaxial Cable | 17 VATC |
| Cabling Architecture | Star cabling (1 socket = 1 cable to antenna/splitter/multiswitch) |
| European Standards Compliance | EN 50083-4 and EN 50083-2 |
| Shielding Class | Class A |
| Fixing Options | Screws or claws (supplied) |
| Antimicrobial Treatment | No |
