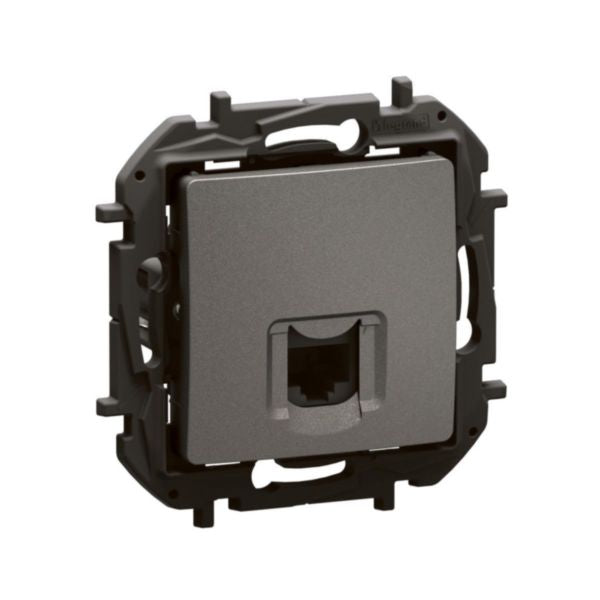

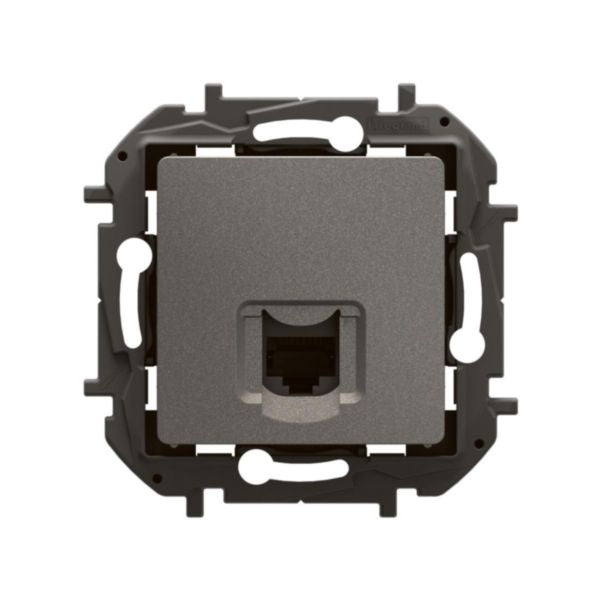

Shop Legrand Niloé RJ45 Socket Cat6A STP Medium Grey Flush-Mounted | NP4305MG In Iraq Best Prices
Professional Cat6A STP RJ45 socket with 1Gbps data rate, tool-free installation, 360° EMC protection, and halogen-free construction for flush-mounted residential and commercial applications.
The Niloé RJ45 socket Cat6A STP delivers professional-grade high-speed network connectivity with exceptional reliability and performance. This flush-mounted socket is engineered to support data rates up to 1Gbps, enabling rapid file transfers such as downloading a 1GB file in just 8 seconds. The shielded twisted pair (STP) design features 360° EMC protection with ground continuity bushing and TIA 568A/B color-coded contacts to ensure standard-compliant wiring and optimal signal integrity.
Designed for both commercial and residential installations, this socket features a tool-free quick connector system that ensures intuitive and reliable wiring without requiring specialized equipment. The shallow depth mechanism (30mm built-in depth) facilitates mounting into standard flush-mounted boxes with minimum 40mm depth, making installation straightforward and efficient. The plastic support frame offers robust rigidity and high resistance, with a compact device width and height of 75.8mm and depth of 42mm, providing durable performance in demanding environments.
The Niloé RJ45 socket is optimized for high-capacity PoE applications, delivering both power and data over twisted pair Ethernet cabling for efficient network deployment. Halogen-free construction and ECO2 mechanism compatibility demonstrate commitment to sustainable practices. The socket supports IP and analog phones, and is highly suitable for downloads, streaming, and online gaming requiring low latency. Compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, this versatile socket meets ISO/IEC 11801 edition 3.0 (2017) standards and comes supplied in a recyclable paper box.
Key Features
- 1Gbps Cat6A STP connectivity supporting rapid file transfers and high-speed data transmission
- Tool-free quick connector system enabling intuitive installation without specialized equipment
- 360° EMC protection with ground continuity bushing and TIA 568A/B color-coded contacts
- Optimized for high-capacity PoE applications delivering both power and data over Ethernet
- Halogen-free construction with ECO2 mechanism compatibility for sustainable practices
- Shallow 30mm built-in depth for easy mounting in standard flush boxes
- Slot system enabling perfect multigang setting with easy support frame joining
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity
- IP20 degree of protection with IK04 impact strength rating
- ISO/IEC 11801 edition 3.0 (2017) standards compliant
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket |
| Category Rating | Cat6A (IEC) |
| Data Rate | 1Gbps (1000 Mbps) |
| Connector Type | RJ45 8(8) |
| Shielding Type | Shielded Twisted Pair (STP) |
| Installation Type | Flush-mounted |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 42 mm |
| Built-in Depth | 30 mm |
| Minimum Box Depth Required | 40 mm |
| Colour | Medium Grey |
| Assembly Arrangement | Central cover plate |
| Cable Compatibility | AWG22 to AWG26 single-core, AWG26 multicore |
| Plug Compatibility | RJ11, RJ12, RJ45 |
| EMC Protection | 360° with ground continuity bushing |
| Color Coding | TIA 568A/B standard |
| IP Rating | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature | -5°C to +40°C |
| Storage Temperature | -10°C to +70°C |
| Halogen Free | Yes |
| ECO2 Compatible | Yes |
| Standards Compliance | ISO/IEC 11801 edition 3.0 (2017) |
| Installation Method | Tool-free quick connector |
| Surface Mounting | No |
| Duct Installation | No |
| Floor Box Installation | No |
| Dust Cover | No |
| With Label Space | No |
| Separate Earthing Connection | No |
| Antimicrobial Treatment | No |
| Packaging | Recyclable paper box |
| Reference Number | NP4305MG |
| EAN Code | 3414972773362 |
