Shop Legrand Niloé RJ45 Socket CAT6A FTP Medium Grey Flush-Mounted | NP4302MG In Iraq Best Prices
Professional CAT6A FTP RJ45 socket with flush-mounted installation, supporting 10Gbps data transmission, toolless quick connector, and matte medium grey finish for reliable high-speed network connectivity.

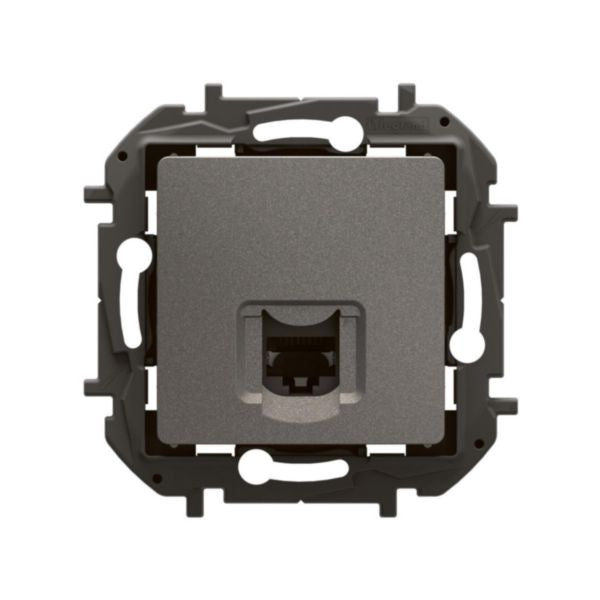

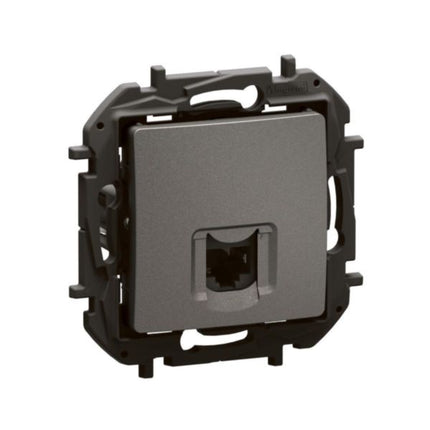

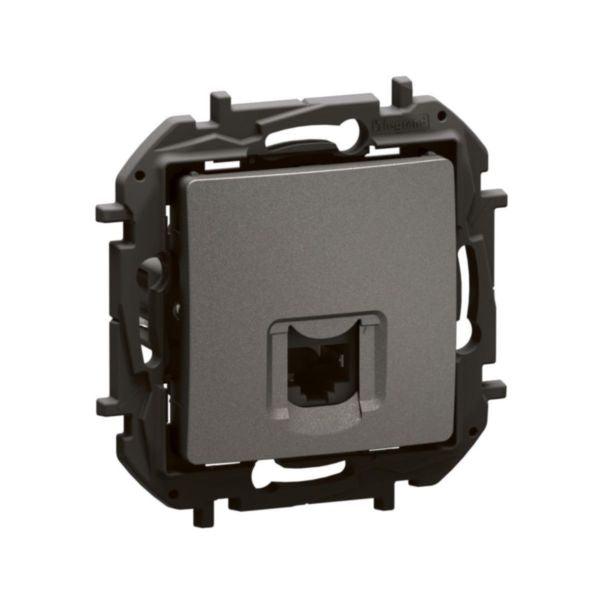

The Niloé RJ45 socket is a professional-grade Category 6A FTP network socket designed for high-speed data transmission supporting up to 10Gbps. This flush-mounted installation socket features a matte medium grey finish and is engineered for both commercial and residential applications. The socket incorporates TIA 568A/B color-coded contacts for standardized and reliable network installations, ensuring compliance with ISO/IEC 11801 edition 3.0 (2017) standards.
This advanced networking solution combines robust performance with user-friendly installation features. The RJ45 CAT6A FTP socket supports high-capacity PoE applications, delivering both power and data over twisted pair Ethernet cabling for efficient device connectivity. The plastic support frame offers exceptional rigidity with IK04 impact resistance and halogen-free construction for enhanced safety in various environments. The toolless quick connector mechanism enables intuitive and reliable wiring without requiring specialized tools, making professional installation straightforward and efficient.
The Niloé RJ45 socket is particularly suitable for applications requiring rapid file transfers, streaming, online gaming, and low-latency communications. With a shallow depth mechanism that facilitates mounting into standard flush-mounted boxes, this socket provides perfect multigang setting capabilities through its integrated slot system. The product comes equipped with a professional cover plate and is supplied in a recyclable paper box, supporting sustainable installation practices. Compatible with ECO2 mechanisms and available with reference NP4302MG, this socket represents the ideal choice for modern network infrastructure requiring reliability, performance, and ease of installation.
Key Features
- CAT6A FTP socket supporting up to 10Gbps data transmission for rapid file transfers and streaming
- Toolless quick connector with integrated crimping for intuitive and reliable wiring installation
- TIA 568A/B color-coded contacts ensuring standardized and compliant network installations
- High-capacity PoE support delivering both power and data over twisted pair Ethernet cabling
- Shallow depth mechanism with IK04 impact resistance and halogen-free plastic support frame
- Matte medium grey finish with professional appearance and easy multigang slot system
- IP20 rated protection with flush-mounted installation for seamless integration
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity options
- ECO2 mechanism compatible and supplied in recyclable paper box for sustainability
- Compliant with ISO/IEC 11801 edition 3.0 (2017) standards for professional installations
Technical Specifications
| Specification |
Value |
| Product Reference | NP4302MG |
| EAN Code | 3414972773331 |
| Category | CAT6A (IEC) |
| Connector Type | RJ45 8(8) |
| Installation Type | Flush-mounted |
| Shielding Type | FTP (Foiled Twisted Pair) |
| Data Transmission Speed | Up to 10Gbps |
| Color | Medium Grey (Matte) |
| IP Rating | IP20 |
| Impact Resistance | IK04 |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 42 mm |
| Built-in Depth | 30 mm |
| Minimum Installation Box Depth | 40 mm |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -10°C to +70°C |
| Cable Compatibility | AWG22 to AWG26 single-core, AWG26 multicore |
| Color Coding Standard | TIA 568A/B |
| Halogen Free | Yes |
| PoE Support | High-capacity PoE applications |
| Assembly Arrangement | Central cover plate |
| Fastening Type | Other |
| Compliance Standard | ISO/IEC 11801 edition 3.0 (2017) |
| Mounting Method | Toolless quick connector |
| Connector Direction | Straight |
| Dust Cover | No |
| Label Space | No |
| Third-party Cover Compatibility | No |
| Separate Strain Relief | No |
| Separate Earthing Connection | No |
| Shielded Housing | No |
| Shielded Buses | No |
| Mechanical Coding | No |
| Antimicrobial Treatment | No |
| Packaging | Recyclable paper box |
| ECO2 Compatible | Yes |
| Application | Commercial and residential installations |
| Use Environment | Indoor only |
