Shop Legrand Niloé RJ45 Socket CAT6 UTP Black Flush-mounted | NP4304BK In Iraq Best Prices
Premium RJ45 CAT6 UTP socket with 1Gbps data rate, flush-mounted design, matte black finish, and TIA 568A/B color coding for professional networking installations.

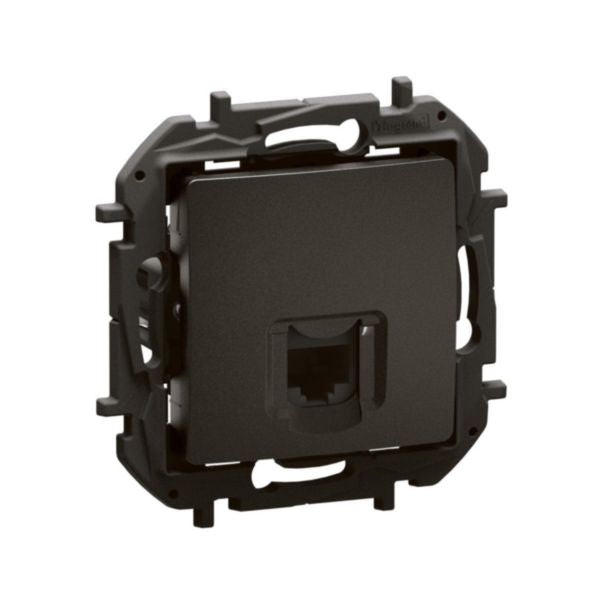

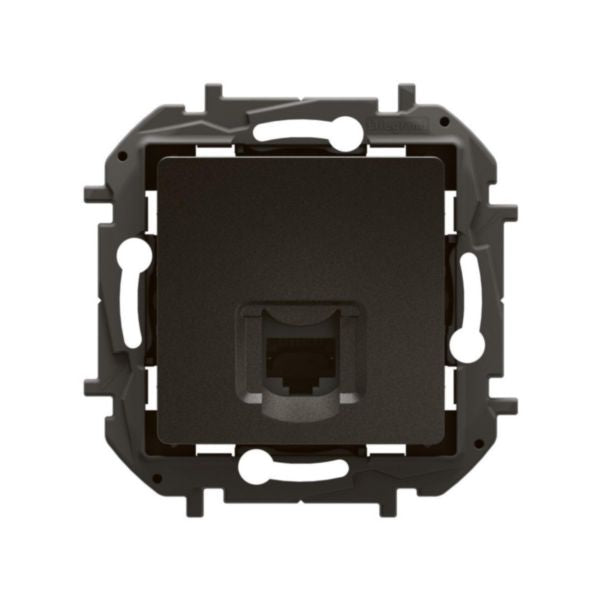

The Niloé RJ45 socket represents a premium networking solution designed for high-speed Cat 6 UTP connectivity. This flush-mounted device delivers reliable data transmission at speeds up to 1Gbps, making it ideal for modern residential and commercial installations. The socket features a matte black finish that provides both aesthetic appeal and durability, with a rigid plastic support frame that ensures secure installation in standard electrical boxes. The TIA 568A/B color-coded contacts guarantee standardized wiring practices and optimal network performance for professional installations.
This RJ45 socket is specifically optimized for high-capacity Power over Ethernet (PoE) applications, enabling efficient delivery of both power and data over twisted pair Ethernet cabling. The tool-less quick connector system simplifies installation, allowing for intuitive and reliable wiring without requiring specialized equipment. With a shallow depth mechanism of just 30mm built-in depth, it fits easily into standard flush-mounted boxes without requiring additional wall modifications. The device is compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, providing versatile connectivity options.
Compliant with ISO/IEC 11801 edition 3.0 (2017) standards, this socket supports data rates enabling rapid file transfers such as downloading a 1GB file in approximately 8 seconds. The product comes supplied in a recyclable paper box, reflecting Legrand's commitment to sustainability. It is designed for indoor use only and requires a minimum 40mm depth electrical installation box. The socket accepts AWG22 to AWG26 single-core cables and AWG26 multicore cables, making it suitable for various installation scenarios.
Key Features
- High-speed Cat 6 UTP connectivity supporting data rates up to 1Gbps for rapid file transfers
- Optimized for Power over Ethernet (PoE) applications delivering both power and data simultaneously
- TIA 568A/B color-coded contacts ensuring standardized wiring and reliable network performance
- Tool-less quick connector system for intuitive and reliable installation without specialized equipment
- Matte black finish with rigid plastic support frame for secure flush-mounted installation
- Shallow 30mm built-in depth fitting standard electrical boxes without additional modifications
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity options
- ISO/IEC 11801 edition 3.0 (2017) compliant for professional installations
- Halogen-free construction and recyclable paper packaging for environmental sustainability
- Supports AWG22-AWG26 single-core and AWG26 multicore cables for flexible wiring options
Technical Specifications
| Specification |
Value |
| Product Reference | NP4304BK |
| EAN Code | 3414972626330 |
| Connector Type | RJ45 8(8) |
| Category | CAT6 UTP |
| Data Rate | 1Gbps (1 Gigabit per second) |
| Color | Matte Black |
| Installation Type | Flush-mounted |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 42 mm |
| Built-in Depth | 30 mm |
| Minimum Box Depth Required | 40 mm |
| Impact Strength Rating | IK04 |
| IP Rating | IP20 |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -10°C to +70°C |
| Cable Compatibility | AWG22 to AWG26 single-core, AWG26 multicore |
| Outlet Direction | Straight |
| Shielding | Unshielded (UTP) |
| Color Coding | TIA 568A/B |
| Halogen Free | Yes |
| Standards Compliance | ISO/IEC 11801 edition 3.0 (2017) |
| Dust Cover | No |
| Mechanical Coding | No |
| Separate Earthing Connection | No |
| Label Space | No |
| Antimicrobial Treatment | No |
| Packaging | Recyclable paper box |
| Use Type | Indoor only |
| Application | Residential and Commercial |
