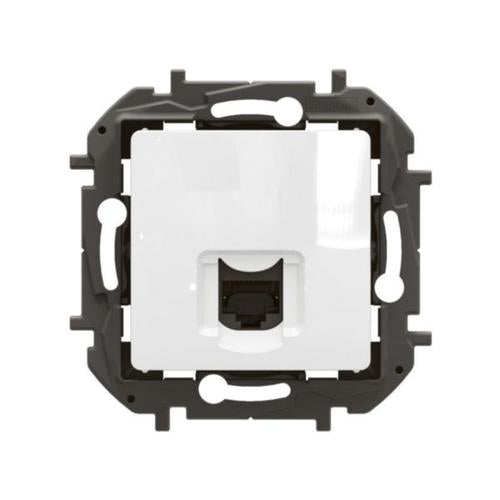

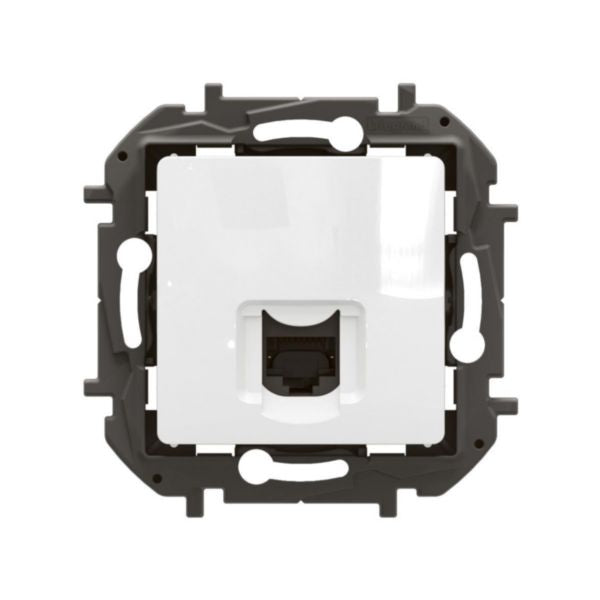

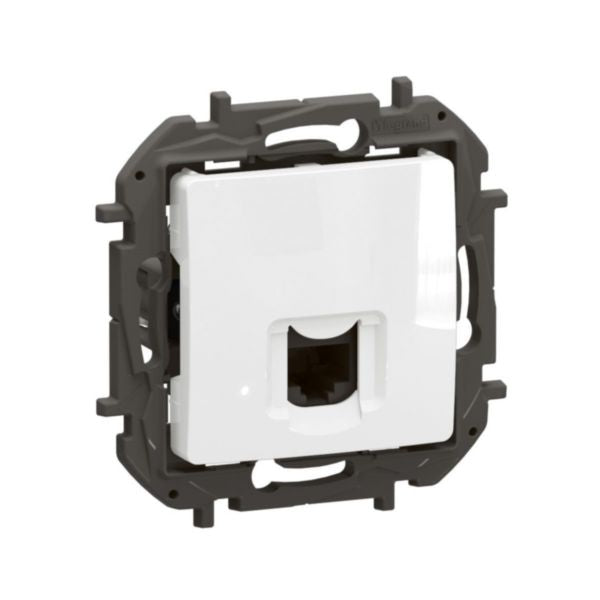

Shop Legrand Niloé RJ45 Cat5E UTP Socket White Flush-Mounted | NP4301WH In Iraq Best Prices
Professional flush-mounted RJ45 Cat5E UTP socket offering 1Gbps connectivity with halogen-free construction, IP20 protection, and IK04 impact resistance for reliable commercial and residential network installations.
The Niloé RJ45 socket is a professional-grade, flush-mounted network outlet designed for high-speed Category 5E UTP connectivity. This halogen-free socket provides secure, reliable data transmission with support for data rates up to 1Gbps, making it ideal for rapid file transfers and high-bandwidth applications. The socket features a central cover plate design and IP20 rating, ensuring robust performance in both commercial and residential environments. With its plastic support frame offering IK04 impact resistance, this socket is engineered for demanding installation scenarios while maintaining compliance with international standards including ISO/IEC 11801 Ed. 2.0, EN 50173-1, and TIA/EIA 568 C2.
This RJ45 socket is specifically engineered for PoE (Power over Ethernet) applications, enabling efficient delivery of both power and data over twisted pair Ethernet cabling. The straight outlet direction and 8(8) connector configuration ensure compatibility with standard network infrastructure. The device features a glossy white finish (RAL 9003) and is compatible with the ECO2 mechanism, supplied in recyclable packaging for sustainable installation practices. Its compact dimensions of 75.8mm x 75.8mm with a 42mm depth make it suitable for multigang installations where slot system alignment provides perfect integration.
The socket is recommended for indoor use only and is particularly suitable for commercial installations, residential networks, IP and analog phones, and applications requiring low-latency performance such as downloads, streaming, and online gaming. Operating temperature range of -5 to 40°C ensures reliable functionality across varied environmental conditions. The product's halogen-free construction and IK04 impact strength rating demonstrate Legrand's commitment to safety, sustainability, and durability in professional networking solutions.
Key Features
- Category 5E UTP supports data rates up to 1Gbit/s for rapid file transfers and high-bandwidth applications
- Halogen-free construction ensures safety and environmental compliance in all installation environments
- Flush-mounted design with central cover plate and IP20 rating for secure professional installations
- High-capacity PoE (Power over Ethernet) support delivers both power and data over single twisted pair cabling
- IK04 impact resistance with plastic support frame ensures durability in demanding commercial and residential settings
- ISO/IEC 11801 Ed. 2.0, EN 50173-1, and TIA/EIA 568 C2 standards compliance for international compatibility
- Slot system allows perfect multigang setting with easy installation and professional alignment
- ECO2 mechanism compatible with recyclable paper packaging for sustainable deployment
- Glossy white finish (RAL 9003) provides professional appearance suitable for any interior design
- Straight outlet direction with 8(8) RJ45 connector configuration for standard network infrastructure integration
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Flush-Mounted Network Socket |
| Category | Category 5E UTP |
| Data Transfer Rate | Up to 1 Gbps |
| Connector Type | RJ45 8(8) Straight Outlet |
| Color | White (RAL 9003) |
| Installation Type | Flush-mounted with central cover plate |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 42 mm |
| Built-in Depth | 30 mm |
| IP Rating | IP20 |
| Impact Strength | IK04 |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -10°C to +70°C |
| Halogen Free | Yes |
| Shielding | Unshielded (UTP) |
| Dust Cover | No |
| Separate Earthing Connection | No |
| Standards Compliance | ISO/IEC 11801 Ed. 2.0, EN 50173-1, TIA/EIA 568 C2 |
| Mounting Method | Slot system for multigang installation |
| Vertical Fixing Center Distance | 60 mm |
| Horizontal Fixing Center Distance | 60 mm |
| Tube Diameter for Wall Mounted | 58 mm |
| Mechanical Coding | No |
| Color Coding | Yes |
| Antimicrobial Treatment | No |
| PoE Support | Yes - High-capacity Power over Ethernet |
| SKU/Reference | NP4301WH |
| EAN Code | 3414972626125 |
| Brand | Legrand |
| Product Line | Niloé |
| Packaging | Recyclable paper box |
| ECO2 Mechanism | Compatible |
