Shop Legrand Niloé RJ11+RJ45 CAT6 UTP White Flush-Mounted Socket | NP492WH In Iraq Best Prices
Professional dual-port RJ11+RJ45 CAT6 UTP socket with flush-mounted white design, supporting 1Gbps data rates and halogen-free materials for residential and commercial installations.

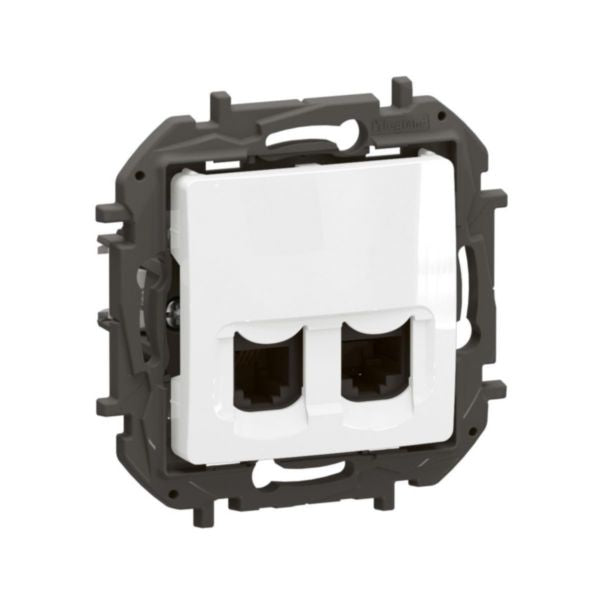

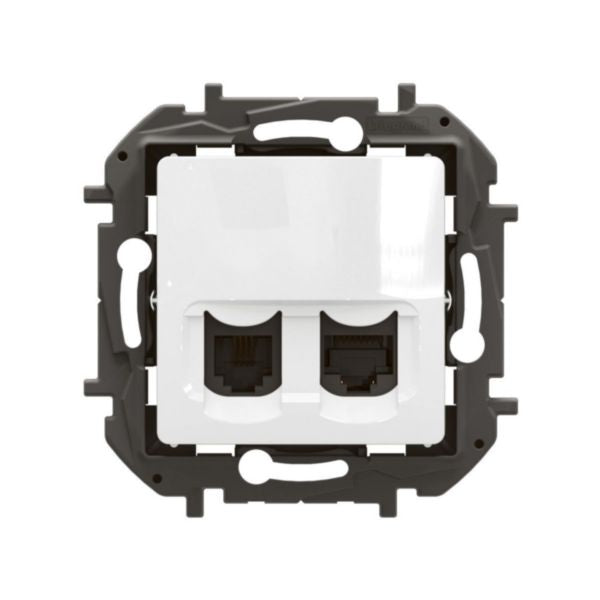

The Niloé RJ11+RJ45 CAT6 UTP socket is a professional-grade networking solution designed for both residential and commercial installations. This dual-port socket combines telephone (RJ11) and data (RJ45) connectivity in a single, compact unit, enabling seamless integration of voice and high-speed internet communication. The flush-mounted installation design ensures a clean, integrated appearance with a glossy white finish that complements modern interior designs. With Category 6 UTP cabling support, this socket delivers data rates up to 1Gbps, making it ideal for bandwidth-intensive applications such as streaming, online gaming, and large file downloads.
The socket features advanced technical specifications including dual color coding and support for both 568A and 568B wiring schemes, ensuring error-free installation by professionals and experienced users alike. The plastic support frame provides exceptional rigidity with IK04 impact resistance, making it suitable for demanding environments. Tap-off functionality allows for flexible network expansion and easy integration into structured cabling systems. The device maintains a compact profile with dimensions of 75.8mm x 75.8mm x 42mm, fitting perfectly into standard electrical installations. Built with halogen-free materials and supplied in recyclable packaging, this socket reflects Legrand's commitment to environmental responsibility.
Compatible with the ECO2 mechanism, the Niloé RJ11+RJ45 CAT6 socket is engineered for durability and long-term reliability. It operates efficiently across a temperature range of -5°C to 40°C, with storage capabilities from -10°C to 70°C. The device features IP20 protection rating and includes a central cover plate for professional aesthetics. Installation is straightforward with the slot system allowing perfect multigang configuration, where support frames can be seamlessly joined to facilitate rapid deployment in both new construction and retrofit applications.
Key Features
- Category 6 UTP supports data rates up to 1Gbps for rapid file transfers and seamless streaming
- Dual-port design combining RJ11 telephone and RJ45 data connectivity in single unit
- Flush-mounted installation with glossy white finish for seamless aesthetic integration
- Dual color coding and support for both 568A and 568B wiring schemes for error-free installation
- Tap-off functionality enables flexible network expansion and structured cabling integration
- High-rigidity plastic support frame with IK04 impact resistance for durability
- Halogen-free materials with recyclable paper packaging for eco-conscious installations
- Compatible with ECO2 mechanism for professional and sustainable solutions
- IP20 protection rating with central cover plate for professional appearance
- Compact dimensions (75.8mm x 75.8mm x 42mm) for standard electrical installations
Technical Specifications
| Specification |
Value |
| Product Type | RJ11+RJ45 Dual-Port Socket |
| Category | Category 6 UTP |
| Data Rate | Up to 1Gbps |
| Installation Type | Flush-mounted |
| Color | White (RAL 9003) |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 42 mm |
| Built-in Depth | 30 mm |
| IP Protection Rating | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature | -5°C to 40°C |
| Storage Temperature | -10°C to 70°C |
| Wiring Standards Supported | 568A and 568B |
| Halogen Free | Yes |
| Shielded Housing | No |
| Separate Earthing Connection | No |
| Dust Cover | No |
| Assembly Arrangement | Central cover plate |
| Outlet Direction | Straight |
| Mechanical Coding | No |
| Color Coding | Yes |
| Reference Number | NP492WH |
| EAN Code | 3414972626033 |
| Warranty | Professional Installation Warranty |
