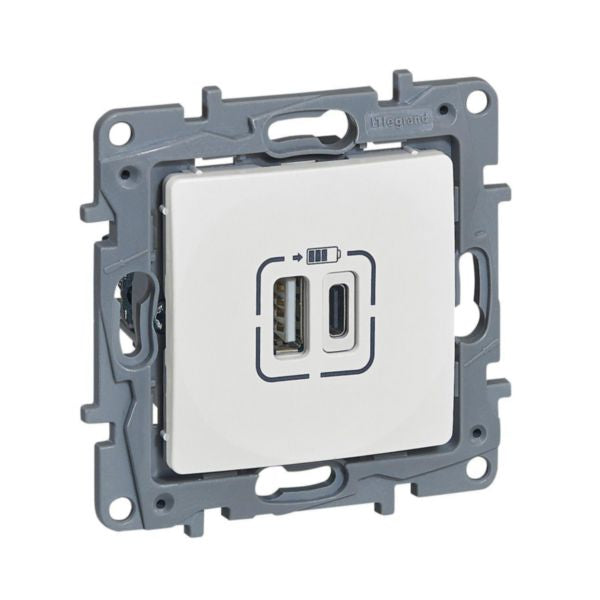

Shop Legrand Niloé Double USB Type-A + Type-C Charging Socket 2 Module White | 764597 In Iraq Best Prices
Modern dual USB charging outlet with Type A and Type C ports for fast smartphone and tablet charging. Features 15W power output, universal charger compatibility, and safe flush-mount installation in standard electrical boxes.
The Niloé Double USB Type A + Type C charging sockets represent a modern solution for simultaneous charging of multiple devices in residential and commercial settings. This 2-module outlet system combines both USB Type A and USB Type C ports in a single elegant white unit, featuring advanced charging capabilities with 5V output at 3A (15W maximum power). The device is specifically designed for fast charging of smartphones and tablet PCs, incorporating universal charger compatibility certified by USB-IF standards. With built-in surge protection exceeding 1 kV and exceptional power efficiency at Level VI, this outlet ensures safe and reliable charging while minimizing energy consumption in passive mode at less than 0.07W.
The Niloé charging sockets are engineered for flush-mounted installation in standard electrical boxes with a minimum depth of 40mm, providing a seamless integration into any interior design. The unit features secure screw terminal connections accommodating 1.5-2.5mm² cables, making it compatible with both flexible and rigid wiring systems. Construction meets Class II SELV safety standards and includes halogen-free materials, ensuring environmental compliance and user safety. The device operates reliably across international voltage standards (100-240V AC, 50-60Hz) and maintains optimal performance across a wide temperature range (-5 to 35°C operating, -20 to 70°C storage).
Installation is straightforward with supplied support frame and cover plate, utilizing either screw or claw fastening methods. The white finish (RAL 9003) with impact resistance rating of IK04 ensures durability and aesthetic appeal in modern homes and offices. Technical specifications include 2 USB ports (1x Type A + 1x Type C), IP40 degree of protection, and comprehensive terminal marking for safe installation. The product comes cordless and is ready for immediate installation, making it an ideal choice for upgrading existing electrical installations or new construction projects requiring modern multi-device charging capabilities.
Key Features
- Dual USB charging ports - 1x Type A and 1x Type C for simultaneous device charging
- Fast charging capability - 5V/3A (15W) output suitable for smartphones and tablets
- Universal charger compatibility certified by USB-IF standards
- Advanced surge protection exceeding 1 kV with minimal passive mode consumption
- Class II SELV safety certified with halogen-free construction
- Flush-mount installation in standard boxes with minimum 40mm depth
- International voltage compatibility - 100-240V AC, 50-60Hz operation
- White finish (RAL 9003) with IK04 impact resistance rating
- Secure screw terminal connections for 1.5-2.5mm² cables
- Wide operating temperature range -5 to 35°C with low power efficiency
Technical Specifications
| Specification |
Value |
| Product Type | Double USB Charging Socket - 2 Modules |
| Model/Series | Niloé (German & Italian Standards) |
| Reference Number | 764597 |
| EAN Code | 3414971268289 |
| USB Ports Configuration | 1x USB Type A + 1x USB Type C |
| Output Voltage | 5V DC |
| Maximum Output Current | 3000 mA (3A) |
| Maximum Power Output | 15W |
| Input Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption (Passive Mode) | 0.066W (less than 0.07W) |
| Surge Protection | Greater than 1 kV |
| Safety Certification | Class II SELV, USB-IF Certified |
| Connection Type | Screw Terminal |
| Terminal Capacity | 1.5-2.5 mm² (flexible or rigid cable) |
| Number of Terminals | 2 |
| Installation Method | Flush-mounted |
| Minimum Installation Box Depth | 40 mm |
| Built-in Depth | 32 mm |
| Device Width | 76 mm |
| Device Height | 76 mm |
| Device Depth | 42 mm |
| Color | White |
| RAL Color Code | RAL 9003 |
| Degree of Protection (IP) | IP40 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -20°C to +70°C |
| Material Composition | Halogen-free construction |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Power Delivery Support | No |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes |
| Supply Current Rating | 0.5A |
| Voltage Type | AC |
| Stress Test Conformity (1000V) | No |
| Standard Compliance | CEI 62680-1-3, USB-IF Certified |
| Mounting Hardware | Screws or claws (supplied) |
| Supplied Components | Support frame, cover plate, mounting hardware (cordless) |
