Premium dual USB Type A charging socket with 5V/3A output, advanced surge protection over 1kV, and Class II SELV safety design for modern residential and commercial applications

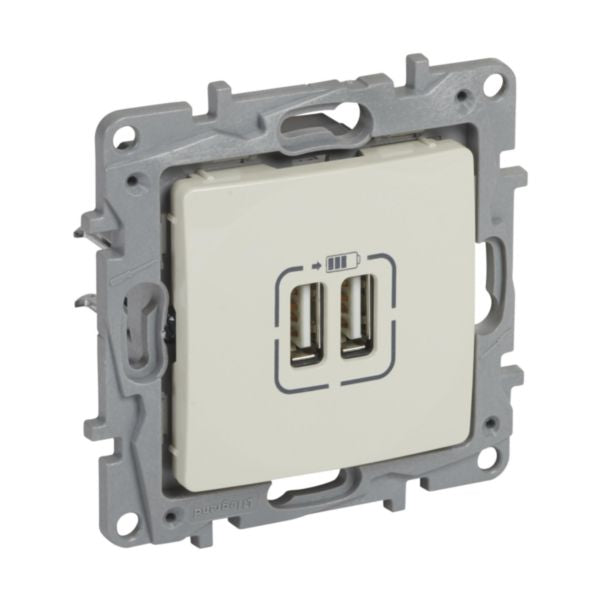

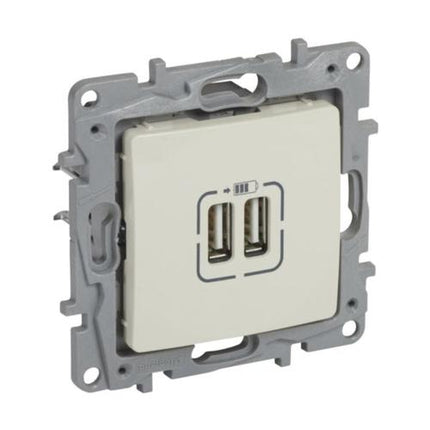

The Niloé Double USB Charging Socket in Ivory is a modern, high-performance charging solution designed for residential and commercial installations. This dual USB Type A charging socket provides fast and efficient power delivery for smartphones, tablets, and other portable devices. With its sleek ivory finish and compact design, it seamlessly integrates into contemporary interior spaces while maintaining professional aesthetics. The socket features advanced surge protection exceeding 1 kV, ensuring your devices remain safe from electrical fluctuations. Equipped with 5V/3A output per port and 12W total power capacity, it delivers reliable charging performance for multiple devices simultaneously.
The Niloé USB charging socket is engineered to meet international standards including IEC 62684-2011-01, guaranteeing compatibility and safety across various regions and applications. Its Class II SELV (Safety Extra Low Voltage) design eliminates the need for external grounding, simplifying installation in standard flush-mounting boxes with a minimum depth of 40mm. The socket includes a support frame and cover plate, with flexible mounting options using either screws or claws as supplied. The low power consumption in passive mode (less than 0.06W) demonstrates energy efficiency, while AC/DC efficiency reaches the highest Level VI rating.
Installation is straightforward with 2x2.5mm² screw terminals that accept flexible or rigid cables ranging from 1.5-2.5mm². The device operates reliably across standard AC voltage ranges (100-240V) and frequencies (50-60Hz), making it suitable for global applications. With an operating temperature range of 0-40°C and storage capability from -20-70°C, this charging socket maintains consistent performance in various environmental conditions. The halogen-free construction aligns with modern environmental and safety standards, making it an excellent choice for eco-conscious installations.
Key Features
- Dual USB Type A charging ports with 5V/3A output per port and 12W total power capacity
- Advanced surge protection exceeding 1kV ensures device safety from electrical fluctuations
- Class II SELV design eliminates need for external grounding, simplifying installation
- Energy-efficient with passive mode consumption below 0.06W and Level VI AC/DC efficiency rating
- IEC 62684-2011-01 compliant with international safety and compatibility standards
- Flexible mounting options with screws or claws for standard flush-mounting boxes
- Halogen-free construction aligns with modern environmental and safety regulations
- Wide operating voltage range 100-240V and frequency 50-60Hz for global applications
- Temperature stable operation from 0-40°C with storage capability -20-70°C
- Sleek ivory finish with modern aesthetic design for contemporary interiors
Technical Specifications
| Specification |
Value |
| Product Type | Double USB Charging Socket |
| Model/Range | Niloé (German & Italian Standards) |
| Number of USB Ports | 2x USB Type A |
| Output Voltage | 5V DC |
| Maximum Output Current | 3000 mA (3A) per port |
| Total Power Output | 12W |
| Input Voltage Range | 100-240V AC |
| Frequency Range | 50-60 Hz |
| Surge Protection | Greater than 1 kV |
| Passive Mode Power Consumption | Less than 0.06W |
| Safety Classification | Class II SELV (Safety Extra Low Voltage) |
| International Standard Compliance | IEC 62684-2011-01 |
| Number of Modules | 2 modules |
| Connection Type | Screwed terminals (2x2.5mm²) |
| Mounting Method | Flush-mounted |
| Minimum Installation Box Depth | 40mm |
| Built-in Depth | 32mm |
| Device Width | 76mm |
| Device Height | 76mm |
| Device Depth | 42mm |
| Color | Ivory (White) |
| RAL Number | 1013 |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 0-40°C |
| Storage Temperature Range | -20-70°C |
| Supply Current Range | 0.5A |
| Terminal Capacity | 1.5-2.5mm² |
| Cable Type | Flexible or rigid |
| Cable Section Range | 1.5-2.5mm² |
| Number of Terminals | 2 |
| Terminal Marking | Yes |
| Mandatory Neutral | Yes |
| Power Delivery Support | No |
| USB Output Power | 15W |
| AC/DC Efficiency Level | Level VI (Highest) |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Voltage Type | AC |
| Reference Number | 764694 |
| EAN Code | 3414970804808 |
| Mounting Options | Screws or claws (supplied) |
| Included Components | Support frame, cover plate, mounting hardware |
| Installation Configuration | Cordless (no power cord included) |
Order Legrand Niloé Double USB Charging Socket Ivory | 764694 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
