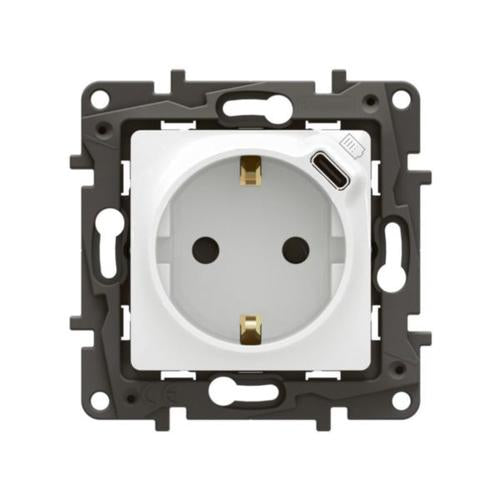

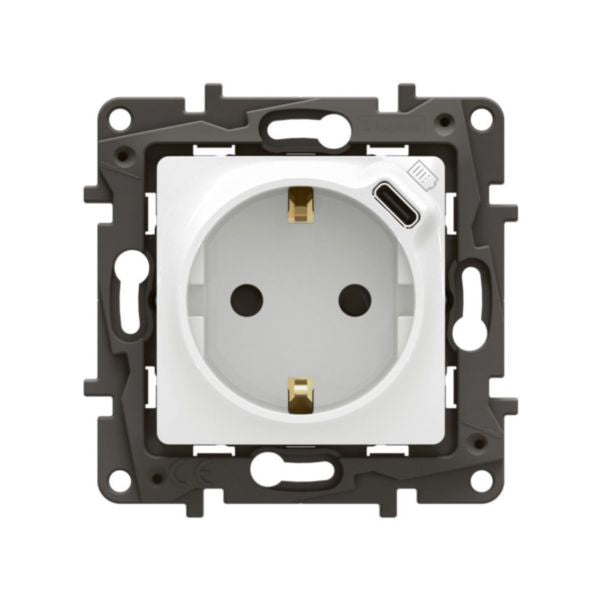

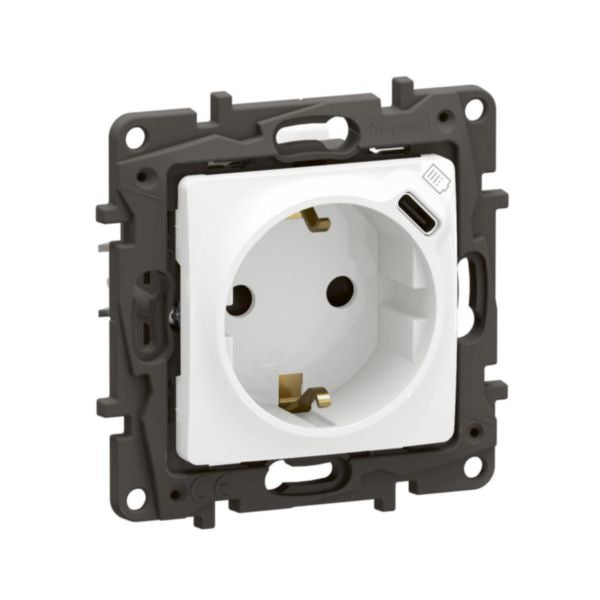

Shop Legrand Niloé Combined Socket Schuko 2P+E USB Type-C White 16A | NP3312WH In Iraq Best Prices
Modern combined socket with Schuko 2P+E outlet and USB Type-C charging port, featuring child protection, 16A 250V AC rating, 7.5W USB output, and flush-mounted thermoplastic design with IP20 protection for residential and commercial use.
The Niloé combined socket outlet represents a modern solution for contemporary electrical installations, seamlessly integrating a traditional Schuko 2P+E earthed socket with an advanced USB Type-C charging port. This innovative product eliminates the need for separate adapters or charging devices, allowing users to charge both conventional electrical devices and modern USB-powered equipment simultaneously from a single outlet. The socket features child protection shutters that automatically cover the electrical contacts when not in use, ensuring maximum safety for families with young children.
Designed for flush-mounted installation in standard electrical boxes, the Niloé socket maintains compatibility with existing wiring infrastructure without requiring any modifications or rewiring. The device features auto terminals with screwed connections supporting cable sections from 1.5 to 2.5mm², making installation straightforward for professional electricians. With a rated capacity of 16A at 250V AC and an impressive 7.5W USB output power, this socket provides reliable performance for both traditional and modern electrical needs. The thermoplastic construction with glossy white RAL 9003 finish ensures durability and aesthetic appeal, while the IK04 impact resistance rating and IP20 protection classification make it suitable for standard indoor residential and commercial environments.
The product's slot system design allows for perfect multigang configuration, enabling seamless integration with other Niloé elements to create comprehensive electrical solutions. Compatible with ECO2 mechanisms and supplied in recyclable paper packaging, the Niloé socket demonstrates Legrand's commitment to both functionality and environmental responsibility. Its claw and screw fastening system ensures secure installation, while the compact dimensions (75.8 x 75.8 x 44.4mm) maintain compatibility with standard European electrical boxes with a minimum built-in depth of 36mm.
Key Features
- Combined Schuko 2P+E socket outlet with integrated USB Type-C charging port for dual functionality
- Child protection shutters automatically cover electrical contacts for enhanced safety
- Auto terminals with screwed connections supporting 1.5-2.5mm² cable sections for easy installation
- 16A 250V AC rated capacity with 7.5W USB output power for reliable performance
- Flush-mounted thermoplastic construction with glossy white RAL 9003 finish and IK04 impact resistance
- IP20 protection classification suitable for standard indoor residential and commercial environments
- Slot system design enables perfect multigang configuration with other Niloé elements
- Compatible with ECO2 mechanisms and supplied in recyclable paper packaging
- Compact dimensions (75.8 x 75.8 x 44.4mm) maintain compatibility with standard European electrical boxes
- Claw and screw fastening system ensures secure and stable installation
Technical Specifications
| Specification |
Value |
| Product Model | Niloé Combined Socket Schuko 2P+E + USB Type-C |
| Reference Number | NP3312WH |
| EAN Code | 3414972625166 |
| Socket Type | Schuko 2P+E (CEE 7/3 Type F) with USB Type-C |
| Nominal Current | 16 Amperes |
| Nominal Voltage | 250V AC |
| Frequency Range | 50-119 Hz |
| USB Output Power | 7.5 Watts |
| Protection Degree (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 44.4 mm |
| Built-in Depth | 31.3 mm |
| Minimum Installation Box Depth | 36 mm |
| Material | Thermoplastic |
| Color | White (RAL 9003) |
| Surface Finishing | Glossy |
| Mounting Method | Flush-mounted |
| Fastening Type | Claw and screw mounting |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Section | 2.5-2.5 mm² |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -10°C to +70°C |
| Child Protection | Yes - Automatic shutters |
| Power Delivery Support | No |
| Smart Home Compatibility | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Packaging | Recyclable paper box |
| Warranty | Legrand standard warranty |
Order Legrand Niloé Combined Socket Schuko 2P+E USB Type-C White 16A | NP3312WH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
