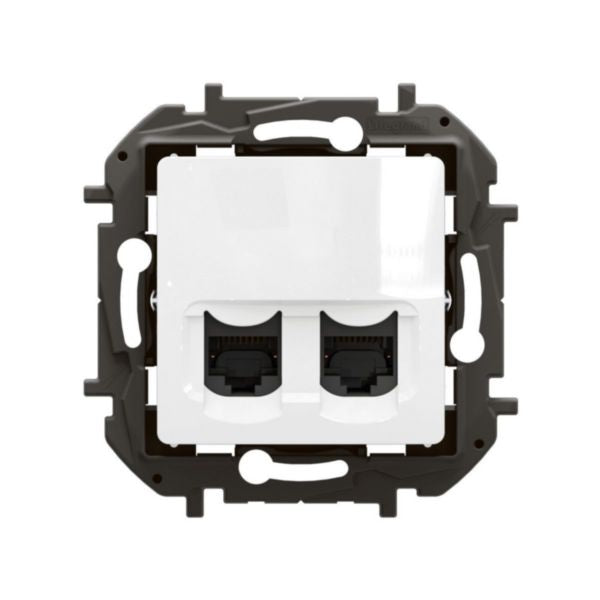

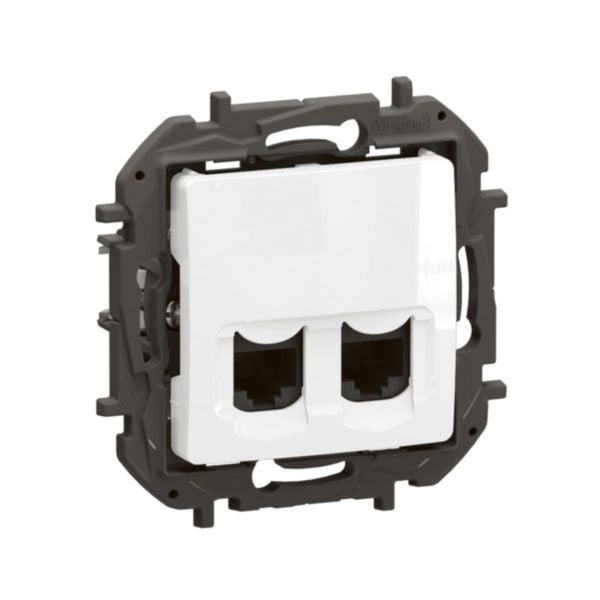

Shop Legrand Niloé 2x RJ45 Cat6A UTP Socket White Dual Port | NP4336WH In Iraq Best Prices
Professional dual RJ45 Cat6A UTP socket with 10Gbps capability, flush-mounted design, and PoE support for high-speed network connectivity in commercial and residential installations.
The Niloé double RJ45 socket is a professional-grade network connectivity solution designed for both commercial and residential installations. This flush-mounted socket features dual RJ45 8(8) ports with Category 6A UTP connectivity, supporting high-speed data rates up to 10Gbps, enabling transfer of a 1GB file in just 1 second. The socket is equipped with TIA 568A/B color-coded contacts that ensure standard-compliant wiring and facilitate easy installation during refurbishment projects.
With its robust rigid plastic support frame offering IK04 impact rating and high mechanical resistance, this Niloé socket provides reliable performance in demanding environments. The integrated mounting claws enable swift and secure installation in flush-mounted boxes, while the slot system allows perfect multigang setting for flexible configuration. The socket supports high-capacity PoE (Power over Ethernet) applications, delivering both power and data over twisted pair Ethernet cabling for efficient device connectivity.
The product comes with ECO2 mechanism compatibility and is supplied in a recyclable paper box, demonstrating commitment to sustainability. Its glossy white finish (RAL 9003) complements any modern interior, while the toolless connector design with fast connection through integrated crimping makes installation effortless for professionals. Compliant with ISO/IEC 11801 edition 3.0 (2017) standards, this socket is ideal for IP phones, analog phones, and applications requiring low latency such as downloads, streaming, and online gaming.
Key Features
- Dual RJ45 8(8) ports with Category 6A UTP connectivity supporting 10Gbps data transfer rates
- Flush-mounted design with central cover plate and integrated mounting claws for easy installation
- TIA 568A/B color-coded contacts ensuring standard-compliant wiring and professional installation
- High-capacity PoE support delivering power and data simultaneously over twisted pair Ethernet cabling
- Rigid plastic support frame with IK04 impact rating providing mechanical resistance and durability
- Toolless connector with fast integrated crimping for quick and effortless installation
- Slot system allowing perfect multigang setting for flexible configuration options
- ECO2 mechanism compatibility and recyclable paper packaging for environmental sustainability
- Glossy white finish (RAL 9003) complementing modern interior designs
- ISO/IEC 11801 edition 3.0 (2017) compliant for reliable network performance
Technical Specifications
| Specification |
Value |
| Product Type | Dual RJ45 Socket |
| Category | Category 6A (IEC) |
| Data Rate | 10 Gbps (10Gbit/s) |
| Connector Type | 2x RJ45 8(8) ports |
| Installation Type | Flush-mounted with central cover plate |
| Color | White (RAL 9003) |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 42 mm |
| Built-in Depth | 30 mm |
| Impact Strength Rating | IK04 |
| Degree of Protection | IP20 |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -10°C to +70°C |
| Cable Support | AWG22 to AWG26 single-core; AWG26 multicore cables |
| Shielding | Unshielded (UTP) |
| Mechanical Coding | No |
| Color Coding | Yes - TIA 568A/B |
| Halogen Free | Yes |
| Compliance Standards | ISO/IEC 11801 edition 3.0 (2017) |
| PoE Support | Yes - High-capacity Power over Ethernet |
| Mounting Method | Integrated mounting claws with slot system |
| Minimum Box Depth Required | 40 mm |
| Connector Design | Toolless with integrated crimping |
| Packaging | Recyclable paper box - ECO2 mechanism compatible |
Order Legrand Niloé 2x RJ45 Cat6A UTP Socket White Dual Port | NP4336WH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
