Shop Legrand Niloé 2xRJ45 Socket CAT6A UTP Black Dual Port | NP4336BK In Iraq Best Prices
Premium dual RJ45 CAT6A UTP socket with 10Gbps data rate, flush-mounted black design, PoE support, and toolless installation for high-speed network connectivity.

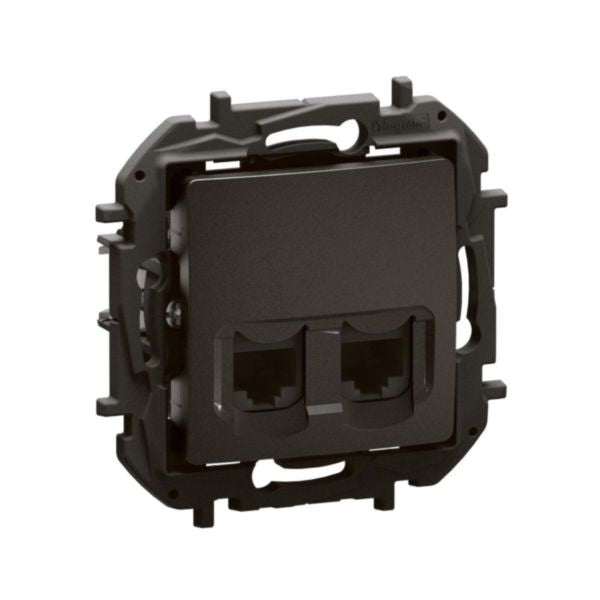

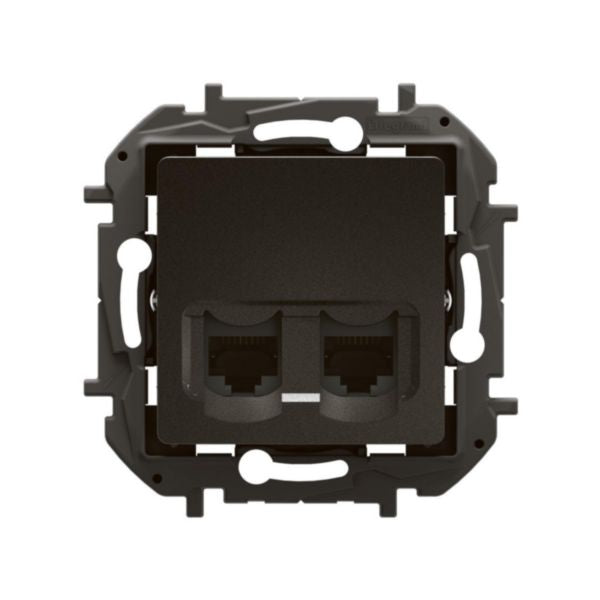

The Niloé double RJ45 socket represents a premium networking solution designed for high-speed local area network connectivity. This dual-port socket features Category 6A UTP (Unshielded Twisted Pair) technology, supporting data rates up to 10Gbps, enabling rapid file transfers and seamless streaming experiences. The flush-mounted design with elegant matte black finish integrates seamlessly into modern residential and commercial installations, providing robust performance for demanding network applications including PoE (Power over Ethernet) support.
This innovative socket combines professional-grade connectivity with user-friendly installation features. The toolless connector system with integrated crimping technology eliminates the need for specialized tools, while the slot system enables perfect multigang configurations. The plastic support frame delivers enhanced rigidity and impact resistance (IK04 rating), ensuring durability in challenging environments. Compatible with ECO2 mechanisms and supplied in recyclable packaging, this socket meets ISO/IEC 11801 edition 3.0 (2017) standards for reliable, standards-compliant network infrastructure.
Ideal for both commercial and residential applications, the Niloé RJ45 socket supports IP and analog phones while excelling in download-intensive, streaming, and online gaming scenarios requiring low latency. The matte black finishing provides aesthetic appeal, while the central cover plate ensures professional appearance. With a built-in depth of just 30mm, it fits standard electrical installation boxes (minimum 40mm depth), making retrofitting and refurbishment projects straightforward and efficient.
Key Features
- Category 6A UTP connectivity supporting 10Gbps data rates for ultra-fast network performance
- Dual RJ45 8(8) ports enabling simultaneous dual-network connections with central cover plate
- High-capacity PoE support delivering both power and data over single twisted pair cabling
- Flush-mounted design with matte black finish for seamless integration into modern spaces
- Toolless connector with integrated crimping technology for fast, easy installation without specialized tools
- Slot system enabling perfect multigang configurations and simplified installation in standard boxes
- Plastic support frame with IK04 impact resistance ensuring durability in demanding environments
- TIA 568A/B color-coded contacts for standard-compliant wiring and professional setup
- ECO2 compatible mechanism with recyclable packaging for sustainable installation practices
- ISO/IEC 11801 edition 3.0 (2017) compliant for reliable standards-based network infrastructure
Technical Specifications
| Specification |
Value |
| Product Type | Dual RJ45 Socket |
| Category | Category 6A (IEC) |
| Connector Type | 2x RJ45 8(8) ports |
| Data Rate | 10Gbps |
| Installation Type | Flush-mounted with central cover plate |
| Color | Matte Black |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 42 mm |
| Built-in Depth | 30 mm |
| Impact Strength Rating | IK04 |
| Degree of Protection | IP20 |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -10°C to +70°C |
| Shielded Housing | No |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| Dust Cover | No |
| Outlet Direction | Straight |
| Mechanical Coding | No |
| Color Coding | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Compatible with Third-party Covers | No |
| Separate Strain Relief | No |
| Cable Support | Not applicable |
| Standards Compliance | ISO/IEC 11801 edition 3.0 (2017) |
| Minimum Box Depth Required | 40 mm |
| Supported Cable Types | AWG22 to AWG26 single-core, AWG26 multicore |
| Use Environment | Indoor only |
| Reference Number | NP4336BK |
| EAN Code | 3414972625821 |
Order Legrand Niloé 2xRJ45 Socket CAT6A UTP Black Dual Port | NP4336BK at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
