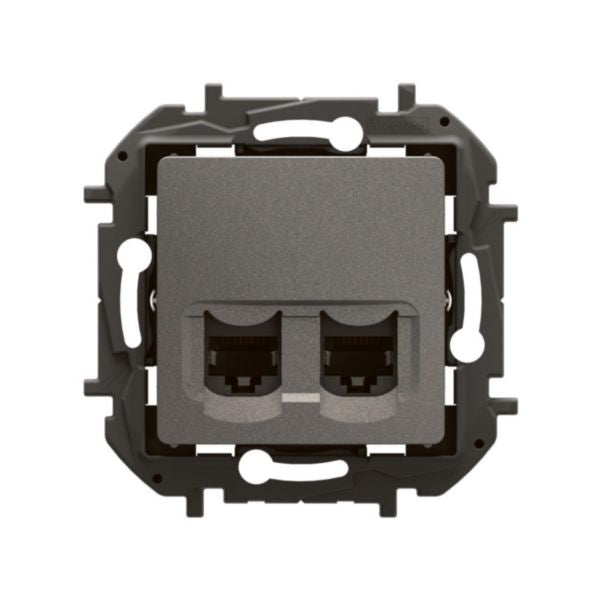

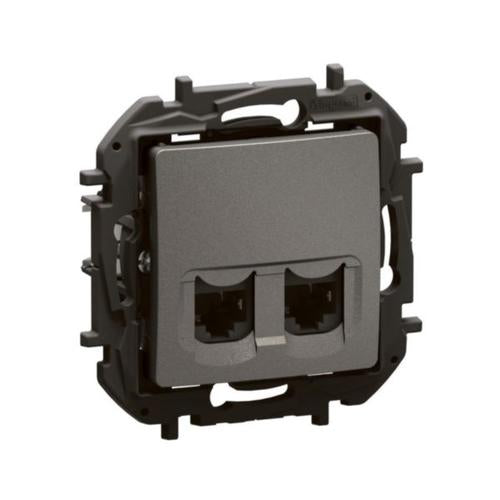

Shop Legrand Niloé 2xRJ45 Socket CAT6A STP Medium Grey Flush-mounted | NP4333MG In Iraq Best Prices
Premium Niloé Cat 6A dual RJ45 socket for high-speed network connectivity with flush-mounted installation, supporting 1Gbit/s data rates, PoE applications, and compliant with international standards.
The Niloé RJ45 socket by Legrand is a premium network connectivity solution featuring dual Cat 6A 2xRJ45 connectors designed for high-speed, secure data transmission. This flush-mounted installation socket supports data rates up to 1Gbit/s, enabling rapid file transfers such as downloading a 1GB file in just 8 seconds. The product is engineered with a robust plastic support frame offering high rigidity and IK04 impact resistance, making it ideal for both commercial and residential installations. The socket features TIA 568A/B color-coded contacts for standardized wiring, ensuring reliable and fully compliant network installations that meet international standards.
Designed with professional installation in mind, this Niloé socket incorporates a toolless connector with fast connection thanks to integrated crimping technology. It is compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, providing versatile connectivity options. The slot system allows for perfect and easy multigang setting, with support frames that can be seamlessly joined to ease installation. The socket can be installed in a normal flush mounting box without requiring additional wall groove cutting or complex cabling work, reducing installation time and costs.
The Niloé RJ45 Cat 6A socket supports high-capacity Power over Ethernet (PoE) applications, delivering both power and data over twisted pair Ethernet cabling for efficient device connectivity. Compliant with ISO/IEC 11801 edition 3.0 (2017) standards and featuring ECO2 mechanism compatibility, this product is supplied in a recyclable paper box, facilitating sustainable and environmentally conscious professional use. With its matte medium grey finishing and comprehensive technical specifications, this socket is suitable for commercial and residential installations, very suitable for downloads, streaming, or online games requiring low latency.
Key Features
- Cat 6A RJ45 connectors supporting data rates up to 1Gbit/s for rapid file transfers and downloads
- Dual 2xRJ45 configuration for flexible network connectivity and expanded port availability
- High-capacity Power over Ethernet (PoE) support delivering both power and data over single cable
- TIA 568A/B color-coded contacts ensuring standardized and compliant network installations
- Robust plastic support frame with IK04 impact resistance and high rigidity for durability
- Toolless connector with integrated crimping for fast and easy professional installation
- Slot system enabling perfect multigang setting with seamlessly joinable support frames
- Flush-mounted design requiring no additional wall groove cutting or complex cabling
- Matte medium grey finishing with elegant and professional appearance
- ISO/IEC 11801 edition 3.0 (2017) compliant for international standards adherence
- ECO2 mechanism compatible and supplied in recyclable paper box for sustainability
- Suitable for commercial, residential, streaming, gaming, and low-latency applications
Technical Specifications
| Specification |
Value |
| Product Name | Niloé 2xRJ45 Socket CAT6A STP Medium Grey |
| SKU | NP4333MG |
| EAN | 3414972773065 |
| Connector Type | 2x RJ45 8(8) |
| Category | 6A (IEC) |
| Installation Type | Flush-mounted |
| Data Rate Capacity | Up to 1Gbit/s |
| Assembly Arrangement | Central cover plate |
| Color | Medium Grey (Matte finish) |
| Device Width | 75.8 mm |
| Device Height | 75.8 mm |
| Device Depth | 42 mm |
| Built-in Depth | 30 mm |
| Impact Strength Rating | IK04 |
| Degree of Protection | IP20 |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -10°C to +70°C |
| Minimum Installation Box Depth | 40 mm |
| Compatible Cable Gauges | AWG22 to AWG26 (single-core), AWG26 (multicore) |
| Wiring Standard | TIA 568A/B color-coded |
| Compliance Standards | ISO/IEC 11801 edition 3.0 (2017) |
| Shielding | STP (Shielded Twisted Pair) |
| Halogen Free | Yes |
| Environmental Features | ECO2 mechanism compatible, recyclable paper box |
| Power over Ethernet Support | High-capacity PoE applications supported |
| Installation Method | Toolless connector with integrated crimping |
| Compatibility | RJ11, RJ12, and RJ45 plugs compatible |
| Mounting Method | Slot system for multigang configuration |
| Use Environment | Indoor use only |
| Brand | Legrand |
| Product Line | Niloé (German & Italian Standards) |
| Warranty | Standard manufacturer warranty included |
Order Legrand Niloé 2xRJ45 Socket CAT6A STP Medium Grey Flush-mounted | NP4333MG at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
