Shop Legrand Niloé 2P+E German Standard Socket Outlet White 16A | 764532 In Iraq Best Prices
Premium Niloé 2P+E German standard socket outlet with safety shutters, flap cover, and screw terminals. 16A/250V rated for residential and commercial applications.

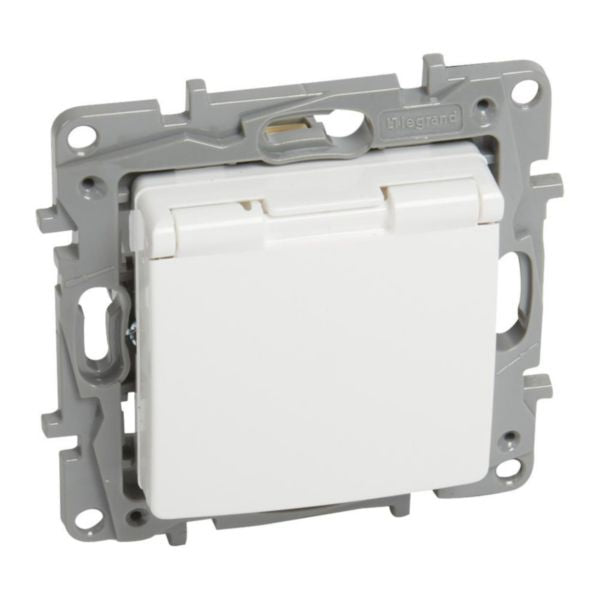

The Niloé 2P+E German standard socket outlet is a premium electrical outlet designed to meet German and Italian standard specifications. This flush-mounted socket outlet features enhanced contact protection with safety shutters and a flap cover for added security and durability. Manufactured in white thermoplastic material, it combines aesthetic appeal with functional excellence. The outlet is equipped with screw terminals for secure cable connections and supports flexible or rigid cables with cross-sections from 2.5 to 2.5 mm². Rated at 16A nominal current and 250V nominal voltage, this socket outlet operates seamlessly across 50-60 Hz frequencies.
The Niloé socket outlet is built with a loop-through function, allowing for daisy-chain installation in multi-outlet configurations. With an IP20 degree of protection and IK02 impact strength rating, it provides reliable performance in standard indoor environments. The device features a compact design with dimensions of 71mm width, 71mm height, and 31mm depth, making it suitable for both residential and commercial applications. The halogen-free plastic construction ensures environmental compliance and safety standards.
This socket outlet is supplied with cover plates and support frames, with mounting options using either screws or claws (supplied). The basic element design allows for flexible installation configurations, and it's compatible with the Niloé range of wiring devices. Operating temperature range of -5°C to 40°C ensures reliable performance across diverse climate conditions. The product meets RoHS compliance requirements and includes comprehensive technical documentation and certifications.
Key Features
- German and Italian standard compliance with safety shutters for enhanced protection
- Halogen-free thermoplastic material ensuring environmental and safety compliance
- Screw terminals supporting flexible or rigid cables (2.5-2.5 mm² cross-section)
- Loop-through function enabling daisy-chain installation in multi-outlet configurations
- IP20 degree of protection and IK02 impact strength for reliable indoor performance
- Compact flush-mounted design with 71x71x31mm dimensions
- 16A nominal current and 250V nominal voltage rated for 50-60 Hz operation
- Supplied with cover plates and support frames with screw or claw mounting options
Technical Specifications
| Specification |
Value |
| Product Type | Socket outlet with protective contact CEE 7/3 (type F) |
| Standard | German and Italian Standard (Niloé range) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Modules | 2 modules |
| Number of Socket Outlets | 1 |
| Material | Thermoplastic (Halogen-free) |
| Color | White (RAL 9003) |
| Connection Type | Screw terminals |
| Cable Section | 2.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with claw and screw (supplied) |
| Device Width | 71 mm |
| Device Height | 71 mm |
| Device Depth | 31 mm |
| Built-in Depth | 31 mm |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK02 |
| Safety Features | Enhanced contact protection with safety shutters and flap cover |
| Loop-through Function | Yes |
| Operating Temperature | -5°C to +40°C |
| Storage Temperature | -5°C to +40°C |
| Voltage Type | AC |
| Assembly Arrangement | Basic element with central cover plate |
| Compliance | RoHS compliant |
| Reference Number | 764532 |
| EAN Code | 3414970682611 |
