Shop Legrand Niloé 2P Socket Outlet with Shutters Screw Terminals White | 764538 In Iraq Best Prices
Premium 2P socket outlet with safety shutters, screw terminals, and white finish. 16A/250V rated with enhanced contact protection and loop-through capability for residential and commercial use.

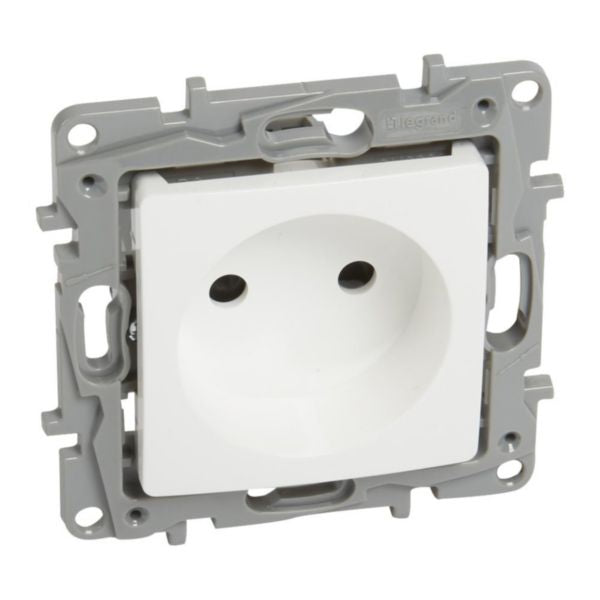

The Niloé™ 2P socket outlet with shutters is a premium electrical wiring device designed to meet German and Italian electrical standards. This high-quality socket outlet features enhanced contact protection with integrated safety shutters to prevent accidental contact with live parts. The mechanism comes equipped with a white cover plate and support frame, offering a sleek and modern aesthetic suitable for residential and commercial applications. With screw terminals for secure cable connections, this 2-module flush-mounted outlet provides reliable power distribution with a nominal current rating of 16A and voltage of 250V, operating at standard 50-60 Hz frequencies.
The socket outlet is manufactured from durable thermoplastic material that is halogen-free, making it environmentally friendly and safe for use in various indoor environments. The device features a loop-through function capability, allowing for convenient daisy-chaining of multiple outlets. It is compatible with flexible or rigid cables with a cross-section of 2.5mm², ensuring versatile installation options. The white finish (RAL 9003) provides a clean, professional appearance that complements modern interior designs. This product is IP20 rated for standard indoor use and has an IK02 impact strength rating, making it suitable for normal residential and light commercial installations.
The Niloé™ range represents Legrand's commitment to quality electrical infrastructure with products that combine functionality, safety, and aesthetic appeal. Each outlet undergoes rigorous quality testing to ensure compliance with international standards and regulations. The screw terminal connection method provides a secure, long-lasting electrical connection that maintains optimal performance over extended periods of use.
Key Features
- Enhanced contact protection with integrated safety shutters prevents accidental contact with live parts
- Screw terminals provide secure and reliable cable connections compatible with 2.5mm² flexible or rigid cables
- Loop-through function capability allows convenient daisy-chaining of multiple outlets
- Halogen-free thermoplastic material ensures environmental safety and durability
- White finish (RAL 9003) provides modern aesthetic appeal suitable for residential and commercial applications
Technical Specifications
| Specification |
Value |
| Model | Niloé 2P Socket Outlet |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Material | Halogen-free thermoplastic |
| Number of Modules | 2 |
| Connection Type | Screw terminals |
| Cable Section | 2.5-2.5 mm² |
| Device Dimensions (W×H×D) | 71 mm × 71 mm × 31 mm |
| Built-in Depth | 31 mm |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with claw and screw |
| Protection Degree (IP) | IP20 |
| Impact Strength (IK) | IK02 |
| Colour | White (RAL 9003) |
| Protective Contact | None |
| Number of Active Contacts | 2 (round) |
| Safety Shutters | Yes |
| Operating Temperature Range | -5 to 40 °C |
| Storage Temperature Range | -5 to 40 °C |
| Voltage Type | AC |
| Loop Through Function | Yes |
| Surface Finishing | Glossy |
| SKU | 764538 |
| EAN Code | 3414970682499 |
Order Legrand Niloé 2P Socket Outlet with Shutters Screw Terminals White | 764538 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
