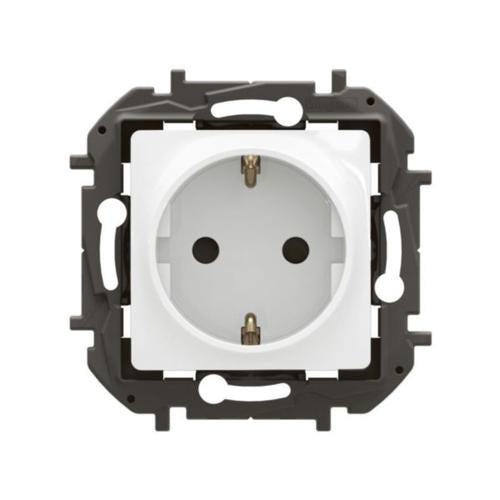

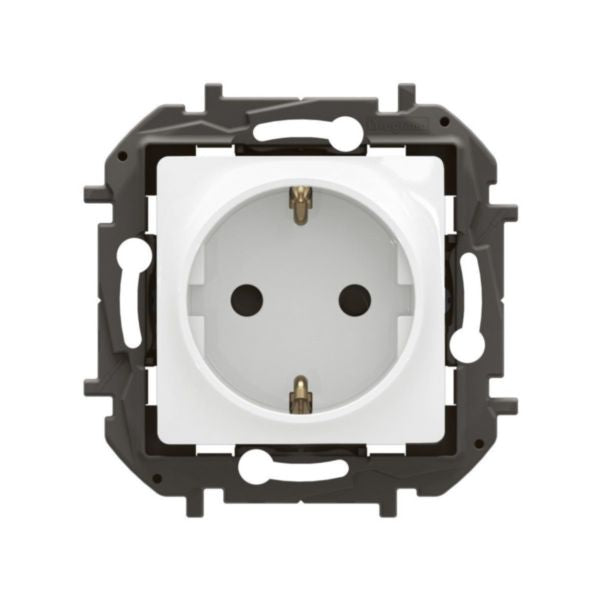

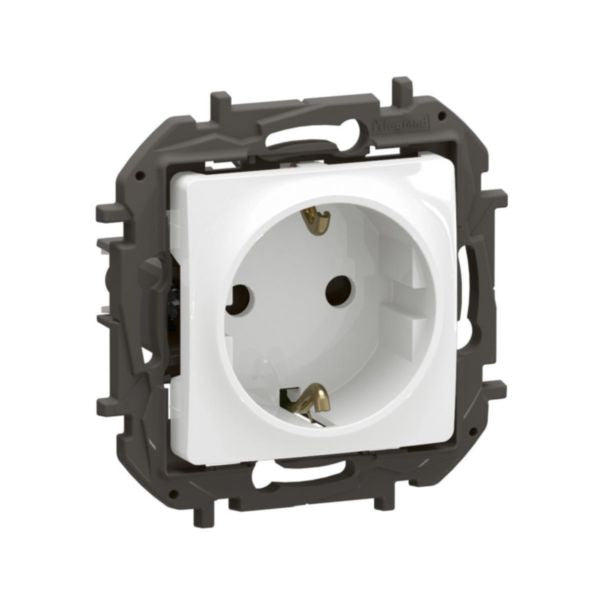

Shop Legrand Niloé 2P+E SCH Socket with Shutters Auto White 16A | NP3120WH In Iraq Best Prices
Premium 16A 250V AC flush-mounted earthed socket outlet with secure 2P+E shutters, automatic terminals, thermoplastic construction, glossy white finish, and push-in clamp connection for reliable indoor electrical installations.
The Niloé earthed socket outlet is a premium flush-mounted electrical device designed for residential and commercial indoor applications. This 2P+E SCH socket outlet features secure protective shutters with automatic terminals, providing enhanced safety and reliability for everyday use. Constructed from high-resistance thermoplastic material, the Niloé socket combines durability with aesthetic appeal, offering a glossy white finish (RAL 9003) that complements modern interior designs.
This socket outlet is rated for 16A at 250V AC and utilizes push-in clamp connection technology that supports 2.5mm² conductors, ensuring rapid and secure installation. The device features IP20 and IK04 protection ratings, making it suitable for standard indoor environments while providing reliable impact resistance. The slot system allows for perfect multigang setting, with support frames that can be easily joined together for efficient installation in residential and commercial settings.
The Niloé socket outlet comes with a central cover plate and is compatible with ECO2 mechanisms, supplied in recyclable paper packaging for environmentally conscious professionals. With a built-in depth of 30.2mm and device dimensions of 75.8mm x 75.8mm x 43mm, this socket outlet integrates seamlessly into standard installation boxes. The operating temperature range of -5 to 40°C ensures reliable performance across various climatic conditions, making it an ideal choice for modern electrical installations.
Key Features
- Secure 2P+E SCH protective shutters with automatic terminals for enhanced safety
- High-resistance thermoplastic construction ensuring optimal rigidity and durability
- Push-in clamp connection supporting 2.5mm² conductors for rapid secure installation
- Glossy white finish (RAL 9003) with IP20 and IK04 protection ratings
- Flush-mounted design with central cover plate compatible with ECO2 mechanism
- Slot system allows perfect multigang setting with easily joined support frames
- Supplied in recyclable paper box for eco-friendly professional use
- Operating temperature range -5 to 40°C for reliable performance across climates
Technical Specifications
| Specification |
Value |
| Product Model | Socket outlet with protective contact CEE 7/3 (type F) |
| Socket Configuration | 2P+E SCH with central cover plate |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V AC |
| Frequency Range | 50-92 Hz |
| Connection Type | Push-in clamp connection |
| Conductor Size | 2.5 mm² |
| Material | High-resistance thermoplastic |
| Color | Glossy white (RAL 9003) |
| Mounting Method | Flush-mounted |
| Device Dimensions | 75.8 mm (W) × 75.8 mm (H) × 43 mm (D) |
| Built-in Depth | 30.2 mm |
| Minimum Installation Box Depth | 35 mm |
| Protection Rating (IP) | IP20 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | -5 to 40 °C |
| Storage Temperature Range | -10 to 70 °C |
| Fastening Type | Mounting with claw and screw |
| Surface Protection | Untreated |
| Antimicrobial Treatment | No |
| USB Ports | None |
| Smart Home Compatibility | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Packaging | Recyclable paper box |
| Reference Number | NP3120WH |
| EAN Code | 3414972636414 |
Order Legrand Niloé 2P+E SCH Socket with Shutters Auto White 16A | NP3120WH at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
