Professional multi-gas detector with simultaneous detection of LEL, NO2, CO, and H2S. Features MotionAlert safety technology, integrated pump, robust polycarbonate housing, and comprehensive international certifications for confined space applications.

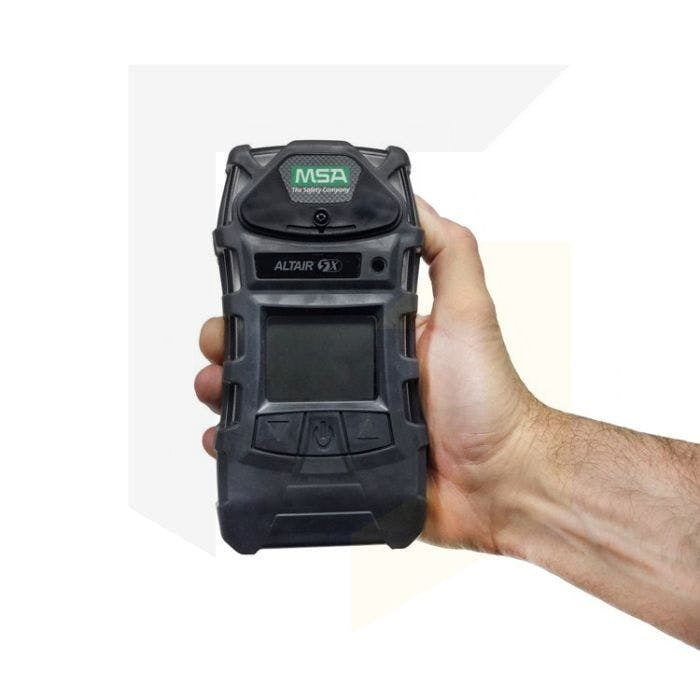

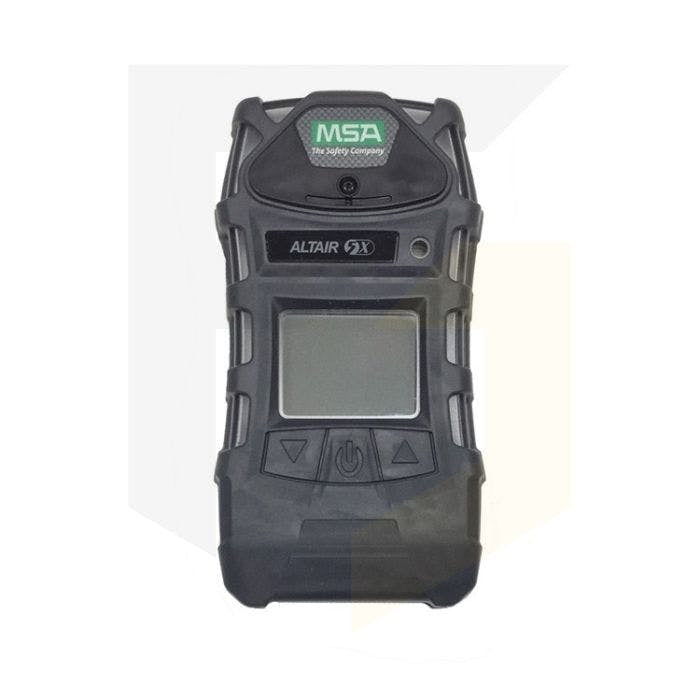

The MSA ALTAIR 5X is a professional-grade multi-gas detector designed for hazardous confined space applications and industrial safety monitoring. This robust portable gas detection instrument simultaneously detects up to six different gases including combustible gases (LEL calibrated to pentane), Nitrogen Dioxide (NO2), Carbon Monoxide (CO), and Hydrogen Sulphide (H2S). The detector features a monochrome display with adjustable back-lit functionality and integrated datalogging capabilities with a minimum 200-hour recording capacity.
Engineered with durability and user convenience in mind, the ALTAIR 5X features a polycarbonate robust housing that has been tested to survive a 10-foot drop. The device includes an integrated pump function, eliminating the need for external accessories, and features glove-friendly buttons for easy operation in protective equipment. The detector is fully compatible with MSA Galaxy GX2 and MSA Link Pro systems, making it an excellent choice for fleet management and centralized monitoring.
Innovative safety features include MotionAlert technology that activates when a user becomes disabled or motionless to alert others of their location, and InstantAlert functionality allowing manual alerts during hazardous situations. With support for 18 languages, rechargeable lithium-ion or AA alkaline battery options, and comprehensive international certifications including ATEX, IECEx, and CSA approval, the ALTAIR 5X is the ideal solution for confined space work, emergency response, and industrial hazard detection.
Key Features
- Simultaneous detection of up to six gases including LEL, NO2, CO, and H2S
- MotionAlert technology automatically alerts others when user becomes disabled or motionless
- InstantAlert manual alert function for hazardous situation notification
- Integrated pump function eliminates need for external accessories
- Polycarbonate robust housing tested to survive 10-foot drop
- Glove-friendly buttons for easy operation with protective equipment
- Adjustable back-lit monochrome display with 200+ hour datalogging
- Event log records up to 1000 events as standard
- Fully compatible with MSA Galaxy GX2 and MSA Link Pro systems
- Support for 18 languages for global workforce compatibility
Technical Specifications
| Specification |
Value |
| Gas Detection Range - LEL | 0 to 100% LEL (calibrated to pentane) |
| Gas Detection Range - NO2 | 0 to 20 ppm |
| Gas Detection Range - CO | 0 to 2000 ppm |
| Gas Detection Range - H2S | 0 to 200 ppm |
| Resolution - LEL | 1% LEL |
| Resolution - NO2 | 0.1 ppm |
| Resolution - CO | 1 ppm |
| Resolution - H2S | 1 ppm |
| Dimensions | 6.69 inches x 3.49 inches x 1.79 inches (169.7mm x 88.6mm x 45.5mm) |
| Weight | 1 lb (approximately 454 grams) without IR sensor |
| Alarm Types | Audible (>95 dB at 1 foot), Vibration, Visual (2 ultra-bright LEDs) |
| Battery Type | Rechargeable lithium-ion or AA alkaline |
| Battery Runtime | 20 hours at room temperature |
| Charging Time | Less than 6 hours |
| Operating Temperature | -20°C to +50°C; -40°C to +50°C for short period operation |
| Operating Humidity | 15% to 90% RH non-condensing |
| IP Rating | IP-65 (dust and water resistant) |
| Display Type | Monochrome with adjustable back-lit display |
| Data Logging Capacity | Minimum 200 hours |
| Event Log Capacity | 1000 events |
| Standard Warranty | 3 years including CO/H2S/LEL/O2/SO2/IR Sensors; 2 years including NH3 and Cl2; 1 year for other sensors |
| Certifications | USA/Canada ETL, Canada CSA, ATEX Directive 94/9/EC, ANZEx Australia/New Zealand, IECEx, ISO9001, UL, EU, Marine (DGUV) |

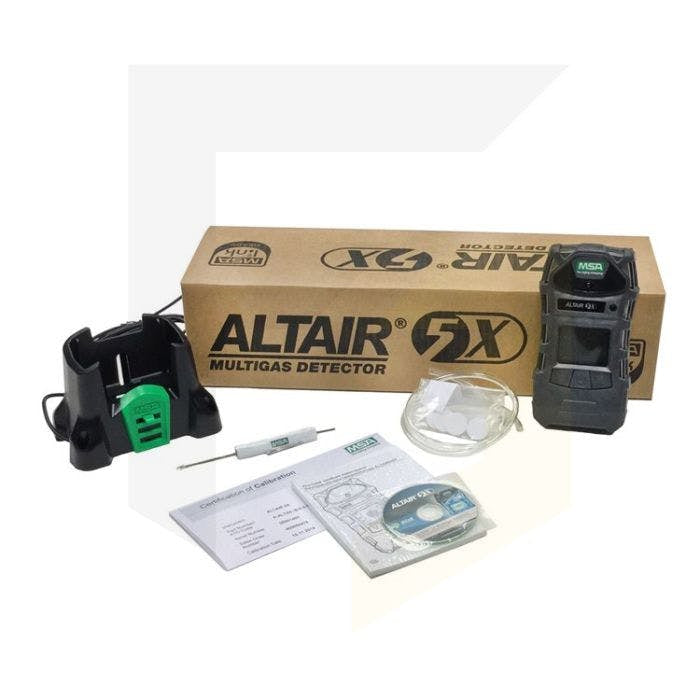

| Included Accessories | Altair 5X Detector, Charging cradle, Instruction manual, Calibration certificate, Tubing, Filters, Screwdriver |
| Supported Languages | 18 languages |
| Pump Function | Integrated (no external accessories required) |
Order MSA ALTAIR 5X Mono Multi Gas Detector LEL NO2 CO H2S at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
