Shop Legrand MPX3 Auxiliary Contact 2NO Motor Circuit Breaker Front Mounting | 417404 In Iraq Best Prices
2NO auxiliary contact for MPX3 motor circuit breaker with front clip-on mounting, AC-15 4A/240V and DC-13 1A/24V ratings, screw terminals 0.5-2.5mm², compatible with MPX3 32S/H/MA, 63H, and 100H breakers.

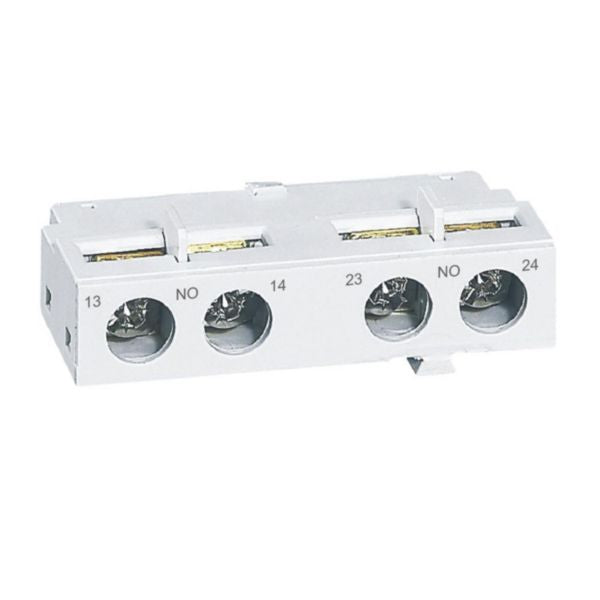

The MPX³ Auxiliary Contact 2NO (REF. 417404) is a specialized electrical auxiliary device designed for motor circuit breaker applications. This front-mounted auxiliary contact unit provides reliable 2NO (Normally Open) status indication with AC-15 rated at 4A/240V and DC-13 rated at 1A/24V. The device features screw terminals with capacity ranging from 0.5mm² to 2.5mm², ensuring secure and versatile wiring connections for various installation requirements.
This auxiliary contact is specifically engineered for seamless integration with MPX³ series motor circuit breakers, including models 32S/H/MA, 63H, and 100H. The clip-on front fastening design allows for quick and efficient installation without requiring complex modifications to existing breaker setups. With an rated operation current of 3A at AC-15 230V, this auxiliary provides reliable performance in tertiary and industrial applications.
The device complies with substance-restriction requirements and has been designed through an environmentally conscious manufacturing process. The screw terminal connections ensure reliable electrical continuity, while the robust construction guarantees long-term durability in demanding industrial environments. This auxiliary contact is essential for applications requiring motor status monitoring and control signaling in three-phase asynchronous motor protection systems.
Key Features
- 2NO (Normally Open) auxiliary contact configuration for reliable status indication
- Front clip-on mounting design for quick and easy installation without complex modifications
- AC-15 rated at 4A/240V and DC-13 rated at 1A/24V for versatile electrical applications
- Screw terminal connections with 0.5mm² to 2.5mm² capacity for secure wiring
- Compatible with MPX3 series breakers (32S/H/MA, 63H, 100H models)
- Rated operation current of 3A at AC-15 230V for reliable industrial performance
- Environmentally conscious design complying with substance-restriction requirements
- Designed for tertiary and industrial motor protection applications
Technical Specifications
| Specification |
Value |
| Product Reference | 417404 |
| EAN Code | 3414970396457 |
| Number of Contacts (Normally Open) | 2 |
| Number of Contacts (Change-over) | 0 |
| Number of Contacts (Normally Closed) | 0 |
| AC-15 Rated Current | 4A at 240V |
| DC-13 Rated Current | 1A at 24V, 0.1A at 220V |
| Rated Operation Current (Ie) AC-15 | 3A at 230V |
| Thermal Current (Ith) | 5A at 40°C / 3A at 60°C |
| Terminal Type | Screw connection |
| Terminal Capacity | 0.5mm² to 2.5mm² |
| Mounting Method | Front clip-on fastening |
| Model Type | Clip-on |
| Compatible Breakers | MPX3 32S/H/MA, MPX3 63H, MPX3 100H |
| Application | Motor circuit breaker auxiliary contact for 3-phase asynchronous motors |
| Environmental Compliance | Complies with substance-restriction requirements and RoHS Directive |
| Installation Type | Tertiary and industrial installations |
