Mosaic USB socket with dual Type-A ports delivering 3A at 15W for efficient charging of multiple devices. Features aluminum design, IP40 protection, and IEC 62684:2018 compliance with minimal standby power consumption.

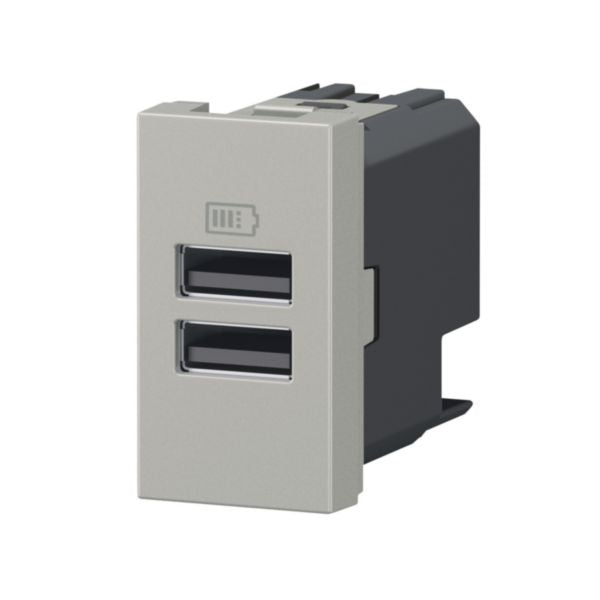

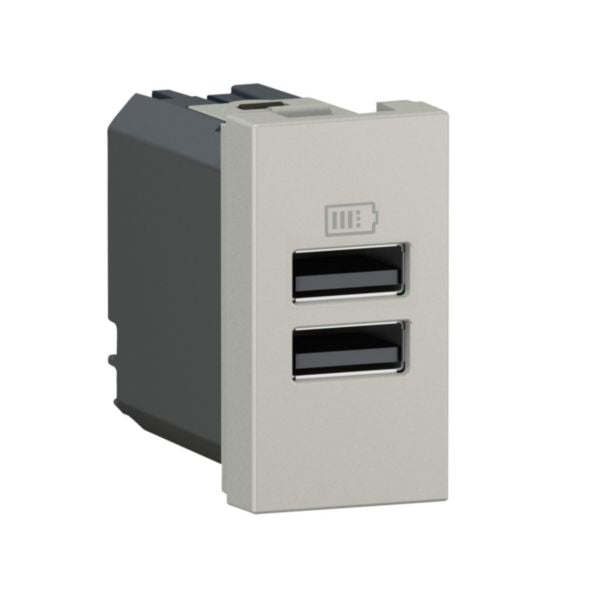

The Mosaic™ 1 module USB socket with dual USB Type-A ports is a premium charging solution designed for modern residential and commercial installations. This compact, space-saving device delivers up to 3A output at 15W power, making it ideal for simultaneously charging multiple portable devices such as smartphones, tablets, and power banks. The socket features a sleek aluminum finish in RAL 7040 color, providing a contemporary aesthetic that complements any interior design. With its flush-mounted installation capability and secure screwed terminal connections, this USB socket offers both functionality and elegant design.
This USB charging socket is engineered to meet international standards including IEC 62684:2018 compliance, ensuring safe and reliable charging for all compatible devices. The socket features minimal standby power consumption of just 0.1W, contributing to energy efficiency in modern homes and offices. Its compact 1-module format maximizes space utilization while maintaining full functionality. The device operates on standard AC voltage (100-240V, 50-60Hz), making it compatible with global electrical standards. The aluminum construction provides durability and a premium feel, while the IP40 protection rating ensures adequate protection against dust and moisture for indoor use.
Installation is quick and straightforward, requiring only basic electrical knowledge and standard tools. The device comes with flexible terminal connections accepting cable sections from 1.5-2.5mm², providing compatibility with standard residential wiring. The IK04 impact resistance rating ensures the socket can withstand normal household use and minor impacts. With no halogen content in its construction, this product meets modern environmental and safety standards. The Mosaic USB socket represents the perfect balance between style, functionality, and reliability for contemporary electrical installations.
Key Features
- Dual USB Type-A ports for simultaneous charging of two devices
- Compact 1-module design for space-saving installation
- 3A output power at 15W for optimal device charging
- Ultra-low standby power consumption of 0.1W
- Aluminum construction with premium RAL 7040 finish
- IEC 62684:2018 compliant for safe international charging
- IP40 protection rating for dust and moisture resistance
- IK04 impact resistance for durability
- Halogen-free construction meeting environmental standards
- Quick and easy flush-mounted installation
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic™ 1 Module USB Two Ports A+A 3A 15W Aluminum |
| Reference Number | 077661L |
| EAN Code | 3414972242776 |
| Number of Modules | 1 |
| USB Port Type | 2x USB Type-A |
| Operating Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage | 5V |
| Power Output | 15W |
| Power Consumption | 0.083W operating, 0.1W standby |
| Connection Type | Screwed Terminal |
| Mounting Method | Flush-mounted |
| Color | Aluminum |
| RAL Color Number | RAL 7040 |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Built-in Depth | 32.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Protection Rating (IP) | IP40 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | 5-35°C |
| Storage Temperature Range | -20-70°C |
| Supply Current | 0.5A |
| Voltage Type | AC |
| Power Delivery Support | No |
| Wireless Capability | No |
| Antimicrobial Treatment | No |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes |
| Halogen Free | Yes |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Section | 1.5-2.5 mm² |
| Cable Type | Flexible or Rigid |
| Compliance Standard | IEC 62684:2018 |
| Suitable for Degree of Protection | IP40 |
| Intended Use | Indoor use only |
| Brand | Legrand |
| Product Category | Wiring Devices - USB Sockets |
