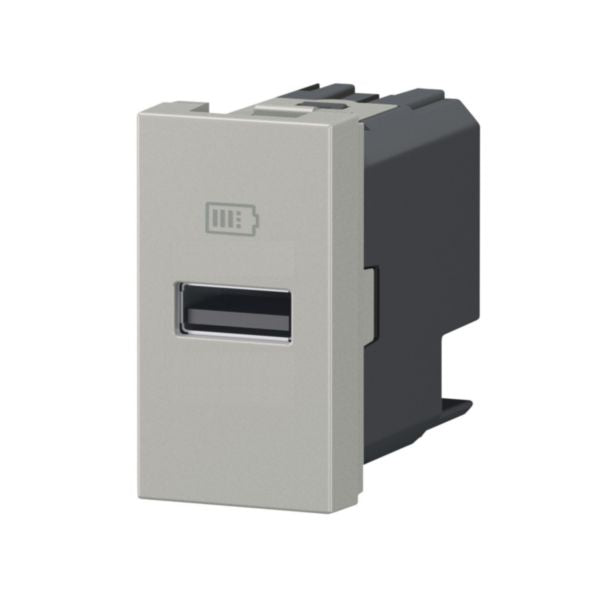

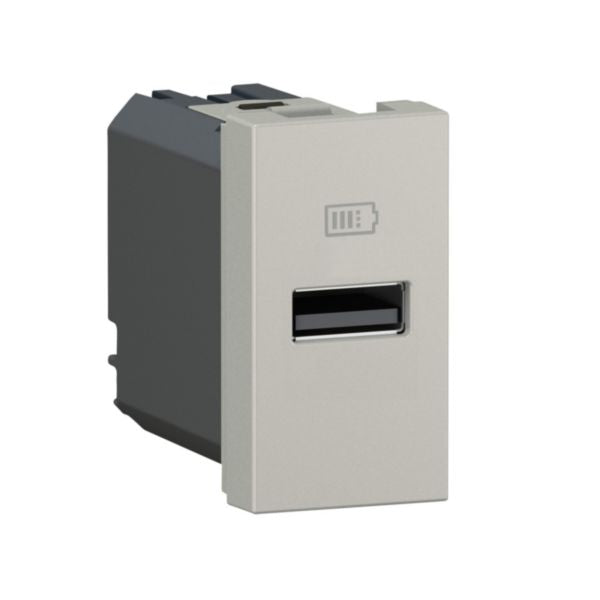

Shop Legrand Mosaic USB Single Port Type-A 3A 15W Aluminium Socket | 077651L In Iraq Best Prices
Compact 1-module USB Type-A charging socket with 3A/15W output, aluminum finish, IP40 rated, IEC 62684:2018 compliant for smartphones and tablets
The Mosaic™ 1 module USB single port type A socket is a compact and efficient charging solution designed for modern homes and buildings. This flush-mounted USB socket features a single USB Type-A port with a maximum output of 3A at 5V, delivering 15W of power for optimal charging of portable devices including smartphones, tablets, and power banks. The aluminum finish in RAL 7040 color provides a sleek, contemporary aesthetic that complements any interior design.
This USB socket is engineered for reliability and safety, conforming to IEC 62684:2018 standards and featuring a low standby power consumption of just 0.1W. The device operates on standard AC voltage (100-240V, 50-60Hz) and is suitable for indoor use only. With its compact 1-module design, it maximizes space efficiency while maintaining full functionality. The socket features a screwed terminal connection with capacity for flexible or rigid cables ranging from 1.5-2.5mm², making installation straightforward for electricians and building professionals.
The Mosaic USB socket is IP40 rated for dust and moisture protection, with an IK04 impact resistance rating suitable for residential and small commercial applications. Built-in depth of 32.5mm ensures compatibility with standard flush-mounted installation boxes with minimum 40mm depth. The halogen-free construction and antimicrobial treatment options make this an environmentally responsible choice for modern electrical installations.
Key Features
- Single USB Type-A port with 3A maximum output current
- 15W power output for optimal charging of portable devices
- Low standby power consumption of 0.1W for energy efficiency
- Compact 1-module design for space-saving installation
- IEC 62684:2018 compliant for international safety standards
- IP40 rated for dust and moisture protection
- IK04 impact resistance for durability
- Aluminum finish in RAL 7040 color for modern aesthetics
- Screwed terminal connection with 1.5-2.5mm² cable capacity
- Flush-mounted installation for seamless wall integration
Technical Specifications
| Specification |
Value |
| Product Reference | 077651L |
| EAN Code | 3414972242431 |
| Brand | Legrand |
| Series | Mosaic™ |
| Number of USB-A Ports | 1 |
| Number of USB-C Ports | 0 |
| Operating Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage | 5V |
| USB Output Power | 15W |
| Power Consumption | 0.069W (Standby: 0.1W) |
| Connection Type | Screwed Terminal |
| Mounting Method | Flush-mounted |
| Color | Aluminum |
| RAL Number | 7040 |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Built-in Depth | 32.5 mm |
| Minimum Installation Box Depth | 40 mm |
| IP Rating | IP40 |
| IK Rating | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Power Delivery Support | No |
| Antimicrobial Treatment | No |
| Wireless Function | No |
| Halogen Free | Yes |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or Rigid |
| Cable Section Range | 1.5-2.5 mm² |
| Terminal Marking | Yes |
| Mandatory Neutral | Yes |
| Conformity Standards | IEC 62684:2018 |
| Supply Current | 0.5A |
| Stress Test Conformity (1000V) | No |
| Suitable for Indoor Use | Yes |
