Shop Legrand Mosaic USB-Link Charger Type A+C 3A 15W Black | 079193L In Iraq Best Prices

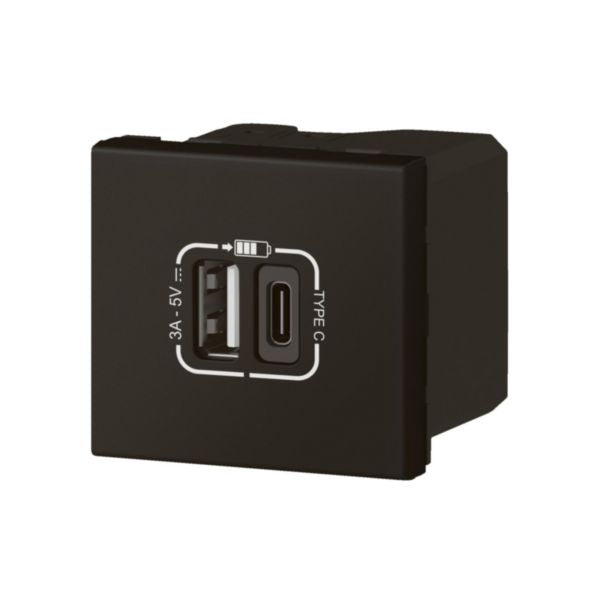

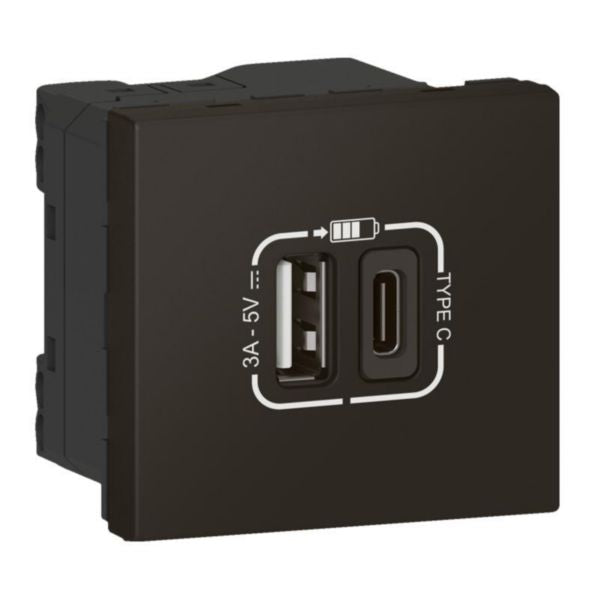

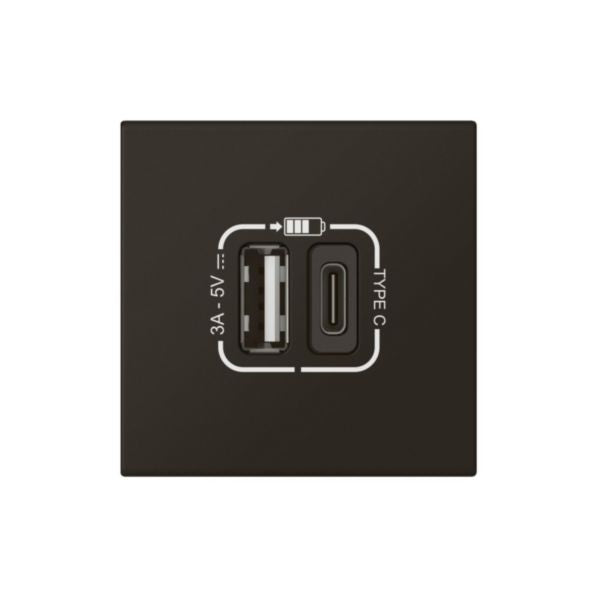

Dual USB charging port (Type A+C) with 3.0A output and 15W power delivery. Flush-mounted black matte finish design for modern interiors. Features IP40 protection, halogen-free construction, and secure screwed terminal connections.
The Mosaic™ USB-Link Charger Type A+C 3.0A 15W is a modern dual-port charging solution designed for contemporary living spaces. This flush-mounted device combines both USB Type-A and USB Type-C ports in a single elegant unit, providing versatile charging capabilities for multiple devices simultaneously. With a maximum output current of 3000mA and 15W power delivery, it efficiently charges smartphones, tablets, and other USB-compatible devices.
This charging socket features a sleek matte black finish that complements any interior design. The device operates on standard AC voltage (100-240V, 50-60Hz) and includes integrated safety features including halogen-free construction and IP40 protection rating. The compact 2-module design allows for easy installation in standard flush-mounted boxes with a minimum depth of 40mm, making it suitable for both residential and small commercial applications.
The Mosaic™ USB-Link Charger is built to Legrand's high standards of quality and reliability, featuring screwed terminal connections for secure installation and terminal marking indication for easy identification. With operating temperatures ranging from 5-35°C and storage capabilities from -20-70°C, this device maintains consistent performance across various environmental conditions. The IK04 impact resistance rating ensures durability in everyday use, while the halogen-free composition demonstrates environmental responsibility.
Key Features
- Dual USB ports: Type-A and Type-C for versatile device charging
- High-speed charging: 3.0A output current with 15W power delivery
- Wide voltage compatibility: 100-240V AC, 50-60Hz universal input
- Flush-mounted design: Compact 2-module system for standard installation boxes
- Premium safety features: IP40 protection, IK04 impact resistance, halogen-free
Technical Specifications
| Specification |
Value |
| Brand | Legrand |
| Product Line | Mosaic™ |
| Reference Number | 079193L |
| EAN Code | 3414971579415 |
| Number of Modules | 2 |
| USB Port Configuration | 1x USB-A + 1x USB-C |
| Maximum Output Current | 3000 mA (3.0A) |
| Output Voltage | 5V |
| Power Consumption | 15W |
| Input Voltage Range | 100-240V AC |
| Frequency | 50-60 Hz |
| Connection Type | Screwed Terminal |
| Mounting Method | Flush-mounted |
| Color | Matte Black |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Minimum Installation Box Depth | 40 mm |
| Built-in Depth | 32.5 mm |
| Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-35°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Power Delivery Support | No |
| Halogen Free | Yes |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or Rigid |
| Cable Section | 1.5-2.5 mm² |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
