Description

Shop Legrand Mosaic USB-Link Charger Type A+C 3A 15W White | 077570L In Iraq Best Prices

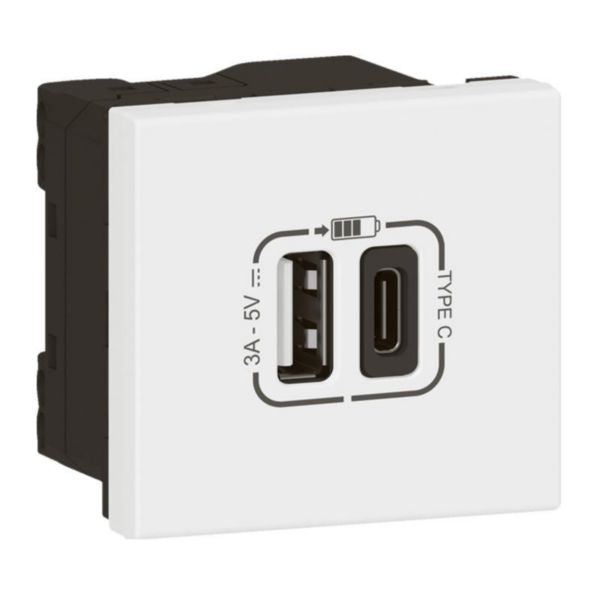

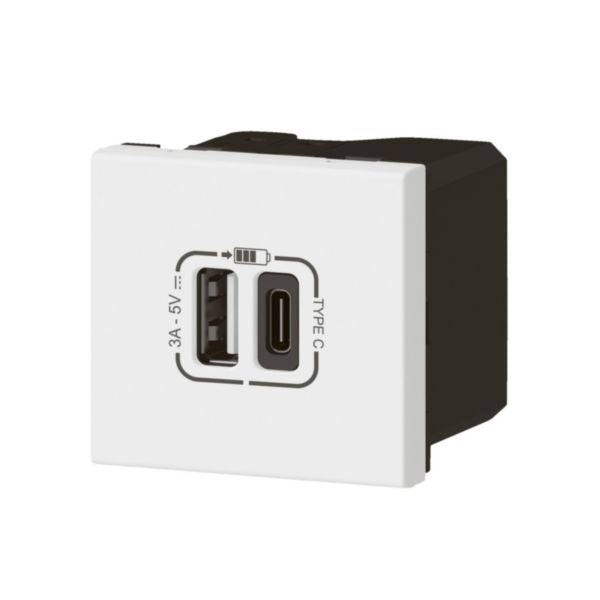

Dual-port USB Type-A and Type-C charger with 3.0A output and 15W power delivery. Flush-mounted white Mosaic design for modern homes and commercial spaces with IP40 protection.

The Mosaic USB-Link Charger Type A+C is a premium dual-port USB charging solution designed for modern homes and commercial spaces. This innovative 2-module flush-mounted device combines both USB Type-A and USB Type-C ports in a single elegant unit, providing maximum compatibility with all contemporary devices. With a robust 3.0A output capacity and 15W power delivery, this charger efficiently powers smartphones, tablets, and other USB-compatible devices simultaneously. Features a sleek white finish (RAL 9003) that seamlessly integrates with any interior design. The device operates on standard AC voltage (100-240V, 50-60Hz) and maintains optimal performance across a wide temperature range (5-35°C operating). Built with halogen-free materials and IP40 protection rating, it ensures safety and durability in residential and light commercial applications. The compact dimensions (45mm width x 45mm height x 41mm depth) make it perfect for modern installation boxes with minimum 40mm depth requirements. This Legrand Mosaic collection product features screwed terminal connections supporting flexible or rigid cables from 1.5-2.5mm² cross-section. The device includes terminal marking indication for safe installation and requires mandatory neutral connection. With its IK04 impact resistance rating and antimicrobial-free design, it's ideal for high-traffic areas requiring reliable, consistent power delivery for multiple USB devices.

Key Features

Dual USB ports - Type-A and Type-C in single 2-module unit for maximum device compatibility
High-power output - 3.0A maximum current with 15W power delivery for simultaneous charging
Wide voltage compatibility - 100-240V AC, 50-60Hz universal input for global use
Premium Mosaic collection design - White finish (RAL 9003) with sleek modern aesthetic
Safety certified - Halogen-free materials, IP40 protection rating, and IK04 impact resistance

Technical Specifications

Specification	Value
Product Reference	077570L
EAN Code	3414971577367
Brand	Legrand Mosaic
Number of Modules	2
USB Ports Configuration	1x USB Type-A + 1x USB Type-C
Maximum Output Current	3000 mA (3.0A)
Output Power	15W
Output Voltage	5V DC
Input Voltage Range	100-240V AC
Frequency	50-60 Hz
Power Consumption	0.066W
Supply Current	0.5A
Connection Type	Screwed terminal
Cable Section	1.5-2.5 mm²
Terminal Capacity	1.5-2.5 mm²
Cable Type	Flexible or rigid
Number of Terminals	2
Mounting Method	Flush-mounted
Device Width	45 mm
Device Height	45 mm
Device Depth	41 mm
Built-in Depth	32.5 mm
Minimum Installation Box Depth	40 mm
Colour	White
RAL Number	9003
Protection Rating (IP)	IP40
Impact Strength Rating (IK)	IK04
Operating Temperature Range	5-35°C
Storage Temperature Range	-20-70°C
Voltage Type	AC
Power Delivery Support	No
Halogen Free	Yes
Antimicrobial Treatment	No
Wireless Capability	No
Terminal Marking Indication	Yes
Mandatory Neutral Required	Yes
Stress Test Conformity (1000V)	No

Order Legrand Mosaic USB-Link Charger Type A+C 3A 15W White | 077570L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
