Shop Legrand Mosaic USB Type-C Power Delivery Charger 63W White | 077673L In Iraq Best Prices
Premium 63W dual Type-C USB charger with Power Delivery technology for simultaneous multi-device charging. Features automatic push-in terminals, IP40 protection, and white modern design suitable for residential and commercial applications.

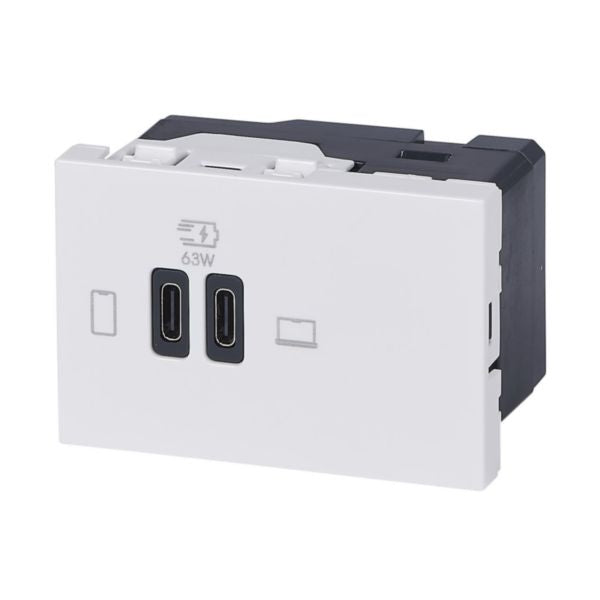

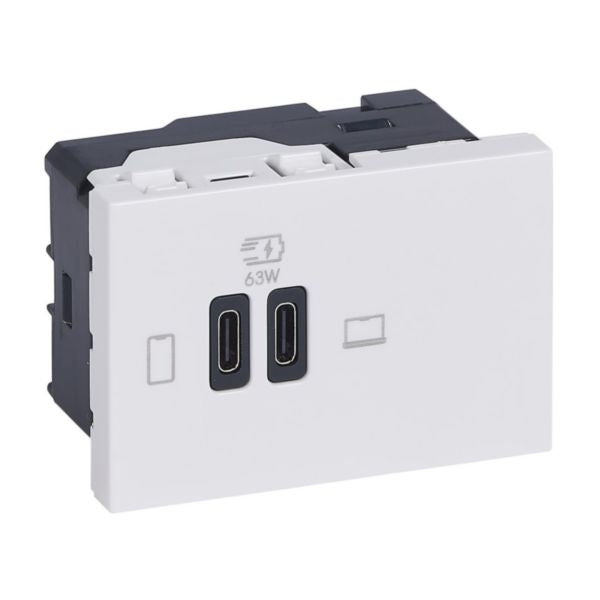

The Mosaic USB Charger 3 Module 63W with dual Type-C USB outlets and Power Delivery technology is a modern solution for charging multiple devices simultaneously. This premium charging socket features two high-power USB-C ports capable of delivering up to 63W total output power, making it ideal for charging laptops, tablets, and smartphones at the same time. The device is equipped with automatic terminals allowing fast and tool-free connection, with terminal capacity supporting 1.5-2.5mm² cable sections. Perfect for residential and commercial installations, this three-module socket integrates seamlessly into floor boxes, DLP trunking systems, office blocks, columns, and balusters.
Designed with user convenience in mind, the Mosaic USB Charger features intelligent power management with a maximum output current of 3000mA per port and operating voltage range of 220-240V at 50-60Hz frequency. The device maintains minimal standby consumption, ensuring energy efficiency. Its compact design measures 68mm width, 45mm height, and 42mm depth, requiring a minimum built-in installation box depth of 40mm. The white finish (RAL 9003) complements any modern interior design scheme.
This USB charging solution meets strict safety standards with IP40 degree of protection and IK04 impact resistance rating. The device is halogen-free and features terminal marking indication for safe installation. With push-in clamp connection type and support for both flexible and rigid cables, installation is straightforward and reliable. The operating temperature range of 5-35°C ensures consistent performance in various environmental conditions, while storage capability extends from -20 to 70°C. The Mosaic USB Charger represents the perfect blend of functionality, safety, and modern design for contemporary electrical installations.
Key Features
- Dual Type-C USB outlets with 63W total power delivery capacity
- Automatic terminals allowing tool-free fast connection
- Power Delivery technology for universal charging of laptops, tablets, and smartphones
- Three-module design for flexible installation in floor boxes and trunking systems
- Minimal standby consumption with intelligent power management
- IP40 protection rating and IK04 impact resistance
- Halogen-free construction with terminal marking indication
- Supports 1.5-2.5mm² cable sections with push-in clamp connection
- Operating voltage 220-240V, 50-60Hz frequency
- White finish (RAL 9003) suitable for modern interiors
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic USB Charger 3 Module 63W Type-C Power Delivery |
| Reference Number | 077673L |
| EAN Code | 3414972505239 |
| Brand | Legrand |
| Number of USB-C Ports | 2 |
| Number of USB-A Ports | 0 |
| Total Power Output | 63W |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage Range | 5-20V |
| Operating Voltage | 220-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption | 0.05W |
| Number of Modules | 3 |
| Connection Type | Push-in clamp (automatic terminals) |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type Compatibility | Flexible or rigid |
| Number of Terminals | 2 |
| Mounting Method | Flush-mounted |
| Device Width | 68 mm |
| Device Height | 45 mm |
| Device Depth | 42 mm |
| Built-in Depth | 33.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Color | White |
| RAL Number | 9003 |
| IP Protection Rating | IP40 |
| Impact Resistance (IK) | IK04 |
| Voltage Type | AC |
| Power Delivery | Yes |
| Supply Current | 1-1 A |
| Operating Temperature Range | 5-35°C |
| Storage Temperature Range | -20-70°C |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Stress Test Conformity (1000V) | No |
| Installation Type | Floor boxes, DLP trunking, office blocks, columns, balusters |
| Usage Recommendation | Inside use only |
