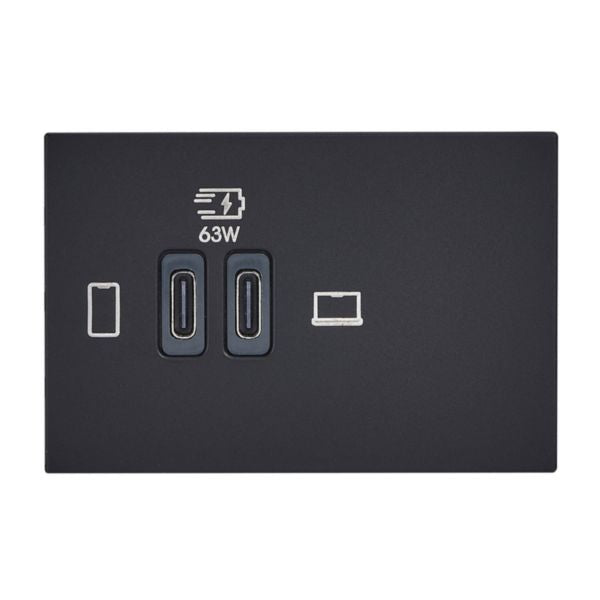

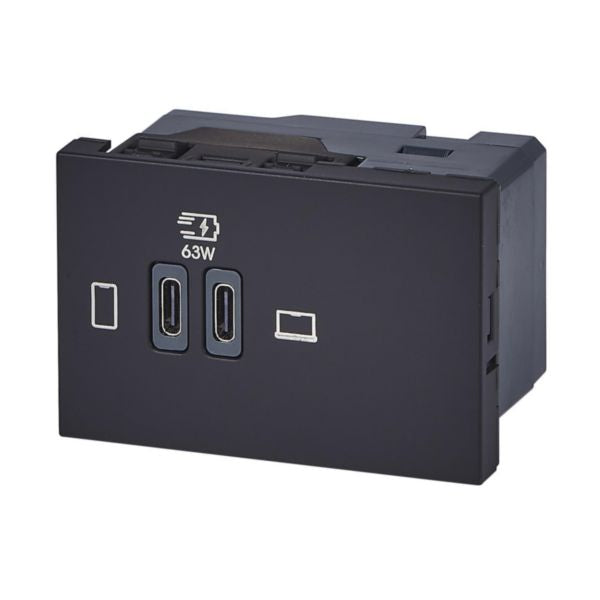

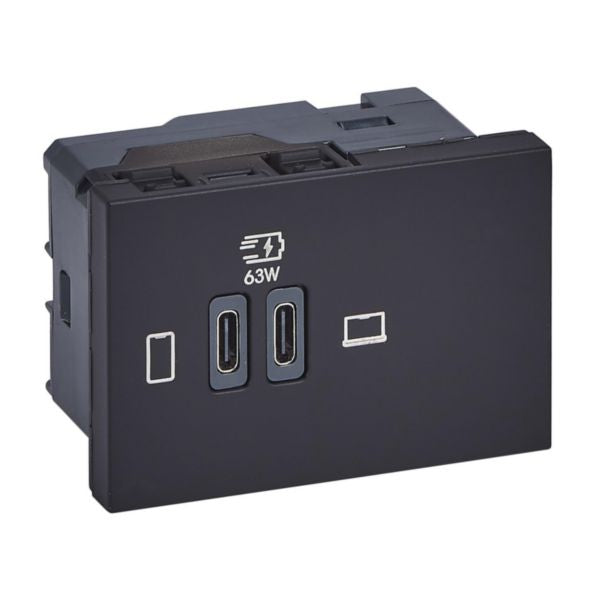

Shop Legrand Mosaic USB Type-C Power Delivery Charger 63W Black | 077675L In Iraq Best Prices
Advanced 63W dual USB Type-C charger with Power Delivery technology for fast charging laptops, tablets, and smartphones. Features tool-free installation, energy-efficient design, and sleek black finish suitable for modern homes and commercial spaces.
The Mosaic USB Charger 3 Module 63W represents a modern solution for fast charging multiple devices simultaneously. This sophisticated wall-mounted charging unit features dual USB Type-C ports with advanced Power Delivery technology, capable of delivering up to 63W of power output. Designed for contemporary homes and commercial spaces, this charger seamlessly integrates into your electrical infrastructure with its sleek black finish and compact 3-module design.
Equipped with automatic push-in clamp terminals that require no tools for installation, this USB charger offers exceptional convenience and professional-grade reliability. The device supports universal charging for laptops, tablets, and smartphones through its Type-C USB outlets, making it an essential addition to any modern workspace or residential environment. With an operating voltage range of 220-240V and frequency of 50-60Hz, it provides consistent performance across various electrical systems.
The Mosaic USB Charger incorporates intelligent power management with minimal standby consumption of just 0.05W, ensuring energy efficiency without compromising functionality. Its robust construction includes halogen-free materials and meets IP40 protection standards with IK04 impact resistance. The device features terminal capacity ranging from 1.5-2.5mm², supporting flexible or rigid cable connections, and includes comprehensive terminal marking for safe installation. Perfect for floor boxes, DLP trunking, office blocks, columns, and balusters.
Key Features
- Dual USB Type-C ports with 63W Power Delivery for universal fast charging
- Tool-free automatic push-in clamp terminals for quick installation
- Energy-efficient with minimal 0.05W standby consumption
- Halogen-free materials with IP40 protection and IK04 impact resistance
- Compatible with laptops, tablets, and smartphones charging requirements
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic USB Charger 3 Module 63W Type-C Power Delivery |
| Reference Number | 077675L |
| EAN Code | 3414972505277 |
| Number of Modules | 3 |
| USB Port Configuration | 2x USB Type-C ports |
| Power Output | 63W |
| Operating Voltage | 220-240V AC |
| Frequency | 50-60 Hz |
| Maximum Output Current | 3000 mA |
| Output Voltage Range | 5-20V |
| Standby Power Consumption | 0.05W |
| Connection Type | Push-in clamp terminals |
| Terminal Capacity | 1.5-2.5mm² |
| Cable Type | Flexible or rigid |
| Device Width | 68mm |
| Device Height | 45mm |
| Device Depth | 42mm |
| Built-in Depth | 33.5mm |
| Minimum Installation Box Depth | 40mm |
| Color | Black |
| RAL Number | 9017 |
| Mounting Method | Flush-mounted |
| IP Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-35°C |
| Storage Temperature Range | -20-70°C |
| Halogen Free | Yes |
| Power Delivery Technology | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Terminal Marking | Yes |
| Mandatory Neutral | Yes |
| Number of Terminals | 2 |
| Voltage Type | AC |
| Brand | Legrand |
| Series | Mosaic |
| Installation Location | Floor boxes, DLP trunking, office blocks, columns, balusters |
| Use Case | Indoor use only |
Order Legrand Mosaic USB Type-C Power Delivery Charger 63W Black | 077675L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
