Shop Legrand Mosaic USB Type-C Power Delivery Charger 30W 2 Module White | 077631L In Iraq Best Prices
Dual 30W USB Type-C charger with Power Delivery technology for fast charging of laptops, tablets, and smartphones. Features flush-mounted installation, IP40 protection, and energy-efficient operation.

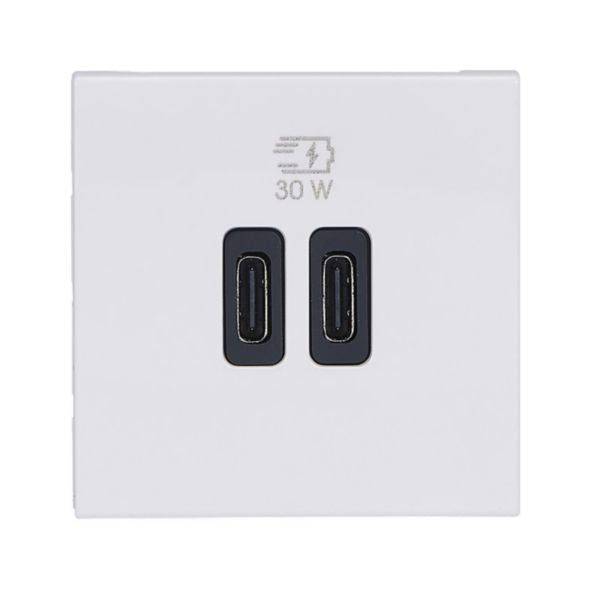

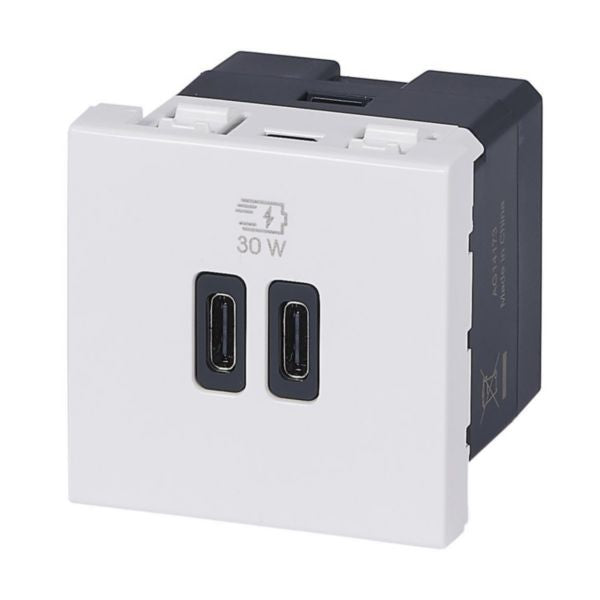

The Mosaic USB Charger 2 Module 30W Type-C Power Delivery White (REF. 077631L) is a modern dual USB-C charging solution designed for contemporary homes and offices. This sophisticated charger features two independent 30W USB Type-C outlets with advanced Power Delivery technology, supporting 5V, 9V, 12V, and 15V output voltages for universal compatibility with laptops, tablets, and smartphones. The device is engineered for flush-mounted installation in standard 40mm electrical boxes, making it ideal for seamless integration into existing wiring infrastructure.
With its sleek white finish and compact 45mm x 45mm x 45mm dimensions, this Mosaic charger combines functionality with aesthetic appeal. The charger incorporates intelligent power management with a maximum output current of 3000mA per port and operates on standard AC voltage (100-240V, 50-60Hz). The device features secure screwed terminals rated for 1.5-2.5mm² cable connections, ensuring reliable and safe electrical connections. Built with halogen-free materials and designed for IP40 protection rating with IK04 impact resistance, it meets modern safety and environmental standards.
This premium charging solution is particularly suited for environments requiring multiple simultaneous device charging capabilities. The Power Delivery technology enables fast charging for compatible devices, while the low standby consumption ensures energy efficiency. Perfect for residential installations, commercial spaces, and hospitality applications, the Mosaic USB Charger represents the ideal balance between performance, safety, and design excellence.
Key Features
- Dual 30W USB Type-C outlets with independent charging capability
- Advanced Power Delivery technology supporting 5V, 9V, 12V, and 15V output
- Maximum output current of 3000mA for rapid device charging
- Flush-mounted installation in standard 40mm electrical boxes
- IP40 protection rating with IK04 impact resistance
- Halogen-free construction for environmental safety
- Low standby power consumption for energy efficiency
- Screwed terminal connections rated for 1.5-2.5mm² cables
- Universal compatibility with laptops, tablets, and smartphones
- Sleek white finish with compact 45mm x 45mm x 45mm design
Technical Specifications
| Specification |
Value |
| Product Reference | 077631L |
| EAN Code | 3414972513463 |
| Brand | Legrand Mosaic |
| USB Port Configuration | 2x USB Type-C outlets |
| Power per Port | 30W |
| Operating Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Output Voltage Range | 5-20V with Power Delivery support |
| Maximum Output Current | 3000mA (3A) per port |
| Power Delivery Levels | 5V, 9V, 12V, 15V |
| Standby Power Consumption | 0.063W |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1.5-2.5mm² |
| Number of Terminals | 2 |
| Mounting Method | Flush-mounted |
| Recommended Box Depth | 40mm minimum |
| Device Dimensions | 45mm (W) x 45mm (H) x 45mm (D) |
| Built-in Depth | 36.5mm |
| Colour | White |
| IP Protection Rating | IP40 |
| Impact Resistance (IK) | IK04 |
| Operating Temperature | 5-35°C |
| Storage Temperature | -20-70°C |
| Voltage Type | AC (Alternating Current) |
| Power Delivery | Yes - Quick Charge compatible |
| Antimicrobial Treatment | No |
| Wireless Charging | No |
| Halogen Free | Yes |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes - Terminal indication provided |
| Cable Type Compatible | Flexible or rigid cables |
| Cable Section Range | 1.5-2.5mm² |
| Recommended Installation | Inside use only |
| Compatible Devices | Universal charger for laptop, tablet, smartphone |
