Shop Legrand Mosaic USB Type-C Power Delivery Charger 30W 2 Module Black | 077633L In Iraq Best Prices
Dual USB Type-C charger with 30W Power Delivery per port, supporting Quick Charge 5-9-12-15V. Ideal for simultaneously charging laptops, tablets, and smartphones with low standby consumption and halogen-free materials.

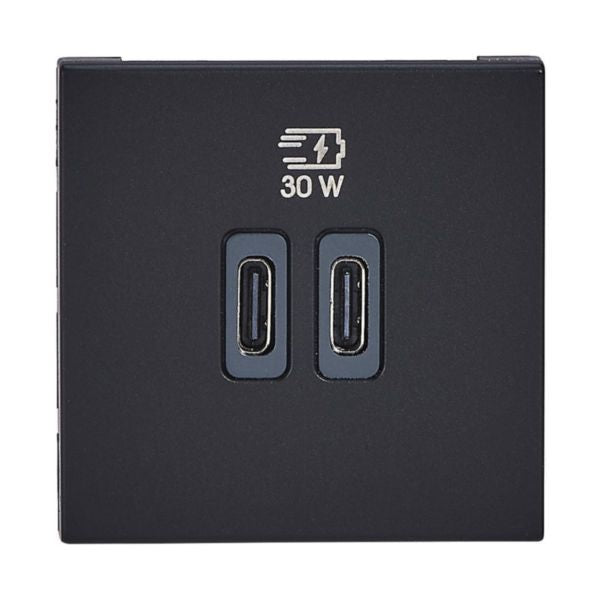

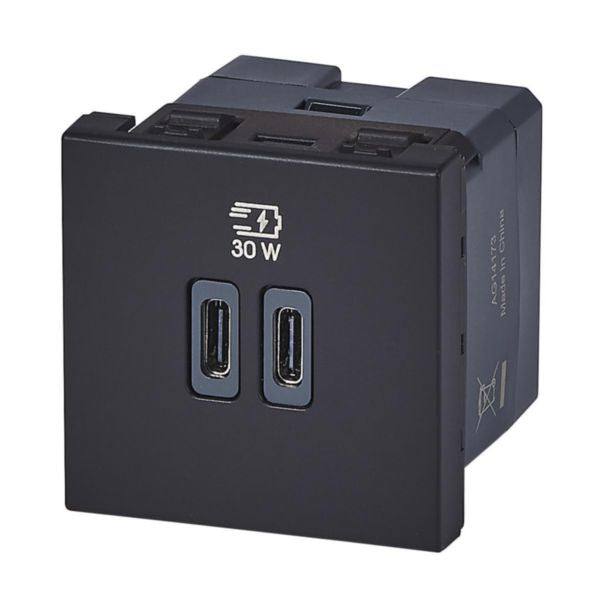

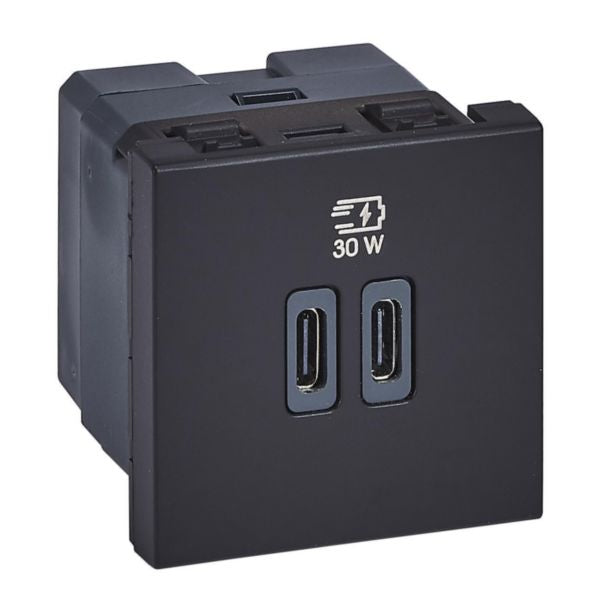

The Mosaic USB Charger 2 Module 30W Type-C Power Delivery in black is a modern and efficient charging solution designed for contemporary homes and buildings. This dual USB Type-C outlet provides fast charging capabilities with 30W power delivery per port, supporting 5-9-12-15V Quick Charge technology. The device features two independent USB-C ports, each delivering up to 3000mA output current, making it ideal for charging multiple devices simultaneously such as laptops, tablets, and smartphones. The charger is equipped with screw terminals (2.5mm²) for secure wiring connections and is designed for flush-mounted installation in standard 40mm electrical boxes.
This Legrand product combines functionality with aesthetic appeal, featuring a sleek black finish that complements the Mosaic design range. The device operates on standard AC voltage (100-240V, 50-60Hz) and includes advanced features such as low standby consumption and halogen-free materials for enhanced safety. With an operating temperature range of 5-35°C and impact strength rating of IK04, this USB charger is built for reliable performance in residential and small commercial applications. The installation is straightforward, requiring only a compatible 40mm mounting box, and the device includes terminal marking indication for proper wiring identification.
Perfect for modern living spaces where multiple devices need charging, this USB Type-C charger eliminates the need for multiple adapters and provides universal compatibility with laptops, tablets, and smartphones. The Power Delivery technology ensures fast and safe charging while the compact 2-module design fits seamlessly into standard electrical installations. With Legrand's reputation for quality and reliability, this product is an excellent choice for anyone looking to upgrade their electrical infrastructure with contemporary charging solutions.
Key Features
- Dual USB Type-C outlets with 30W Power Delivery per port
- Quick Charge support with 5-9-12-15V output voltage
- Universal compatibility with laptops, tablets, and smartphones
- Low standby consumption for energy efficiency
- Halogen-free materials for enhanced safety
- Secure screw terminal connections (2.5mm²)
- Flush-mounted installation in 40mm electrical boxes
- Compact 2-module design with sleek black finish
- Operating temperature range 5-35°C
- Impact strength rating IK04 for durability
Technical Specifications
| Specification |
Value |
| Brand | Legrand |
| Model Range | Mosaic |
| Reference Number | 077633L |
| EAN Code | 3414972513500 |
| Number of USB-C Ports | 2 |
| Number of USB-A Ports | 0 |
| Power Delivery per Port | 30W |
| Output Current | 3000 mA maximum |
| Output Voltage Range | 5-20V |
| Quick Charge Support | 5-9-12-15V |
| Input Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption | 0.063W |
| Standby Consumption | Low |
| Connection Type | Screw Terminal |
| Terminal Capacity | 1.5-2.5mm² |
| Cable Section | 1.5-2.5mm² |
| Number of Modules | 2 |
| Device Width | 45mm |
| Device Height | 45mm |
| Device Depth | 45mm |
| Built-in Depth | 36.5mm |
| Minimum Box Depth | 40mm |
| Compatible Box Size | 40mm |
| Mounting Method | Flush-mounted |
| Color | Black |
| IP Rating | IP40 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | 5-35°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Halogen Free | Yes |
| Terminal Marking | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Cable Type | Flexible or rigid |
