Shop Legrand Mosaic USB Type-C Power Delivery Charger 30W 2 Module Aluminum | 077632L In Iraq Best Prices
Premium dual USB Type-C charger with 30W Power Delivery technology, delivering fast charging for laptops, tablets, and smartphones with intelligent power management and aluminium finish.

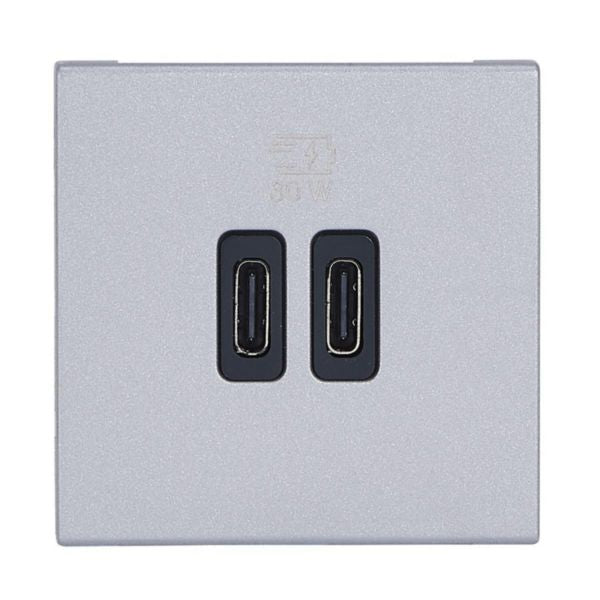

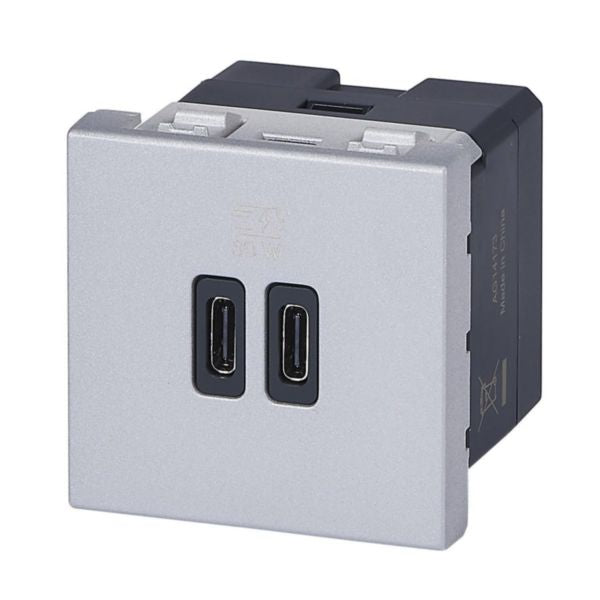

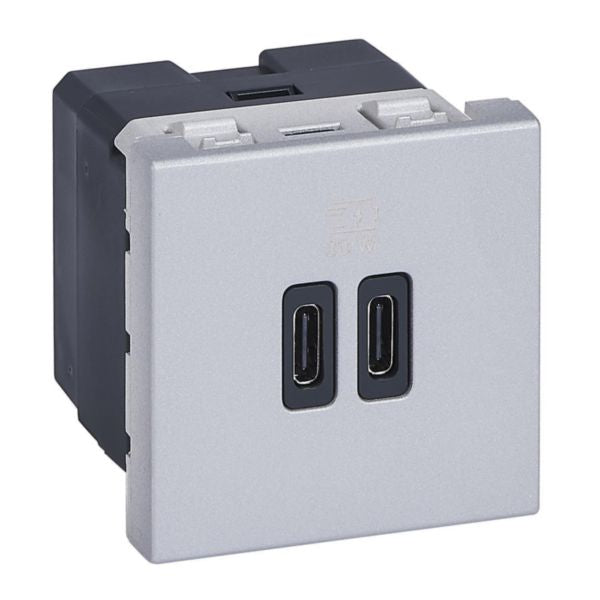

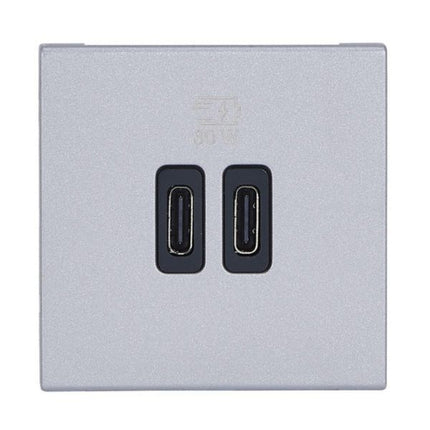

The Mosaic USB Charger 2 Module 30W Type-C Power Delivery in Aluminium is a modern, dual-port charging solution designed for contemporary homes and commercial spaces. This innovative charger features two USB Type-C outlets, each delivering 30W of power with advanced Power Delivery technology supporting 5V, 9V, 12V, and 15V output levels. The device is engineered for universal compatibility with laptops, tablets, and smartphones, making it an essential addition to any smart home installation.
Built with premium aluminium finish and housed in a sleek 2-module design, this USB charger integrates seamlessly into the Mosaic wiring device range. The charger operates on standard AC power (100-240V, 50-60Hz) and features intelligent power management with minimal standby consumption of just 0.063W. With Quick Charge capability and Power Delivery technology, users can charge multiple high-power devices simultaneously without compromising charging speed. The device is equipped with screwed terminals for secure 2.5mm² cable connections and is rated for IP40 protection and IK04 impact resistance.
This product is recommended for indoor use only and is compatible with standard 40mm flush-mounted installation boxes. The Mosaic USB Charger represents Legrand's commitment to providing reliable, efficient, and aesthetically pleasing electrical solutions that meet the demands of modern living and working environments. With halogen-free materials and comprehensive safety certifications, this charger ensures both performance and environmental responsibility.
Key Features
- Dual USB Type-C outlets with 30W power delivery per port for simultaneous charging
- Advanced Power Delivery technology supporting 5V, 9V, 12V, and 15V output levels
- Quick Charge capability for rapid charging of compatible devices
- Premium aluminium finish with sleek 2-module design for modern aesthetics
- Minimal standby consumption of 0.063W for energy efficiency
- IP40 protection rating and IK04 impact resistance for durability
- Halogen-free materials for environmental responsibility
- Compatible with 40mm flush-mounted installation boxes
- Screwed terminal connections supporting 1.5-2.5mm² cable capacity
- Universal compatibility with laptops, tablets, and smartphones
Technical Specifications
| Specification |
Value |
| Product Reference | 077632L |
| EAN Code | 3414972513487 |
| Brand | Legrand |
| Product Line | Mosaic |
| Number of Modules | 2 modules |
| USB Ports Configuration | 2x USB Type-C outlets |
| Power Output Per Port | 30W |
| Total Power Output | 60W (2x30W) |
| Power Delivery Levels | 5V, 9V, 12V, 15V |
| Maximum Output Current | 3000 mA |
| Operating Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Output Voltage Range | 5-20V |
| Power Consumption | 0.063W (standby) |
| Connection Type | Screwed terminals |
| Terminal Capacity | 1.5-2.5mm² |
| Cable Section Support | 1.5-2.5mm² (flexible or rigid) |
| Mounting Method | Flush-mounted |
| Compatible Box Depth | 40mm minimum |
| Built-in Depth | 36.5mm |
| Device Dimensions | 45mm width x 45mm height x 45mm depth |
| Colour | Aluminium |
| Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature | 5-35°C |
| Storage Temperature | -20-70°C |
| Supply Current | 1A |
| Voltage Type | AC |
| Power Delivery Support | Yes |
| Quick Charge Support | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Terminal Marking | Yes |
| Mandatory Neutral | Yes |
| Recommended Use | Indoor use only |
Order Legrand Mosaic USB Type-C Power Delivery Charger 30W 2 Module Aluminum | 077632L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
