Shop Legrand Mosaic Triple Socket 3x2P+E Trunking White | 077403 In Iraq Best Prices
Premium triple 2P+E socket outlet for DLP trunking with automatic terminals, IP40 protection, and European CEE 7/3 safety standards. White finish, 16A/250V rated.

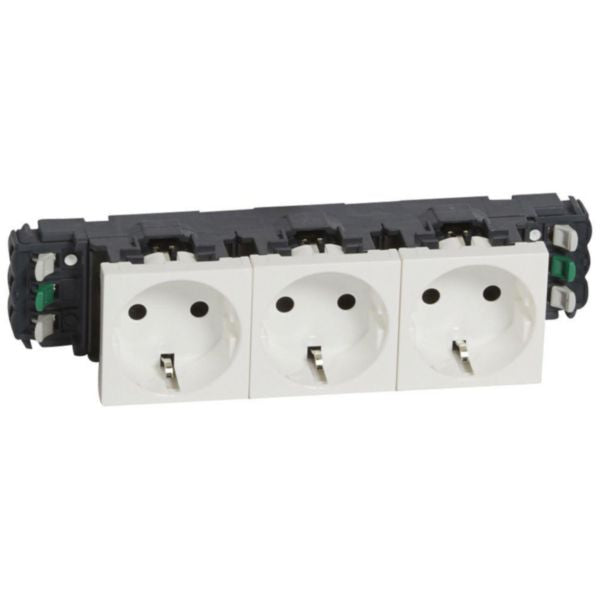

The Legrand Mosaic™ Socket Outlet (REF. 077403) is a premium-quality triple 2P+E socket designed for installation on DLP trunking systems. This modular device features three European-style CEE 7/3 (Type F) protective contact sockets arranged in a compact 180mm width format. The socket is engineered with automatic push-in clamp terminals that enable direct connection without requiring any tools, making installation intuitive and efficient. The white finish with enhanced contact protection ensures durability and safety in both residential and commercial applications.
This Mosaic programme socket outlet is specifically designed for use with 65mm and 85mm cover DLP trunking in conjunction with dedicated supports and plates. The device features shutters with connection points at both sides, allowing flexible mounting configurations. With a nominal current rating of 16A at 250V (50-60Hz), it provides reliable power distribution for standard European electrical applications. The product meets rigorous international safety standards including VDE, NEMKO, and MEEI certifications.
The socket outlet features an IP40 degree of protection and IK04 impact strength rating, making it suitable for protected indoor environments. The halogen-free thermoplastic construction ensures environmental compliance and fire safety. Operating temperature range is -5°C to +35°C, with storage capabilities from -10°C to +70°C. The intuitive disconnection mechanism allows for easy removal without dismantling the support structure, providing maintenance flexibility and user convenience.
Key Features
- Triple CEE 7/3 Type F protective contact sockets for European standard compatibility
- Automatic push-in clamp terminals enabling tool-free direct connection
- Halogen-free thermoplastic construction for environmental and fire safety compliance
- IP40 degree of protection with IK04 impact strength for indoor environments
- Intuitive disconnection mechanism allowing easy removal without dismantling support
- Dual-sided connection points compatible with 65mm and 85mm DLP trunking covers
- White color finish with enhanced contact protection for durability
- Compact 180mm width design for efficient space utilization
Technical Specifications
| Specification |
Value |
| Product Reference | 077403 |
| EAN Code | 3245060774035 |
| Socket Type | CEE 7/3 Type F with protective contact |
| Number of Sockets | 3 x 2P+E |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Modules | 6 modules |
| Connection Type | Push-in clamp terminals (automatic) |
| Material | Halogen-free thermoplastic |
| Color | White (RAL 9003) |
| Device Width | 180 mm |
| Device Height | 45 mm |
| Device Depth | 44 mm |
| IP Rating | IP40 |
| Impact Strength | IK04 |
| Mounting Method | Wall duct / DLP trunking snap mounting |
| Operating Temperature | -5°C to +35°C |
| Storage Temperature | -10°C to +70°C |
| Cable Section | 2.5 mm² |
| Contact Protection | Enhanced with shutters |
| Loop Through Function | Yes |
| Compatible Trunking | 65mm and 85mm DLP cover trunking |
| Certifications | VDE, NEMKO, MEEI |
| Voltage Type | AC |
