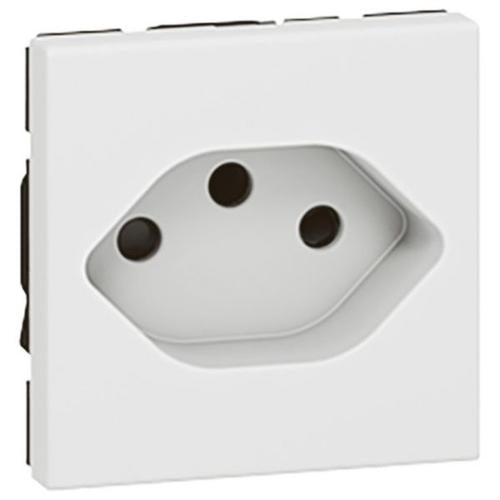

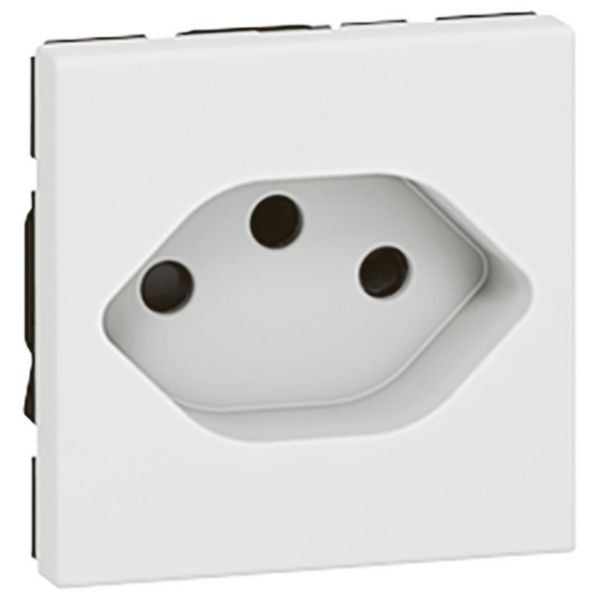

Shop Legrand Mosaic Swiss Socket Outlet 2P+E 10A 250V White | 077506 In Iraq Best Prices

Premium Swiss-standard modular socket outlet with 10A/250V rating, automatic push-in terminals, halogen-free thermoplastic construction, and IP40 protection for residential and commercial applications.

The Mosaic™ Socket Outlet Swiss Type 13 is a premium modular wiring device designed for residential and commercial installations. This 2-module socket outlet features automatic push-in clamp terminals for secure and reliable electrical connections. With a nominal current rating of 10A at 250V and support for 50-60 Hz frequency, this outlet provides safe and efficient power distribution. The white finish with RAL 9003 color coding offers excellent aesthetic integration into any interior design scheme. This Swiss-standard socket outlet is constructed from high-quality thermoplastic material and is halogen-free, making it environmentally friendly and safe for use in sensitive environments. The device features enhanced contact protection with a round protective contact design and includes loop-through functionality for convenient installation. The compact dimensions of 45mm x 45mm x 26.7mm make it ideal for space-constrained applications while maintaining full compatibility with Mosaic programme mechanisms and floor socket receptacles. The socket outlet is engineered to meet strict European standards with an IP40 degree of protection and IK04 impact resistance rating. Operating safely within temperature ranges of -5°C to 35°C, this outlet is suitable for both residential and small commercial applications. The snap-mounting installation method ensures quick and hassle-free setup, while the rigid cable connection with 1.5-1.5mm² cable section capacity accommodates standard electrical installations.

Key Features

Swiss Type 13 standard socket outlet with round protective contact design
Automatic push-in clamp terminals for secure and reliable electrical connections
Halogen-free thermoplastic material for environmental safety and durability
2-module modular design compatible with Mosaic programme mechanisms
IP40 degree of protection with IK04 impact resistance rating
10A nominal current at 250V with 50-60 Hz frequency support
Loop-through functionality for convenient daisy-chain installation
Snap-mounting installation method for quick and easy setup
White finish with RAL 9003 color code for aesthetic integration
Operating temperature range -5°C to 35°C for all-season reliability

Technical Specifications

Specification	Value
Product Name	Mosaic Socket Outlet Swiss Type 13
Reference Number	077506
EAN Code	3245060775063
Standard	Swiss norm type 13
Protective Contact Type	Round
Number of Socket Outlets	1
Number of Modules	2 modules
Number of Phases	1
Connection Type	Push-in clamp (automatic terminals)
Nominal Current	10 A
Nominal Voltage	250 V
Frequency	50-60 Hz
Voltage Type	AC
Cable Section	1.5-1.5 mm²
Cable Type	Rigid
Material	Thermoplastic
Halogen Free	Yes
Surface Finishing	Glossy
Color	White
RAL Number	9003
Device Width	45 mm
Device Height	45 mm
Device Depth	26.7 mm
Built-in Depth	35.2 mm
Degree of Protection (IP)	IP40
Impact Strength (IK)	IK04
Operating Temperature Range	-5°C to 35°C
Storage Temperature Range	-10°C to 70°C
Mounting Method	Snap mounting (engagement)
Type of Fastening	Module frame
Loop Through Function	Yes
Hinged Lid	No
Enhanced Contact Protection	No
Function Lighting	No
Overvoltage Protection	No
Fault Current Protection	No
Smart Home Compatible	No (Apple HomeKit, Amazon Alexa, Google Assistant not supported)
Power Delivery	No
USB Ports	None
Manufacturer	LEGRAND
Product Line	Mosaic

Order Legrand Mosaic Swiss Socket Outlet 2P+E 10A 250V White | 077506 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
