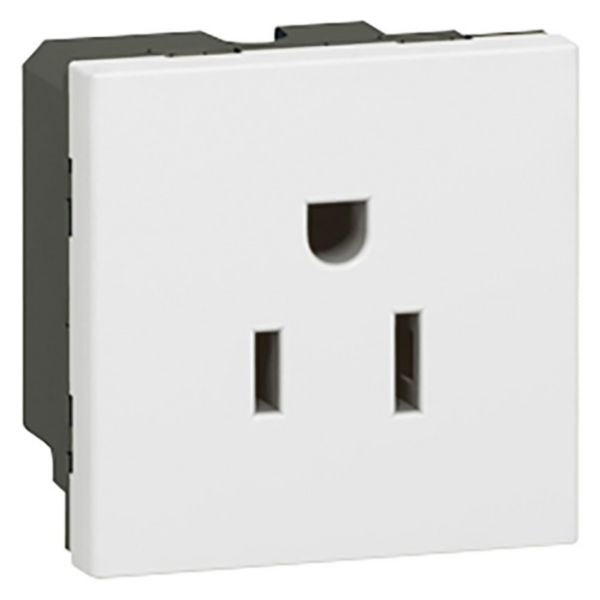

Shop Legrand Mosaic US Socket Outlet 2P+E 15A 2 Modules White | 077504 In Iraq Best Prices
Premium Mosaic™ US standard 2-module socket outlet with 15A capacity, white finish, and modern design for residential and commercial applications
The Mosaic™ Socket Outlet is a premium US standard electrical outlet designed for modern residential and commercial applications. This 2-module device features a 2P+E 15A capacity, providing reliable power distribution for standard North American electrical systems. The white finish integrates seamlessly with contemporary interior designs, while the modular construction allows for flexible installation configurations. Built to international safety standards, this outlet combines durability with aesthetic appeal, making it an ideal choice for new constructions and renovations.
Designed as part of the Legrand Mosaic™ programme, this socket outlet meets US/CA (NEMA 5-15) type B specifications, ensuring compatibility with standard American electrical infrastructure. The device features screwed terminal connections for secure wiring, enhanced contact protection, and a robust plastic construction that is halogen-free and environmentally conscious. With an IP41 degree of protection and IK04 impact strength rating, this outlet is suitable for standard domestic and commercial environments. The flush-mounted installation method provides a clean, integrated appearance while maintaining full functionality and safety.
The Mosaic™ socket outlet operates at 127V nominal voltage with 50-60 Hz frequency compatibility, making it suitable for North American power systems. Its compact dimensions (45mm width x 45mm height x 34.1mm depth) allow for efficient space utilization in wall installations. The device includes loop-through functionality for daisy-chaining multiple outlets, and the thermoplastic material ensures long-term reliability under normal operating conditions. With an operating temperature range of -5 to 35°C, this outlet performs consistently across various climatic conditions.
Key Features
- US/CA NEMA 5-15 Type B standard compliance for North American electrical systems
- 2-module modular design allowing flexible installation and daisy-chaining capabilities
- 15A nominal current capacity with 127V nominal voltage operation
- Halogen-free thermoplastic construction for environmental sustainability and safety
- IP41 degree of protection and IK04 impact strength for reliable performance
- Screwed terminal connections ensuring secure and stable wiring
- Loop-through functionality for connecting multiple outlets in series
- Compact dimensions (45x45x34.1mm) for efficient space utilization
- Operating temperature range -5 to 35°C for consistent performance
- White glossy finish integrating seamlessly with modern interior designs
Technical Specifications
| Specification |
Value |
| Model | US/CA (NEMA 5-15) Type B |
| Nominal Current | 15 A |
| Nominal Voltage | 127 V |
| Frequency | 50-60 Hz |
| Number of Modules | 2 |
| Number of Socket Outlets | 1 |
| Number of Active Contacts (Round) | 1 |
| Connection Type | Screwed terminal |
| Cable Section | 4-4 mm² |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 34.1 mm |
| Built-in Depth | 25.6 mm |
| Mounting Method | Flush-mounted |
| Type of Fastening | Snap mounting (engagement) |
| Material | Thermoplastic |
| Colour | White |
| RAL Number (Similar) | 9003 |
| Surface Finishing | Glossy |
| Halogen Free | Yes |
| Degree of Protection (IP) | IP41 |
| Degree of Impact Strength (IK) | IK04 |
| Operating Temperature | -5 to 35°C |
| Storage Temperature | -10 to 70°C |
| Voltage Type | AC |
| With Loop Through Function | Yes |
| With On/Off Switch | No |
| Protective Contact | Other |
| Assembly Arrangement | Modular device for domestic switching devices |
| SKU/Reference | 077504 |
