Shop Legrand Mosaic 4x2P+E Socket Outlet Tamperproof Trunking | 077424 In Iraq Best Prices

Professional 4 x 2P+E socket outlet for DLP trunking with tamperproof design, automatic terminals, and enhanced contact protection. 16A/250V rated with IP20 protection.

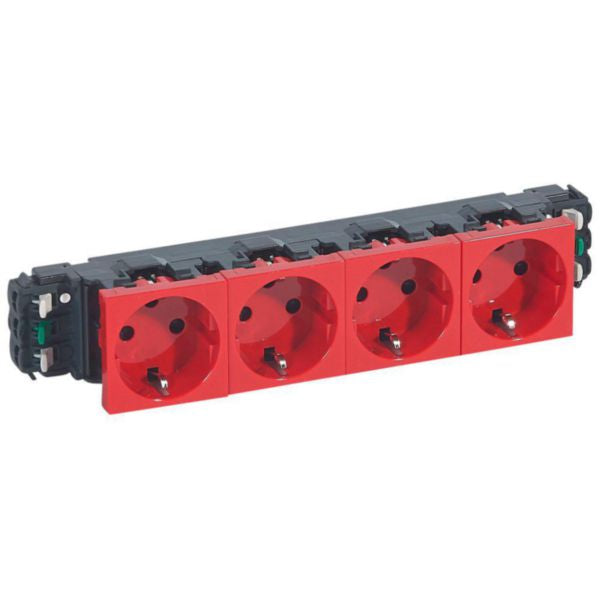

The Mosaic™ Socket outlet is a professional-grade electrical component designed for installation on DLP trunking systems. This 4 x 2P+E socket outlet features protective contact CEE 7/3 (type F) design and is manufactured according to German standards. The socket is equipped with automatic terminals and tamperproof protection, making it ideal for both residential and commercial applications where safety and reliability are paramount. The device utilizes push-in clamp connection technology, eliminating the need for tools during installation and providing intuitive disconnection without dismantling the support structure. This Mosaic socket outlet is specifically engineered for mounting on 65 and 85 mm cover DLP trunking in conjunction with supports and plates designed for trunking systems. The socket features enhanced contact protection and a glossy finish in red color (RAL 3020), providing both aesthetic appeal and functional durability. With a nominal current rating of 16A at 250V, this socket outlet accommodates frequencies between 50-60 Hz, making it compatible with standard electrical systems worldwide. The modular design comprises 8 modules, allowing for flexible installation configurations. The product meets stringent safety standards with an IP20 degree of protection and IK04 impact strength rating, suitable for indoor installation environments. The halogen-free plastic construction ensures environmental compliance and safety. Operating temperature range of -5 to 35°C and storage temperature range of -10 to 70°C ensure reliable performance across various climatic conditions. With its loop-through function capability and rigid cable support rated for 2.5 mm² cross-section, this socket outlet provides comprehensive connectivity solutions for modern electrical installations.

Key Features

  • 4 x 2P+E socket outlets with CEE 7/3 (type F) protective contact design
  • Automatic push-in clamp terminals requiring no tools for installation
  • Tamperproof protection with enhanced contact safety features
  • Halogen-free plastic construction for environmental compliance
  • Modular design with 8 modules for flexible configuration
  • Loop-through function capability for daisy-chain installation
  • IP20 degree of protection suitable for indoor environments
  • IK04 impact strength rating for durability
  • 16A/250V nominal rating with 50-60 Hz frequency compatibility
  • Red glossy finish (RAL 3020) with professional appearance

Technical Specifications

Specification Value
Product NameMosaic™ Socket - 4 x 2P+E for DLP Trunking
Reference Number077424
EAN Code3245060774240
Socket TypeCEE 7/3 (type F) protective contact
Number of Socket Outlets4
Number of Active Contacts8 round contacts
Number of Modules8 modules
Nominal Current16 A
Nominal Voltage250 V
Frequency Range50-60 Hz
Connection TypePush-in clamp (automatic terminals)
Cable Section2.5 mm²
MaterialHalogen-free thermoplastic
ColorRed (RAL 3020)
Surface FinishGlossy
Device Width225 mm
Device Height45 mm
Device Depth44 mm
Built-in Depth44 mm
IP Protection DegreeIP20
Impact Strength RatingIK04
Operating Temperature Range-5 to 35°C
Storage Temperature Range-10 to 70°C
Mounting MethodWall duct/Trunking installation
Fastening TypeSnap mounting (engagement)
Enhanced Contact ProtectionYes - Tamperproof
Loop-Through FunctionYes
Voltage TypeAC
Assembly ArrangementModular device for domestic switching devices
Compatible Trunking Size65 and 85 mm cover DLP trunking

Order Legrand Mosaic 4x2P+E Socket Outlet Tamperproof Trunking | 077424 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
