Description

Shop Legrand Mosaic 4x2P+E Socket Outlet Trunking Screw Terminal Tamperproof Red | 077624 In Iraq Best Prices

Professional 4-outlet tamperproof power socket for DLP trunking installation with enhanced contact protection, 16A/250V, screw terminals, and halogen-free construction

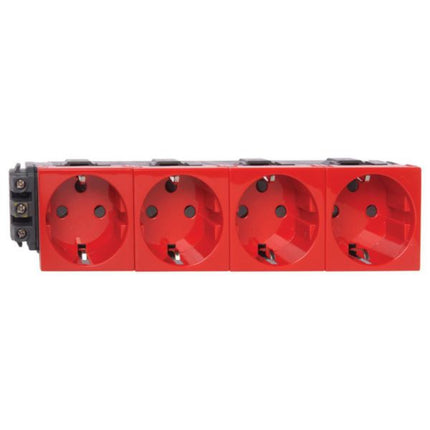

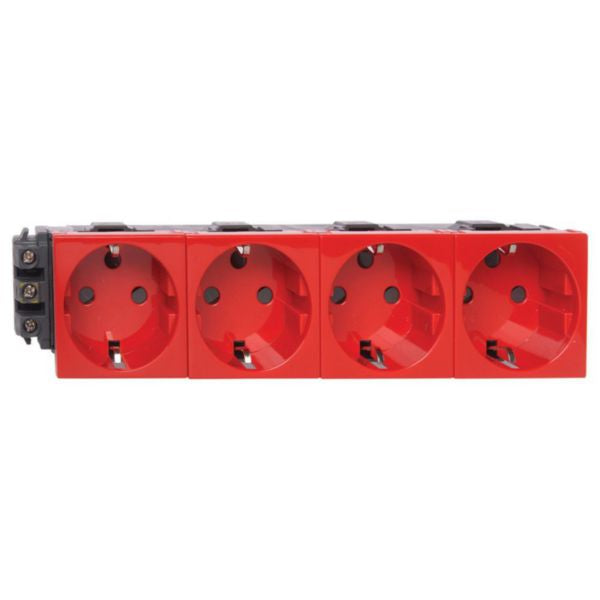

The Mosaic™ Socket 4 x 2P+E is a professional-grade power outlet designed for installation on DLP trunking systems. This tamperproof socket features four 2P+E outlets with enhanced contact protection, making it ideal for commercial and residential applications where safety and reliability are paramount. The socket is constructed with a red plastic housing and operates at 16A nominal current with 250V nominal voltage, supporting both 50-60 Hz frequencies. This modular device is engineered for seamless integration with 65 and 85 mm cover DLP trunking systems using snap mounting engagement. The socket features screw terminals for secure cable connections with support for flexible or rigid cables ranging from 2.5-2.5 mm² cross-section. The tamperproof design with shutters and enhanced contact protection ensures child safety and prevents accidental contact with live parts. With its IK04 impact strength rating and IP20 degree of protection, this socket is suitable for various indoor environments. The loop-through function allows for continuous installation flexibility, while the halogen-free plastic material ensures environmental compliance. Operating temperatures range from -5°C to 35°C, making it suitable for diverse climatic conditions. The product meets strict European standards and is compatible with the comprehensive Mosaic Programme range.

Key Features

Tamperproof design with protective shutters and enhanced contact protection for child safety
Four 2P+E socket outlets with 16A nominal current capacity at 250V
Compatible with 65 and 85 mm DLP trunking systems with snap mounting engagement
Screw terminals supporting flexible or rigid cables from 2.5-2.5 mm² cross-section
Loop-through function allowing continuous installation and modular flexibility
Halogen-free thermoplastic construction meeting environmental compliance standards
IP20 degree of protection with IK04 impact strength rating for durability
Operating temperature range from -5°C to 35°C suitable for diverse environments
Supports both 50-60 Hz frequency for universal compatibility
Red color housing with glossy finish for easy identification and aesthetic integration

Technical Specifications

Specification	Value
Product Type	Socket outlet with protective contact CEE 7/3 (type F)
Number of Socket Outlets	4 x 2P+E
Nominal Current	16 A
Nominal Voltage	250 V
Frequency	50-60 Hz
Number of Modules	8 modules
Connection Type	Screw terminals
Cable Section	2.5-2.5 mm²
Material	Halogen-free thermoplastic
Color	Red (RAL 3020)
Degree of Protection	IP20
Impact Strength Rating	IK04
Device Dimensions	Width: 210 mm, Height: 45 mm, Depth: 45 mm
Built-in Depth	45 mm
Operating Temperature Range	-5°C to +35°C
Storage Temperature Range	-10°C to +70°C
Mounting Method	Wall duct / Snap mounting engagement
Protective Features	Tamperproof with shutters and enhanced contact protection
Loop Through Function	Yes
Voltage Type	AC
Compatible Standards	German standard - Mosaic Programme
Reference Number	077624
EAN Code	3245060776244

Order Legrand Mosaic 4x2P+E Socket Outlet Trunking Screw Terminal Tamperproof Red | 077624 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
