Shop Legrand Mosaic Triple Socket 3x2P+E Automatic Terminals Trunking Red | 077413 In Iraq Best Prices

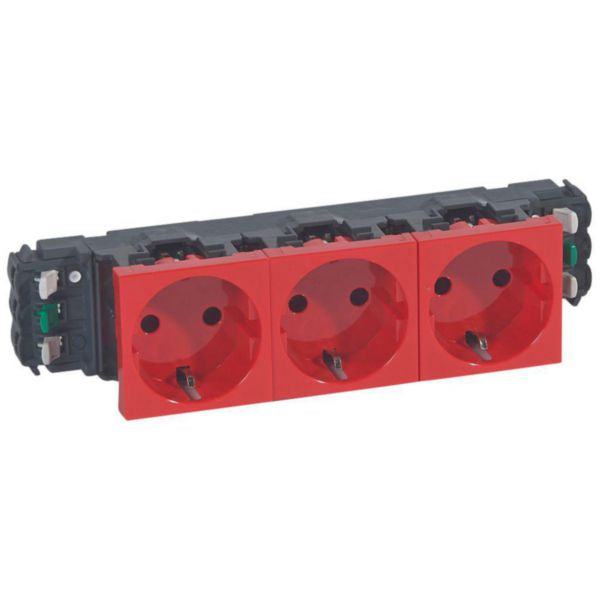

Professional Mosaic™ red socket outlet with 3x2P+E configuration featuring automatic push-in terminals for DLP trunking installation, 16A/250V rated, German standard compliant.

The Mosaic™ Socket 3 x 2P+E is a professional-grade electrical outlet designed for installation on DLP trunking systems. This red socket outlet features automatic push-in clamp terminals that enable direct connection without requiring any tools, making installation intuitive and efficient. The device is built to German standards and is compatible with 65 and 85 mm cover DLP trunking, providing flexible mounting options for various electrical distribution applications. This socket outlet is equipped with enhanced contact protection and features three individual 2P+E socket outlets arranged in a modular configuration. The automatic terminals allow for intuitive disconnection without dismantling the support structure, streamlining maintenance and modifications. With a nominal current rating of 16A at 250V and frequency compatibility of 50-60 Hz, this outlet is suitable for standard residential and commercial electrical installations. The Mosaic™ programme socket offers superior durability with its thermoplastic construction and halogen-free materials, ensuring safety and environmental compliance. The glossy red finish provides excellent visibility for identifying special power supply circuits, while the snap mounting system ensures secure installation on trunking systems. With an IP40 protection rating and IK04 impact strength, this socket is designed to withstand typical installation environments and provide reliable performance.

Key Features

Automatic push-in clamp terminals for tool-free installation and intuitive disconnection
Three 2P+E socket outlets in modular 6-module configuration for flexible power distribution
Enhanced contact protection with shutters for safety and reliability
Compatible with 65 and 85 mm cover DLP trunking systems for versatile mounting
16A/250V rated capacity with 50-60 Hz frequency compatibility for standard electrical applications

Technical Specifications

Specification	Value
Product Model	Socket outlet with protective contact CEE 7/3 (type F)
Number of Socket Outlets	3 x 2P+E
Nominal Current	16 A
Nominal Voltage	250 V
Frequency	50-60 Hz
Connection Type	Push-in clamp (automatic terminals)
Number of Modules	6 modules
Device Width	180 mm
Device Height	45 mm
Device Depth	44 mm
Protection Rating	IP40
Impact Strength	IK04
Material	Thermoplastic (halogen-free)
Color	Red (RAL 3020)
Mounting Method	Snap mounting on DLP trunking (65-85 mm)
Operating Temperature	-5 to +35 °C
Storage Temperature	-10 to +70 °C
Cable Section	2.5 mm²
Contact Protection	Enhanced with shutters
Special Feature	Additional safety power supply (red identification)

Order Legrand Mosaic Triple Socket 3x2P+E Automatic Terminals Trunking Red | 077413 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
