Professional Mosaic™ dual socket outlet (2x2P+E) with automatic terminals for DLP trunking installation. Features enhanced contact protection, 16A capacity, white thermoplastic construction, and tool-free connection system.

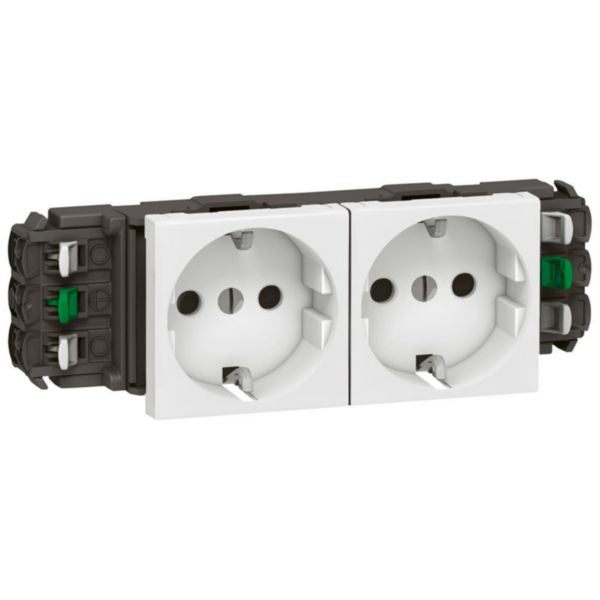

The Mosaic™ Socket 2x2P+E is a premium modular socket outlet designed for installation on DLP trunking systems. This professional-grade electrical component features dual 2P+E sockets with protective contact (CEE 7/3 type F) and automatic push-in clamp terminals for secure, tool-free connection. The socket is manufactured in white thermoplastic material with enhanced contact protection and shutters, making it ideal for both residential and commercial applications requiring reliable power distribution on trunking systems.
This socket outlet combines functionality with safety, featuring a 16A nominal current capacity at 250V with 50-60 Hz frequency compatibility. The device incorporates enhanced contact protection with shutters to prevent accidental contact with live parts. With dimensions of 135mm width, 45mm height, and 44mm depth, it fits seamlessly into standard 65 and 85mm DLP trunking covers. The automatic terminals allow for intuitive disconnection without requiring dismantling of the support structure, ensuring ease of installation and maintenance.
The Mosaic™ socket is halogen-free and complies with international safety standards including VDE, NEMKO, and MEEI certifications. It operates reliably in temperatures ranging from -5°C to 35°C and maintains its integrity in storage conditions up to 70°C. The IP40 protection rating and IK04 impact strength rating ensure durability in typical indoor environments, while the glossy white finish provides a modern aesthetic suitable for contemporary architectural designs.
Key Features
- Dual 2P+E socket outlets with CEE 7/3 type F protective contacts for enhanced electrical safety
- Automatic push-in clamp terminals enabling tool-free installation and intuitive disconnection
- Enhanced contact protection with shutters to prevent accidental contact with live electrical parts
- Compatible with 65mm and 85mm DLP trunking cover systems for flexible installation options
- Halogen-free thermoplastic construction with glossy white finish (RAL 9003 equivalent)
- 16A nominal current capacity at 250V with 50-60 Hz frequency support
- IP40 protection rating and IK04 impact strength for reliable indoor performance
- International certifications including VDE, NEMKO, and MEEI compliance
- Wide operating temperature range from -5°C to 35°C with storage capability to 70°C
- Modular design with loop-through functionality for seamless integration in trunking systems
Technical Specifications
| Specification |
Value |
| Product Type | Socket outlet with protective contact (CEE 7/3 type F) |
| Number of Socket Outlets | 2 |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Connection Type | Push-in clamp (automatic terminals) |
| Cable Section | 2.5-2.5 mm² |
| Material | Thermoplastic (halogen-free) |
| Colour | White (RAL 9003 equivalent) |
| Surface Finish | Glossy |
| Device Width | 135 mm |
| Device Height | 45 mm |
| Device Depth | 44 mm |
| Built-in Depth | 44 mm |
| Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5 to 35 °C |
| Storage Temperature Range | -10 to 70 °C |
| Mounting Method | Wall duct / Snap mounting (engagement) |
| Trunking Compatibility | 65mm and 85mm DLP trunking covers |
| Number of Modules | 4 |
| Contact Protection | Enhanced with shutters |
| Voltage Type | AC |
| With Loop Through Function | Yes |
| International Certifications | VDE, NEMKO, MEEI |
| Reference Number | 077402 |
| EAN Code | 3245060774028 |
