Shop Legrand Mosaic Double Socket 2x2P+E Trunking Screw Terminal Tamperproof Red | 077622 In Iraq Best Prices

Professional dual 2P+E socket outlet for DLP trunking with tamperproof design, screw terminals, and enhanced contact protection. 16A/250V rated with thermoplastic construction and loop-through functionality.

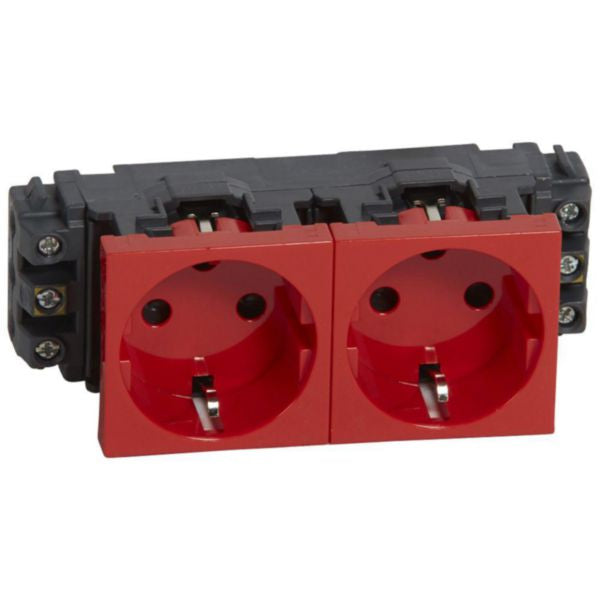

The Mosaic™ Socket 2x2P+E is a professional-grade electrical outlet designed for installation on DLP trunking systems following German standards. This dual socket outlet features protective contact CEE 7/3 (type F) configuration with enhanced contact protection and tamperproof design, making it ideal for both residential and commercial applications. The socket is constructed from high-quality thermoplastic material with a glossy red finish (RAL 3020), ensuring durability and aesthetic appeal in modern installations. This 4-module device is equipped with screw terminals for secure cable connections supporting flexible or rigid conductors from 4-4 mm² cross-section. The outlet operates at 250V with a nominal current rating of 16A across 50-60 Hz frequencies, providing reliable power distribution. The tamperproof feature and enhanced contact protection make it particularly suitable for environments where safety is paramount, including installations accessible to children or in public spaces. The socket features intuitive disconnection without dismantling supports and direct connection requiring no tools, streamlining installation and maintenance procedures. With loop-through functionality and a compact design measuring 120mm width x 45mm height x 45mm depth, this Mosaic socket integrates seamlessly into existing trunking systems. The product maintains an IP20 protection rating and IK04 impact strength, suitable for standard indoor environments with operating temperatures between -5°C and 35°C.

Key Features

Tamperproof design with enhanced contact protection for maximum safety
Dual 2P+E socket outlets (CEE 7/3 type F) with 16A/250V rating
Screw terminal connection supporting 4-4mm² flexible or rigid conductors
Loop-through functionality for daisy-chain installation capability
Intuitive disconnection without dismantling supports and tool-free connection
Compact 4-module design (120x45x45mm) for seamless trunking integration
High-quality thermoplastic construction with glossy red finish (RAL 3020)
IP20 protection rating and IK04 impact strength for standard indoor use
50-60 Hz frequency compatibility for universal power applications
Operating temperature range -5°C to 35°C with storage range -10°C to 70°C

Technical Specifications

Specification	Value
Product Type	Dual Socket Outlet with Protective Contact
Socket Configuration	2x CEE 7/3 (Type F) - 2P+E
Nominal Current	16 A
Nominal Voltage	250 V AC
Frequency Range	50-60 Hz
Number of Modules	4 modules
Connection Type	Screw Terminals
Cable Section Support	4-4 mm² (flexible or rigid)
Material	Thermoplastic (Halogen-free)
Color	Red (RAL 3020)
Dimensions (W x H x D)	120 x 45 x 45 mm
Built-in Depth	45 mm
Protection Rating	IP20
Impact Strength	IK04
Operating Temperature	-5°C to 35°C
Storage Temperature	-10°C to 70°C
Mounting Method	Wall Duct (Snap Mounting)
Contact Protection	Enhanced (Tamperproof)
Loop-Through Function	Yes
Surface Finish	Glossy
Special Features	Additional Safety Power Supply (Red), Tool-Free Connection
Reference Number	077622
EAN Code	3245060776220
Standard Compliance	German Standard (DLP Trunking Compatible)
Installation Type	DLP Trunking System Installation

Order Legrand Mosaic Double Socket 2x2P+E Trunking Screw Terminal Tamperproof Red | 077622 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
