Description

Shop Legrand Mosaic Double Socket 2x2P+E Tamperproof Trunking Red | 077422 In Iraq Best Prices

Premium dual 2x2P+E socket outlet for DLP trunking with tamperproof design, automatic terminals, and enhanced safety features. Red color, 16A 250V rated, modular 4-module design for secure European electrical installations.

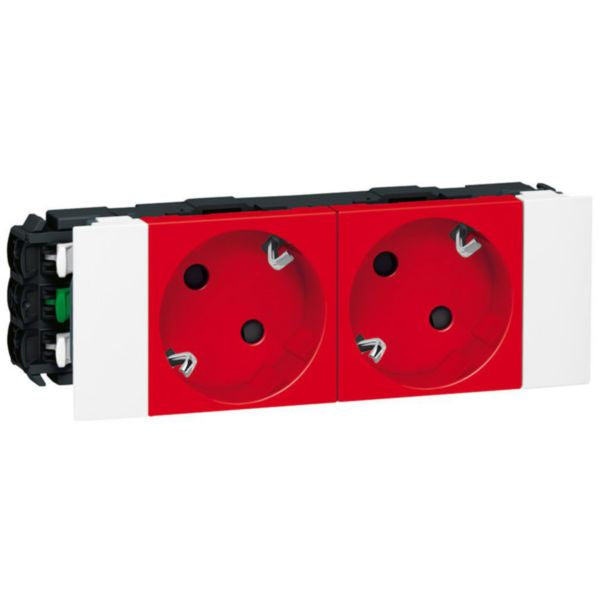

The Mosaic™ Socket 2x2P+E is a premium dual socket outlet designed for installation on DLP trunking systems following German standard specifications. This innovative socket features two protective contact CEE 7/3 (Type F) outlets, making it ideal for applications requiring dual power distribution in residential and commercial environments. The socket is finished in striking red color (RAL 3020) and incorporates advanced safety features including tamperproof design with enhanced contact protection to prevent unauthorized access and accidental contact hazards. This product is engineered with automatic push-in clamp terminals that enable direct connection without requiring any tools, simplifying installation and maintenance procedures. The modular design comprises 4 modules and is specifically configured for mounting on 65mm and 85mm cover DLP trunking in conjunction with dedicated supports and plates. The socket operates at 250V nominal voltage with a 16A nominal current rating, suitable for standard European electrical systems operating at 50-60 Hz frequency. It accommodates rigid cables with cross-sections ranging from 2.5 to 2.5 mm², ensuring reliable connections for various applications. The Mosaic™ Socket combines exceptional durability with user-friendly functionality. It features IP20 degree of protection and IK04 impact strength rating, making it suitable for typical indoor environments. The halogen-free thermoplastic construction ensures environmental compliance and safety standards. With its loop-through function capability and intuitive disconnection system without dismantling the support, this socket outlet delivers superior performance for modern electrical installations requiring both safety and convenience.

Key Features

Dual 2x2P+E protective contact CEE 7/3 (Type F) outlets for enhanced power distribution capability
Tamperproof design with enhanced contact protection to prevent unauthorized access and electrical hazards
Automatic push-in clamp terminals requiring no tools for simplified installation and maintenance
Modular 4-module design for installation on 65mm and 85mm DLP trunking systems
Loop-through function capability with intuitive disconnection system without dismantling support

Technical Specifications

Specification	Value
Product Type	Socket outlet with protective contact CEE 7/3 (Type F)
Number of Socket Outlets	2
Nominal Voltage	250V AC
Nominal Current	16A
Frequency	50-60 Hz
Connection Type	Push-in clamp (automatic terminals)
Cable Section	2.5-2.5 mm² (rigid)
Degree of Protection	IP20
Impact Strength Rating	IK04
Number of Modules	4 modules
Device Dimensions	Width 135mm x Height 45mm x Depth 44mm
Color	Red (RAL 3020)
Material	Halogen-free thermoplastic
Mounting Method	Wall duct / DLP trunking
Operating Temperature	-5 to +35°C
Storage Temperature	-10 to +70°C
Assembly Arrangement	Modular device for domestic switching devices
Contact Protection	Enhanced contact protection with tamperproof design
Surface Finishing	Glossy
Loop Through Function	Yes

Order Legrand Mosaic Double Socket 2x2P+E Tamperproof Trunking Red | 077422 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
