Professional-grade dual socket outlet with 2x2P+E configuration, automatic terminals, and enhanced contact protection for DLP trunking installation. Red safety power supply indicator with IP40 protection and 16A/250V rating.

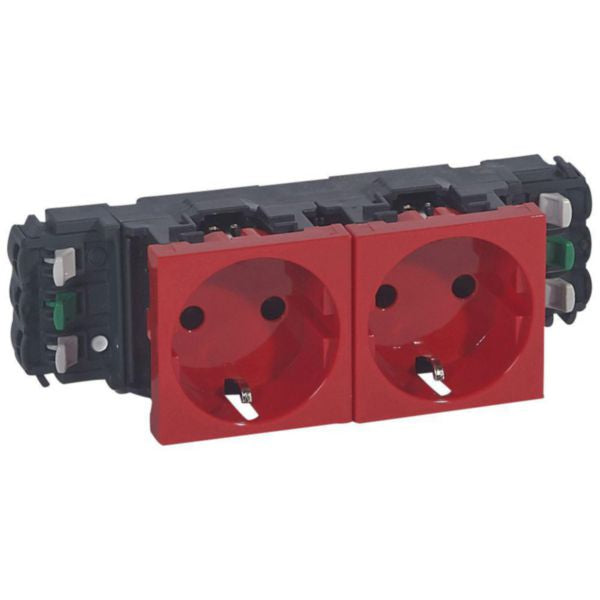

The Mosaic™ Socket 2 x 2P+E is a premium electrical outlet designed for installation on DLP trunking systems, manufactured by Legrand. This socket outlet features protective contact CEE 7/3 (type F) configuration and is specifically engineered for German standard applications. The unit comes in a distinctive red color (RAL 3020) to indicate additional safety power supply functionality. With automatic push-in clamp terminals, this socket provides intuitive, tool-free connection and disconnection capabilities without requiring dismantling of the support structure.
This modular device is designed for seamless integration with 65 and 85 mm cover DLP trunking systems using dedicated supports and plates. The socket outlet offers enhanced contact protection with shutters and features a robust thermoplastic construction that is halogen-free, making it environmentally friendly and safe for residential and commercial applications. The dual socket configuration allows for simultaneous connection of two devices, providing flexible power distribution solutions for modern workspaces and installations.
With a nominal current rating of 16A at 250V and frequency compatibility of 50-60 Hz, this socket meets international electrical standards and certifications including VDE, NEMKO, and OC/CB approvals. The device dimensions of 135mm width x 45mm height x 44mm depth ensure compatibility with standard trunking systems. The IP40 degree of protection and IK04 impact strength rating provide reliable performance in standard indoor environments, while the operating temperature range of -5 to 35°C ensures consistent functionality across various climate conditions.
Key Features
- Dual 2P+E socket outlets for simultaneous device connection
- Automatic push-in clamp terminals requiring no tools for installation
- Enhanced contact protection with integrated shutters
- Red color (RAL 3020) indicates additional safety power supply
- Compatible with 65 and 85 mm DLP trunking systems
- Halogen-free thermoplastic construction for environmental safety
- IP40 degree of protection suitable for standard indoor environments
- IK04 impact strength rating for durability
- 16A/250V nominal rating with 50-60 Hz frequency compatibility
- Certified to VDE, NEMKO, and OC/CB international standards
Technical Specifications
| Specification |
Value |
| Product Type | Socket outlet with protective contact CEE 7/3 (type F) |
| Number of Socket Outlets | 2 |
| Configuration | 2 x 2P+E (two poles plus earth) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Connection Type | Push-in clamp (automatic terminals) |
| Cable Section | 2.5-2.5 mm² |
| Material | Halogen-free thermoplastic |
| Color | Red (RAL 3020) |
| Device Width | 135 mm |
| Device Height | 45 mm |
| Device Depth | 44 mm |
| Built-in Depth | 44 mm |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5 to +35°C |
| Storage Temperature Range | -10 to +70°C |
| Mounting Method | Wall duct / DLP trunking |
| Fastening Type | Snap mounting (engagement) |
| Contact Protection | Enhanced with shutters |
| Special Feature | Additional safety power supply (red) |
| Number of Modules | 4 |
| Voltage Type | AC |
| Certifications | VDE, NEMKO, OC/CB |
| Reference Number | 077412 |
| EAN Code | 3245060774127 |
