Premium Mosaic™ 2P+E socket outlet for DLP trunking systems with automatic terminals, 16A/250V rating, halogen-free construction, and international safety certifications.

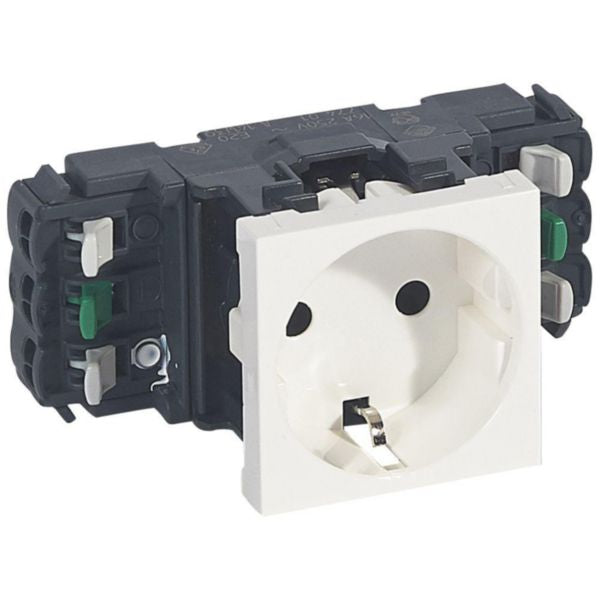

The Legrand Mosaic™ Socket 2P+E is a premium power outlet designed specifically for installation on DLP trunking systems. This socket outlet features the CEE 7/3 (Type F) protective contact configuration, making it ideal for European electrical standards. The socket is engineered with automatic push-in clamp terminals that require no tools for installation, ensuring intuitive and efficient setup. With enhanced contact protection and a rated capacity of 16A at 250V, this socket provides reliable power distribution for residential and commercial applications.
This Mosaic™ socket is manufactured from high-quality thermoplastic material and features a glossy white finish that complements modern interior designs. The device measures 90mm in width and 45mm in height, fitting seamlessly into standard DLP trunking systems. It incorporates a loop-through function, allowing multiple outlets to be connected in series for expanded power distribution. The socket is halogen-free and complies with international safety standards including VDE, NEMKO, and other certification bodies, ensuring maximum safety and reliability in any installation environment.
The socket outlet is designed with a modular configuration consisting of 2 modules, making it compatible with other Mosaic™ range products. It operates across 50-60 Hz frequency range and maintains functionality across operating temperatures from -5°C to 35°C. The IP40 protection rating and IK04 impact strength rating ensure durability against dust and minor impacts, making it suitable for both indoor residential and commercial installations where reliable power access is essential.
Key Features
- CEE 7/3 (Type F) protective contact configuration for European electrical standards
- Automatic push-in clamp terminals requiring no tools for installation
- Enhanced contact protection with IP40 protection rating
- Loop-through function allowing series connection of multiple outlets
- Halogen-free thermoplastic construction with glossy white finish
- 16A/250V nominal rating with 50-60 Hz frequency compatibility
- Modular 2-module design compatible with Mosaic™ range products
- IK04 impact strength rating for durability against minor impacts
- Operating temperature range -5°C to 35°C for reliable performance
- International safety certifications including VDE, NEMKO, and MEEI standards
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic™ Socket 2P+E for DLP Trunking Installation |
| Reference Number | 077401 |
| EAN Code | 3245060774011 |
| Socket Type | CEE 7/3 (Type F) Protective Contact |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Number of Phases | 1 Phase |
| Number of Active Contacts | 2 Round Contacts |
| Connection Type | Push-in Clamp (Automatic Terminals) |
| Material | Thermoplastic (Halogen-free) |
| Color | White (RAL 9003) |
| Surface Finishing | Glossy |
| Device Width | 90 mm |
| Device Height | 45 mm |
| Device Depth | 44 mm |
| Built-in Depth | 44 mm |
| Number of Modules | 2 Modules |
| Number of Socket Outlets | 1 Socket Outlet |
| Protection Degree (IP) | IP40 |
| Impact Strength (IK) | IK04 |
| Mounting Method | Wall Duct (DLP Trunking) |
| Type of Fastening | Snap Mounting (Engagement) |
| Cable Section | 2.5-2.5 mm² |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Voltage Type | AC (Alternating Current) |
| Loop Through Function | Yes |
| Enhanced Contact Protection | Yes |
| Hinged Lid | No |
| On/Off Switch | No |
| Function Lighting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Smart Home Compatible | Not Compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Certifications | VDE-40021824, NEMKO-P23227033, MEEI-UP 69265956 002, OC/CB-FR_722156 |
| Programme | Mosaic™ Programme |
| Brand | Legrand |
| Standard | German Standard (DLP Trunking Compatible) |
