Shop Legrand Mosaic Single USB Socket 5V 750mA 1 Module Aluminium | 079391 In Iraq Best Prices
Premium Mosaic USB charging socket with 5V/750mA output, aluminium finish, IEC 62684 compliant, ideal for smartphones and portable devices with energy-efficient 0.1W passive mode.

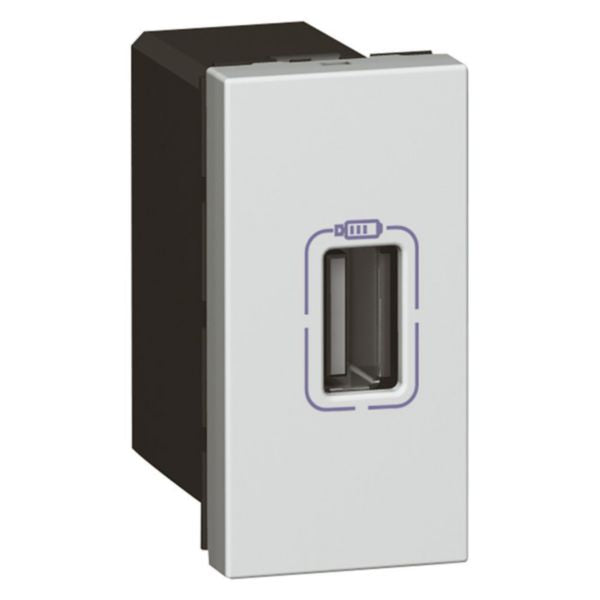

The Mosaic™ Single USB Socket is a premium charging solution designed for modern homes and commercial buildings. This high-quality USB charging socket delivers 5V at 750mA output, making it ideal for recharging portable devices such as smartphones and tablets. Manufactured by Legrand, a global leader in electrical and digital building infrastructure, this socket combines reliability with contemporary design aesthetics. The device features a sleek aluminium finish in RAL 7040 colour that complements any interior décor.
This USB socket is engineered to meet international standards including IEC 62684:2011-01 and offers exceptional energy efficiency with a passive mode consumption of just 0.1W. The socket features a robust 2P+E tap-off connection via 2.5mm² screw terminals, ensuring secure and reliable electrical connections. With a single USB-A port, it provides convenient charging for one device at a time, making it perfect for bedside tables, home offices, or commercial reception areas.
The Mosaic™ programme mechanism is designed for flush-mounted installation with a built-in depth of 32.5mm and operates reliably across a wide voltage range of 100-240V at 50-60Hz frequency. The device is rated for IP40 protection and IK04 impact strength, ensuring durability in residential and small commercial environments. With halogen-free materials and compliance with modern electrical safety standards, this USB socket represents a smart investment for contemporary electrical installations.
Key Features
- Single USB-A Port for charging smartphones and portable devices
- 5V/750mA output power with IEC 62684:2011-01 compliance
- Energy-efficient design with 0.1W passive mode consumption
- Aluminium finish (RAL 7040) with modern aesthetic design
- Flush-mounted installation with 2P+E screw terminal connections
- Wide voltage range support: 100-240V at 50-60Hz frequency
- IP40 protection rating and IK04 impact strength
- Halogen-free materials for environmental safety
- 1 module design for compact installation
- Supplied cordless with secure terminal marking indication
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic Single USB Socket |
| Reference Number | 079391 |
| EAN Code | 3245060793913 |
| Brand | Legrand |
| Programme | Mosaic™ |
| Number of Modules | 1 |
| USB Ports - Type A | 1 |
| USB Ports - Type C | 0 |
| Output Voltage | 5V (5-5V) |
| Output Current | 750mA (Max 1500mA) |
| USB Output Power | 7.5W |
| Operating Voltage Range | 100-240V AC |
| Frequency | 50-60Hz |
| Power Consumption | 0.066W (Passive mode: 0.1W) |
| Supply Current | 0.25A |
| Connection Type | Screwed Terminal |
| Terminal Capacity | 1.5-2.5mm² |
| Cable Section | 1.5-2.5mm² |
| Number of Terminals | 2 (2P+E) |
| Mounting Method | Flush-mounted |
| Device Width | 22.5mm |
| Device Height | 45mm |
| Device Depth | 41mm |
| Built-in Depth | 32.5mm |
| Minimum Box Depth | 40mm |
| Colour | Aluminium |
| RAL Number | 7040 |
| Degree of Protection | IP40 |
| Impact Strength | IK04 |
| Operating Temperature Range | 5-35°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Power Delivery | No |
| Wireless Capability | No |
| Antimicrobial Treatment | No |
| Halogen Free | Yes |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Stress Test Conformity | No (1000V) |
| Cable Nature | Flexible or Rigid |
| Standard Compliance | IEC 62684:2011-01 |
| Supplied | Cordless |
Order Legrand Mosaic Single USB Socket 5V 750mA 1 Module Aluminium | 079391 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
