Shop Legrand Mosaic RJ45 Socket Inclined 45° Category 6 STP 2 Modules White | 76507 In Iraq Best Prices
Professional Category 6 STP RJ45 socket with 45° tilt angle, supporting 1 GigaBit/s data transmission, toolless connection, and PoE capability. Suitable for residential and commercial installations.

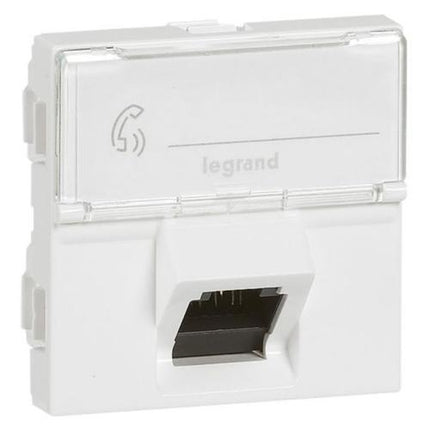

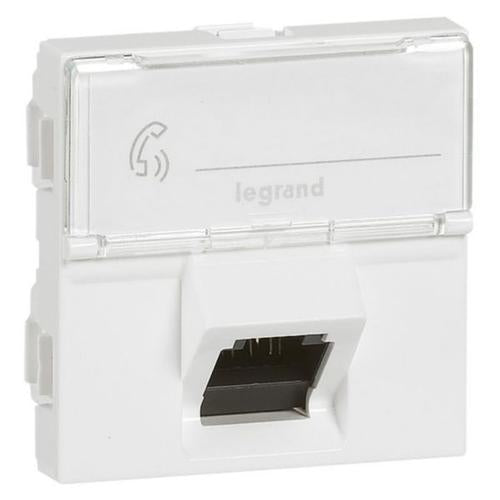

The Mosaic™ RJ45 Socket Inclined 45° Category 6 STP is a professional-grade networking component designed for modern residential and commercial installations. This 2-module socket features a 45-degree tilt angle that prevents cord and socket wear and tear, ensuring long-term durability and reliable performance. Supporting data rates up to 1 GigaBit/s, it enables rapid file downloads and seamless streaming experiences. The socket is equipped with a transparent protective dust cover and toolless quick-connection technology for easy installation.
This Category 6 STP (Shielded Twisted Pair) socket is fully compliant with international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, making it suitable for both residential and commercial applications. It supports high-capacity Power over Ethernet (PoE) applications, allowing electric power transmission along with data on twisted pair Ethernet cabling. The socket features insulation displacement connectors (IDC) for secure connections and is compatible with RJ11, RJ12, and RJ45 plugs.
The modular slot system design allows for perfect and easy multigang setting, with support frames that can be seamlessly joined to ease installation. It can be installed in standard flush mounting boxes without requiring additional wall grooves or extensive cabling work. The white finish (RAL 9003) provides a clean, professional appearance suitable for any interior design. With an operating temperature range of -40 to 70°C and halogen-free construction, this socket meets modern safety and environmental standards.
Key Features
- 45° tilt angle prevents cord and socket wear and tear for extended durability
- Category 6 STP supports data rates up to 1 GigaBit/s for rapid downloads and streaming

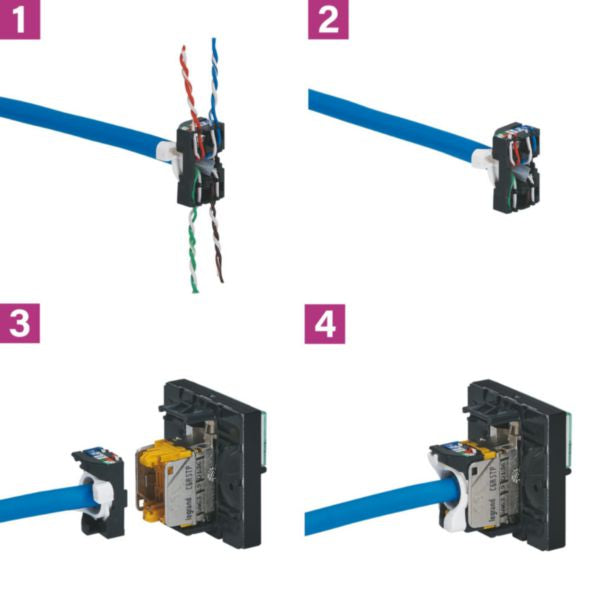

- Toolless quick-connection with integrated crimping for fast and easy installation
- High-capacity Power over Ethernet (PoE) support for simultaneous power and data transmission
- Modular slot system design allows perfect multigang setting and seamless frame joining
- Transparent protective dust cover keeps connector clean and protected
- Compatible with RJ11, RJ12, and RJ45 plugs for flexible connectivity options
- Flush-mounted installation without requiring additional wall grooves or cabling
- Compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
- Halogen-free construction meets modern safety and environmental standards
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket Inclined 45° |
| Category | Category 6 (Cat 6) |
| Shielding Type | STP (Shielded Twisted Pair) |
| Data Rate | Up to 1 GigaBit/s |
| Number of Modules | 2 modules |
| Connector Type | RJ45 8(8) Insulation Displacement Connector (IDC) |
| Connection Method | Toolless quick connection with integrated crimping |
| Outlet Direction | Inclined 45° |
| Colour | White |
| RAL Number | 9003 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42.8 mm |
| Built-in Depth | 27.2 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Type of Fastening | Engage (snap) |
| Dust Cover | Transparent protective dust cover |
| Colour Coding | Yes |
| Terminal Marking Indication | Yes |
| Label Space | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Shielded Buses | Yes |
| Separate Earthing Connection | No |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Power over Ethernet (PoE) | High-capacity PoE support |
| Compatible Plug Types | RJ11, RJ12, RJ45 |
| Reference Number | 076507 |
| EAN Code | 3245060765071 |
