Shop Legrand Mosaic RJ45 Socket Inclined 45° Category 5e UTP 2 Modules White | 76501 In Iraq Best Prices
Premium Mosaic RJ45 Category 5e socket with 45° incline design, supporting 1 GigaBit/s data rates and PoE applications. Features toolless quick connection, 2-module configuration, and transparent dust cover for reliable networking in residential and commercial settings.

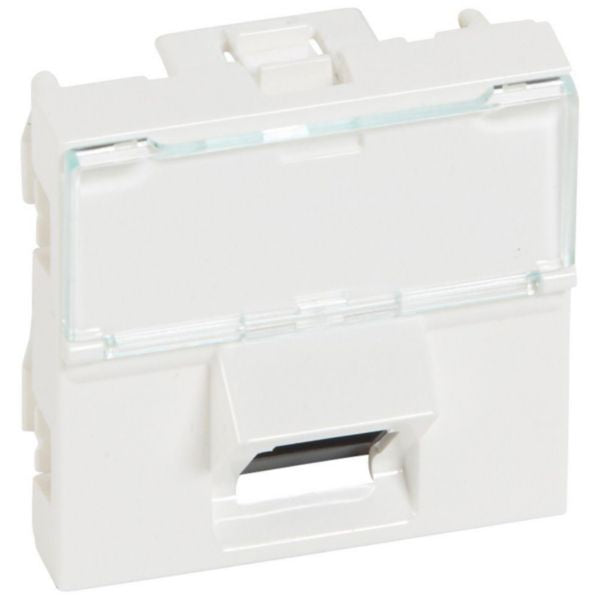

The Mosaic RJ45 Socket Inclined 45° Category 5e UTP 2 Modules White (REF. 076501) is a premium networking component designed for modern residential and commercial installations. This flush-mounted socket features an innovative 45° inclined angle design that effectively prevents cord and socket wear and tear, extending the lifespan of your network connections. The socket supports high-capacity Power over Ethernet (PoE) applications, allowing electric power to be transmitted along with data on twisted pair Ethernet cabling, making it ideal for diverse networking needs.
Built to international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, this RJ45 socket delivers data rates up to 1 GigaBit/s, enabling rapid file transfers of up to 1 GigaByte in just 8 seconds. The socket comes equipped with a transparent protective dust cover and rocker plates, featuring toolless quick connection technology with integrated crimping for hassle-free installation. Its compatibility with RJ11, RJ12, and RJ45 plugs provides exceptional versatility for various applications.
The 2-module configuration integrates seamlessly into standard flush mounting boxes without requiring additional wall modifications or complex cabling work. The slot system allows perfect multigang settings with easily joinable support frames. Finished in RAL 9003 white with color coding and terminal marking indication, this socket is suitable for commercial and residential installations, online gaming, streaming, and applications requiring low latency performance.
Key Features
- 45° inclined angle design prevents cord and socket wear and tear
- Supports high-capacity Power over Ethernet (PoE) applications for simultaneous data and power transmission
- Delivers data rates up to 1 GigaBit/s enabling rapid 1GB file transfers in 8 seconds
- Toolless quick connection with integrated crimping for fast and easy installation
- Compatible with RJ11, RJ12, and RJ45 plugs for exceptional versatility
- Transparent protective dust cover included for connector protection
- 2-module configuration integrates seamlessly into standard flush mounting boxes
- Conforms to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C
- Suitable for commercial, residential, gaming, and streaming applications
- Halogen-free construction for environmental safety
Technical Specifications
| Specification |
Value |
| Product Reference | 076501 |
| EAN Code | 3245060765019 |
| Brand | Legrand Mosaic |
| Category | RJ45 Plugs and Connectors |
| Socket Type | RJ45 8(8) with Insulation Displacement Connector |
| Category Rating | Category 5e UTP |
| Data Transfer Rate | Up to 1 GigaBit/s |
| Number of Modules | 2 modules |
| Color | White (RAL 9003) |
| Outlet Direction | Inclined 45° |
| Installation Type | Flush-mounted |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 40.7 mm |
| Built-in Depth | 25.1 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Type of Fastening | Engage (Snap) |
| Connector Configuration | 1 connector, modular device for domestic switching |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| With Dust Cover | Yes, transparent protective dust cover included |
| With Label Space | Yes |
| Color Coding | Yes |
| Terminal Marking Indication | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| International Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Power over Ethernet Support | Yes, supports high-capacity PoE applications |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| Rocker Plates | Included, to be equipped with support frames and plates |
| Connection Method | Toolless quick connection with integrated crimping |
| Indoor Use | Yes |
