Premium 2-module RJ45 controlled access socket with Category 5e FTP support, 1 GigaBit/s data rate, key lock security system, and transparent dust cover protection for secure residential and commercial network installations.

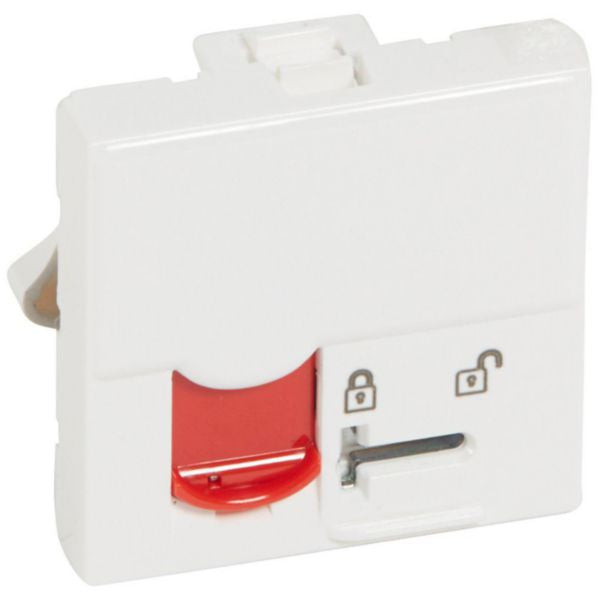

The Mosaic™ RJ45 Socket Controlled Access Category 5e FTP is a premium networking component designed for modern residential and commercial installations. This 2-module device features a white finish with red shutter protection, offering secure controlled access to your network connections. The socket supports data rates up to 1 GigaBit/s, enabling rapid file transfers and seamless streaming experiences. With its innovative key lock system, users can secure the socket to prevent connector damage or unauthorized access once a cord is plugged in, making it ideal for secure commercial and residential environments.
Equipped with a transparent protective dust cover, this RJ45 socket ensures your connections remain clean and protected from environmental contaminants. The device features toolless connectors with fast integration thanks to integrated crimping technology, compatible with RJ11, RJ12, and RJ45 plugs. Supporting high-capacity Power over Ethernet (PoE) applications, it allows electric power to be transmitted alongside data on twisted pair Ethernet cabling. The modular slot system enables perfect multigang configuration without requiring additional wall groove cutting or complex cabling work.
This product conforms to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring reliable performance for indoor use. The flush-mounted installation capability makes it versatile for various mounting scenarios including standard flush mounting boxes, duct installations, and floor box applications. With its IP20 degree of protection and IK03 impact strength rating, this socket provides dependable performance in demanding environments.
Key Features
- 1 GigaBit/s data rate for rapid file downloads and seamless streaming
- Key lock security system prevents connector damage and unauthorized access
- Transparent protective dust cover keeps connections clean and protected
- Toolless quick connection with integrated crimping technology
- High-capacity Power over Ethernet (PoE) support for combined power and data transmission
- Compatible with RJ11, RJ12, and RJ45 plugs
- Modular slot system for perfect multigang configuration
- Flush-mounted, duct, and floor box installation options
- Conforms to ISO/IEC 11801, EN 50173-1, and TIA/EIA 568 C standards
- IP20 degree of protection with IK03 impact strength rating
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket with Controlled Access |
| Category | Category 5e (Cat 5e) |
| Connector Type | RJ45 8(8) |
| Data Rate | Up to 1 GigaBit/s |
| Shielding Type | FTP (Foiled Twisted Pair) |
| Number of Modules | 2 modules |
| Color | White (RAL 9003) with red shutter |
| Installation Type | Flush-mounted, duct, floor box |
| Connection Type | Insulation displacement connector (toolless) |
| Fastening Method | Engage (snap) |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Dust Cover | Yes, transparent protective cover included |
| Key Lock System | Yes, for security and connector protection |
| PoE Support | Yes, high-capacity Power over Ethernet compatible |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Color Coding | Yes |
| Terminal Marking | Yes |
| Label Space | Yes |
| Suitable for Number of Connectors | 1 |
| Reference Number | 076598 |
| EAN Code | 3245060765989 |
