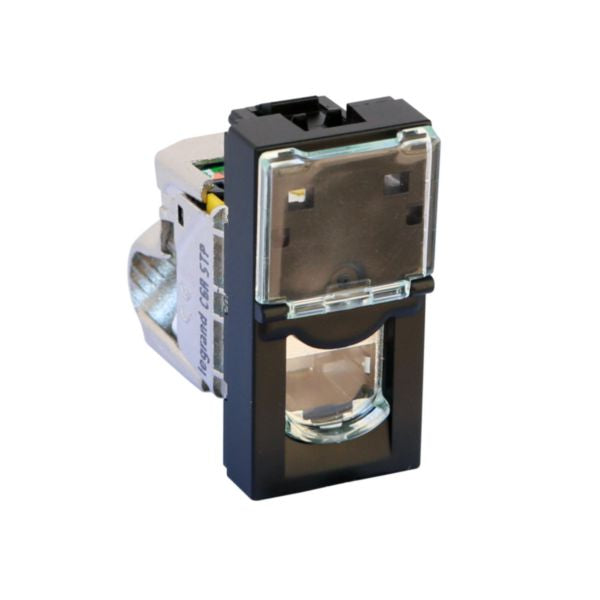

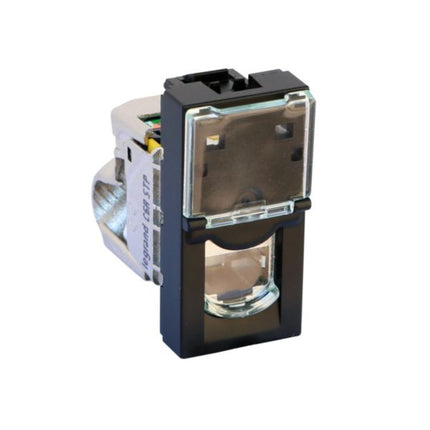

Shop Legrand Mosaic RJ45 Socket Category 6A UTP 1 Module Matt Black | 079173L In Iraq Best Prices
Professional-grade RJ45 Category 6A UTP socket with toolless connection, PoE support, and transparent dust cover. Single-module matt black design suitable for high-speed networking up to 10 Gbps.
The Mosaic™ RJ45 socket category 6A U/STP is a professional-grade network connectivity solution designed for high-speed data transmission up to 10 Gigabits per second. This single-module socket features shielded twisted pair (U/STP) construction and is equipped with a transparent protective dust cover to maintain connector integrity. The device supports high-capacity Power over Ethernet (PoE) applications, allowing both data transmission and electric power to be delivered simultaneously over twisted pair Ethernet cabling. Conforming to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, this socket is ideal for both commercial and residential installations.
This innovative socket features toolless connector technology with fast connection capabilities thanks to integrated crimping functionality. The design is compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, providing versatile connectivity options. The slot system allows for perfect and easy multigang settings, with support frames that can be seamlessly joined to facilitate installation. Installation is straightforward as it can be installed in a standard single flush mounting box without requiring additional wall groove cutting or complex cabling arrangements.
The Mosaic RJ45 socket is particularly suitable for IP and analog phones, making it excellent for applications requiring low latency such as downloads, streaming, or online gaming. With its matt black finish, 1-module configuration, and supplied rocker plates, this product combines aesthetic appeal with functional excellence. The device operates reliably across temperatures ranging from -40°C to 70°C and features an IK04 degree of impact strength, ensuring durability in various installation environments.
Key Features
- Category 6A U/STP shielded cable support for up to 10 Gigabits per second data rate
- High-capacity Power over Ethernet (PoE) applications support for simultaneous power and data transmission
- Toolless connector with integrated crimping for fast and easy installation
- Transparent protective dust cover to maintain connector integrity and cleanliness
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity options
- Slot system design for perfect multigang settings and seamless frame joining
- Suitable for commercial and residential installations without additional wall preparation
- Ideal for IP and analog phones with low latency performance for streaming and gaming
- International standards compliance: ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C
- Wide operating temperature range from -40°C to 70°C for reliable performance
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic™ RJ45 Socket Category 6A UTP 1 Module Matt Black |
| Reference Number | 079173L |
| EAN Code | 3414972094191 |
| Category | 6A (IEC) |
| Connector Type | RJ45 8(8) |
| Cable Type | Category 6A U/STP - Shielded Twisted Pair |
| Data Rate | Up to 10 Gigabits per second |
| Connection Type | Insulation Displacement Connector (IDC) |
| Number of Modules | 1 module |
| Colour | Matt Black |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 46.5 mm |
| Built-in Depth | 31 mm |
| Maximum Input Cable Diameter | 9 mm |
| Type of Fastening | Engage (Snap) |
| Mounting Method | Flush-mounted |
| Assembly Arrangement | Modular device for domestic switching devices |
| Outlet Direction | Straight |
| Dust Cover | Yes - Transparent protective dust cover |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Colour Coding | Yes |
| Terminal Marking | Yes - With label space |
| Shielded Buses | Yes |
| Separate Earthing Connection | No |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Installation Type | Duct installation, Floor box/subfloor mounted, Standard flush mounting box |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Indoor/Outdoor | Indoor use only |
| Power over Ethernet Support | Yes - High capacity PoE applications |
| Compatible Plugs | RJ11, RJ12, RJ45 |
