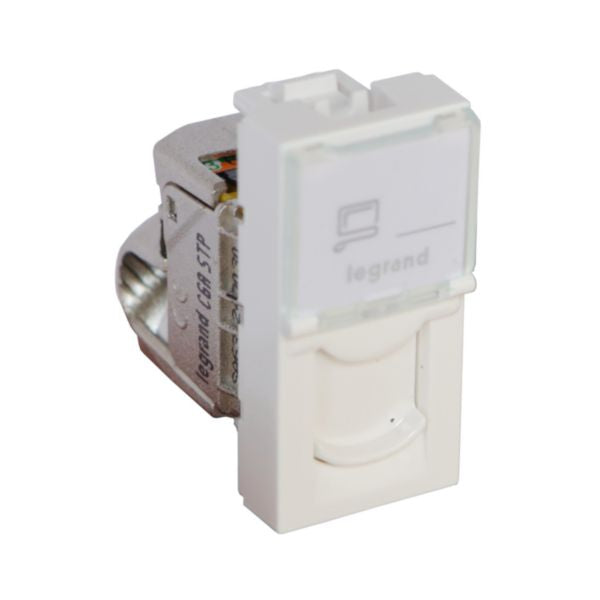

Shop Legrand Mosaic RJ45 Socket Category 6A STP White Antimicrobial | 76584 In Iraq Best Prices
Premium RJ45 Category 6A STP socket with antimicrobial silver treatment, 10Gbps data transmission, toolless installation, and compliance with ISO/IEC 11801 standards for modern networking requirements.
The Mosaic RJ45 Category 6A STP socket is a premium networking solution designed for modern residential and commercial installations. This single-module flush-mounted device delivers data transmission rates up to 10 Gigabit/s, making it ideal for high-speed internet applications, streaming, online gaming, and professional data transfer. The socket features advanced shielded twisted pair (STP) technology that ensures superior signal integrity and reduced electromagnetic interference, providing reliable connectivity for demanding network environments.
Equipped with antimicrobial treatment containing silver compounds, this socket actively prevents bacterial growth on its surface, making it an excellent choice for healthcare facilities, hospitality venues, and hygiene-conscious installations. The white finish (RAL 9003) complements modern interior design while maintaining professional aesthetics. The connector features toolless quick-connection technology with integrated crimping, allowing for fast and efficient installation without specialized tools. The transparent protective dust cover safeguards the connector during storage and installation, ensuring optimal performance upon deployment.
Fully compliant with international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, this device is suitable for commercial and residential applications including IP and analog phones. The modular slot system enables perfect multigang settings with support frames that can be seamlessly joined, eliminating the need for additional wall grooves or complex cabling. With a compact design and IP20 protection rating, it delivers professional-grade performance in a space-efficient package.
Key Features
- RJ45 Category 6A STP technology supporting data rates up to 10 Gigabit/s for high-speed networking
- Antimicrobial silver compound treatment prevents bacterial growth on socket surface
- Toolless quick-connection design with integrated crimping for fast professional installation
- Transparent protective dust cover included for connector protection during storage and installation
- Modular slot system enables seamless multigang configuration without additional wall modifications
- Compatible with RJ11, RJ12, and RJ45 plugs for flexible connectivity options
- Supports high-capacity Power over Ethernet (PoE) applications for integrated power delivery
- Flush-mounted installation suitable for commercial and residential applications
- White finish (RAL 9003) complements modern interior design aesthetics
- IP20 protection rating with IK04 impact resistance for reliable performance
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Network Socket Module |
| Category | Category 6A (IEC) - 10 Gigabit/s |
| Connector Type | RJ45 8(8) with STP (Shielded Twisted Pair) |
| Connection Technology | Insulation Displacement Connector (IDC) with toolless quick connection |
| Number of Modules | 1 module |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Fastening Method | Engage (snap) type |
| Color | White (RAL 9003) |
| Antimicrobial Treatment | Yes - Silver compound for bacterial prevention |
| Device Dimensions | Width: 22.5 mm, Height: 45 mm, Depth: 46.5 mm |
| Built-in Depth | 31 mm |
| Protection Rating | IP20 |
| Impact Strength | IK04 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Shielded Buses | Yes |
| Dust Cover | Yes - Transparent protective cover included |
| Label Space | Yes |
| Terminal Marking | Yes - Color coding included |
| Halogen Free | Yes |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Reference Number | 076584 |
| EAN Code | 3245060765842 |
| Power over Ethernet (PoE) | Supports high-capacity PoE applications |
