Shop Legrand Mosaic RJ45 Socket Category 6A STP 2 Modules White Antimicrobial | 76585 In Iraq Best Prices
Premium Category 6A STP RJ45 socket with antimicrobial finish, 10Gbit/s data rate, dust cover protection, and toolless installation for modern hygienic environments

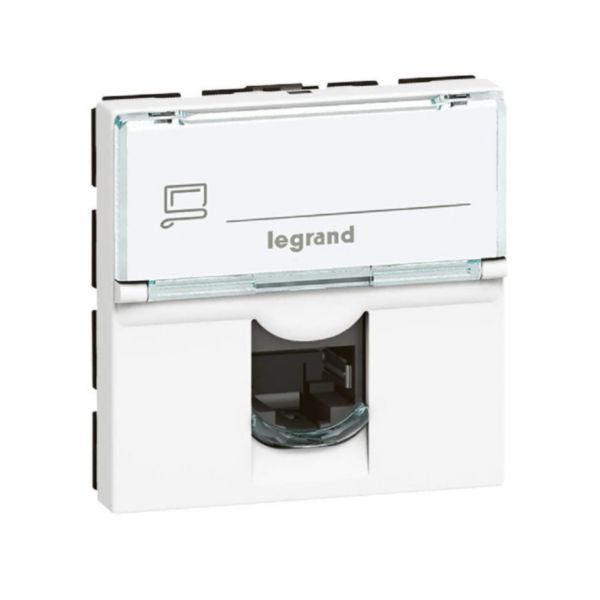

The Mosaic RJ45 Socket Category 6A STP is a premium high-speed data connectivity solution designed for modern buildings and hygienic environments. This advanced 2-module flush-mounted socket delivers exceptional performance with data rates up to 10Gbit/s, making it ideal for demanding network applications and high-capacity Power over Ethernet (PoE) installations. The socket features an innovative antimicrobial white finish with integrated silver ions that effectively inhibit bacterial growth on the surface, providing enhanced hygiene and safety for critical environments such as healthcare facilities, laboratories, and food processing areas.
Designed with user convenience in mind, the Mosaic RJ45 Socket comes equipped with a protective dust cover that isolates electrical contacts when no plug is inserted, ensuring maximum safety and longevity. The toolless quick-connection system featuring integrated crimping technology enables rapid, effortless installation without specialized tools. The socket is fully compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, offering versatile connectivity options for various applications. Its modular 2-module design (45x45mm) seamlessly integrates into Mosaic systems and can be installed in standard flush mounting boxes, duct systems, or floor boxes without requiring additional wall modifications.
This Category 6A STP socket conforms to international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568C, guaranteeing reliable performance and compatibility. The shielded design with separate earthing connection ensures superior noise immunity and signal integrity for critical data transmission. With its impact-resistant IK04 rating, wide operating temperature range (-40 to 70°C), halogen-free construction, and color-coded terminal marking, the Mosaic RJ45 Socket represents the pinnacle of professional networking infrastructure.
Key Features
- High-speed Category 6A STP connectivity supporting data rates up to 10Gbit/s for rapid file transfers and advanced network performance
- Antimicrobial white finish with integrated silver ions that inhibit bacterial growth, ideal for hygiene-critical environments
- Integrated dust cover with protective isolation of electrical contacts for enhanced safety and component longevity
- Toolless quick-connection system with integrated crimping technology enabling fast, effortless professional installation
- Modular 2-module design (45x45mm) compatible with Mosaic systems and standard flush mounting boxes, ducts, and floor boxes
- Full compliance with international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568C
- High-capacity Power over Ethernet (PoE) support for simultaneous data and electrical power delivery
- Shielded design with color-coded terminal marking for superior noise immunity and signal integrity
- Wide operating temperature range (-40 to 70°C) and IK04 impact resistance for reliable performance in diverse conditions
- Halogen-free construction and separate earthing connection for environmental responsibility and electrical safety
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket Category 6A STP |
| Data Rate | 10Gbit/s |
| Connector Type | RJ45 8(8) |
| Category Rating | 6A (IEC) |
| Module Configuration | 2 modules (45x45mm) |
| Installation Type | Flush-mounted, duct, floor box |
| Connection Technology | Insulation displacement connector with toolless quick connection |
| Shielding | Shielded housing with separate earthing connection |
| Color | White (RAL 9003) |
| Antimicrobial Treatment | Yes - Silver ion technology |
| Dust Cover | Yes - Integrated protective cover |
| Degree of Protection | IP20 |
| Impact Resistance | IK04 |
| Operating Temperature Range | -40 to 70°C |
| Storage Temperature Range | -40 to 70°C |
| Device Dimensions | Width: 45mm, Height: 45mm, Depth: 46.5mm |
| Built-in Depth | 31mm |
| Maximum Input Cable Diameter | 9mm |
| Fastening Type | Engage (snap) |
| Terminal Marking | Yes - Color coded |
| Halogen Free | Yes |
| Power over Ethernet Support | Yes - High-capacity PoE compatible |
| Compatible Plug Types | RJ11, RJ12, RJ45 |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568C |
| SKU/Reference | 076585 |
| EAN Code | 3414972953610 |
| Brand | Legrand |
| Product Line | Mosaic |
Order Legrand Mosaic RJ45 Socket Category 6A STP 2 Modules White Antimicrobial | 76585 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
