Shop Legrand Mosaic RJ45 Socket Category 6A STP 1 Module White | 76573 In Iraq Best Prices
Professional-grade RJ45 Category 6A STP connector supporting 10 GigaBit/s data rates with toolless installation, PoE compatibility, and IP20 protection for commercial and residential networking applications.

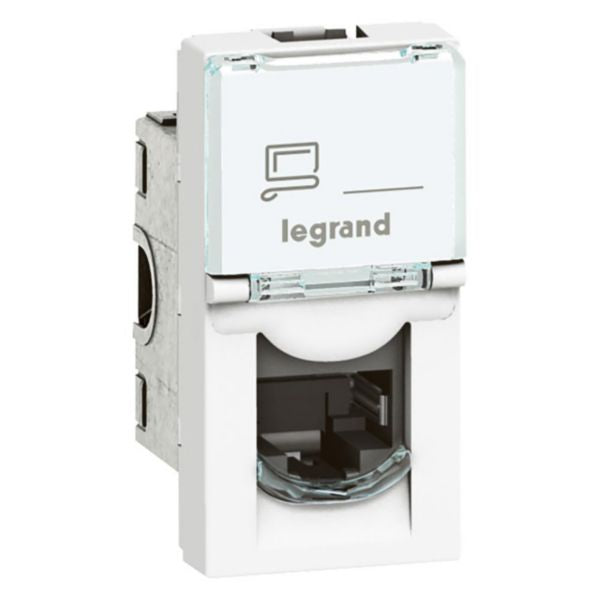

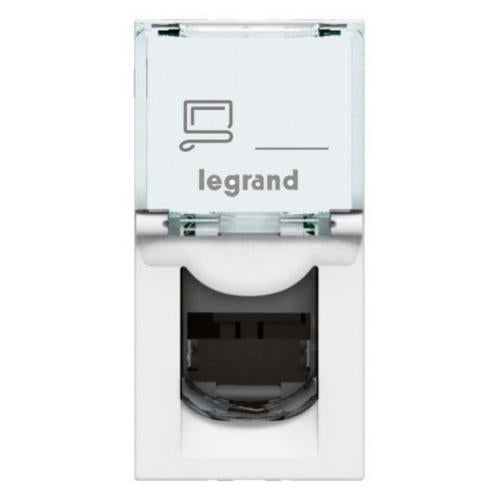

The Mosaic™ RJ45 socket category 6A STP 1 module white (REF. 076573) is a professional-grade networking connector designed for high-speed data transmission. This flush-mounted device supports data rates up to 10 GigaBit/s, enabling rapid file transfers and seamless streaming capabilities. The socket features shielded twisted pair (STP) technology that provides enhanced protection against electromagnetic interference, making it ideal for demanding commercial and residential installations.
Equipped with a transparent protective dust cover, this RJ45 connector ensures long-term reliability and maintains connection integrity. The toolless connector design with integrated crimping allows for quick and easy installation without specialized equipment. Compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, this versatile module supports high-capacity Power over Ethernet (PoE) applications, enabling the transmission of electrical power alongside data through twisted pair Ethernet cabling.
The Mosaic™ range combines aesthetic design with technical excellence, featuring a modular device system that allows for perfect multigang settings. The support frames can be seamlessly joined, facilitating effortless installation in standard flush mounting boxes without requiring additional wall modifications. Conforming to international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, this white RJ45 socket is halogen-free and rated for IP20 protection with IK04 impact strength.
Key Features
- RJ45 Category 6A STP with data rates up to 10 GigaBit/s for ultra-fast downloads and streaming
- High-capacity Power over Ethernet (PoE) support for simultaneous power and data transmission
- Transparent protective dust cover for long-term connector protection and reliability
- Toolless connector with integrated crimping for quick and easy installation without specialized equipment
- Shielded twisted pair technology providing enhanced protection against electromagnetic interference
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity options
- Modular design allowing perfect multigang settings with seamlessly joined support frames
- Flush-mounted installation in standard boxes without additional wall modifications
- Halogen-free construction meeting environmental and safety standards
- Conforms to ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
Technical Specifications
| Specification |
Value |
| Product Reference | 076573 |
| EAN Code | 3245060765736 |
| Brand | Legrand |
| Product Line | Mosaic™ |
| Connector Type | RJ45 8(8) |
| Category | Category 6A (IEC) |
| Shielding Type | STP (Shielded Twisted Pair) |
| Data Rate | Up to 10 GigaBit/s |
| Number of Modules | 1 module |
| Color | White (RAL 9003) |
| Connection Type | Insulation Displacement Connector (IDC) |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Fastening Type | Engage (snap) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 46.5 mm |
| Built-in Depth | 31 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Outlet Direction | Straight |
| Dust Cover | Yes (Transparent protective dust cover) |
| Shielded Buses | Yes |
| Separate Earthing Connection | No |
| Label Space | Yes |
| Separate Strain Relief | No |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Colour Coding | Yes |
| Terminal Marking Indication | Yes |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Power over Ethernet (PoE) | Supported - High capacity PoE applications |
| Suitable for Number of Connectors | 1 |
Order Legrand Mosaic RJ45 Socket Category 6A STP 1 Module White | 76573 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
