Shop Legrand Mosaic RJ45 Socket Category 6 UTP 2 Modules White | 76564 In Iraq Best Prices
Professional RJ45 Category 6 UTP socket with 1 GigaBit/s data rate, toolless connection, PoE support, transparent dust cover, and 2-module Mosaic design for reliable residential and commercial networking installations.

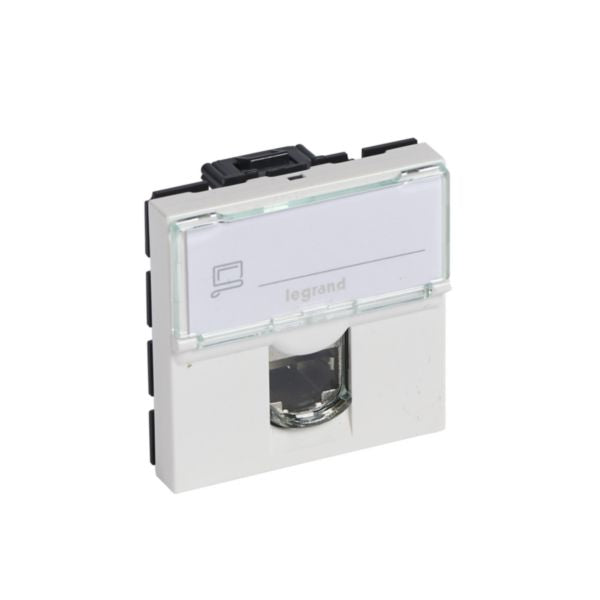

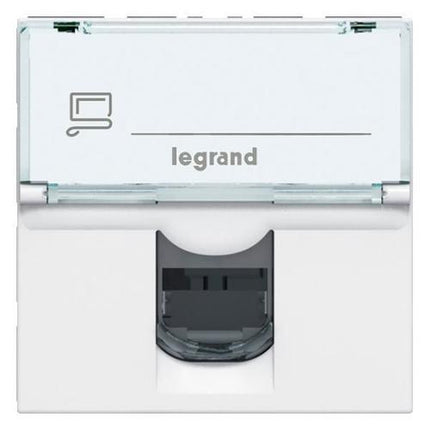

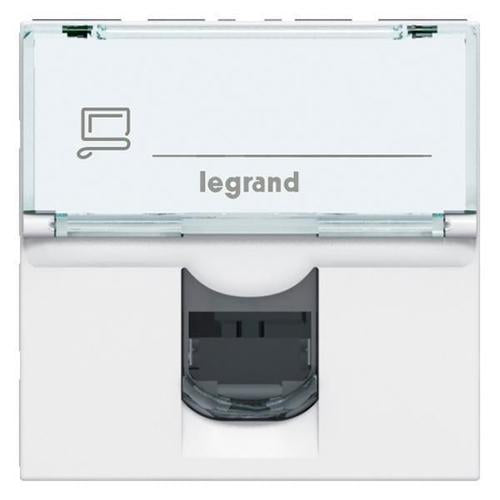

The Mosaic RJ45 Socket Category 6 UTP 2 Modules White is a professional-grade networking connector designed for modern residential and commercial installations. This high-performance socket supports data rates up to 1 GigaBit/s, enabling rapid file downloads and seamless streaming experiences. The product features a transparent protective dust cover that safeguards the connector from environmental contamination and physical damage during installation and operation. Built to international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, this socket ensures reliable performance in diverse networking environments.
Equipped with advanced toolless connection technology, the Mosaic RJ45 socket features integrated crimping that eliminates the need for specialized tools during installation. The socket supports high-capacity Power over Ethernet (PoE) applications, allowing electric power to be transmitted alongside data on twisted pair Ethernet cabling. This dual functionality makes it ideal for powering network devices such as IP phones, access points, and security cameras. The modular 2-module design integrates seamlessly with the Mosaic range, featuring a slot system that allows perfect multigang settings and effortless installation in standard flush mounting boxes without additional wall modifications.
The white finish (RAL 9003) complements modern interior designs while maintaining professional aesthetics. Compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, this socket offers exceptional versatility. With a degree of impact strength rated IK03, operating temperature range of -40 to 70°C, and halogen-free construction, the Mosaic RJ45 socket delivers durability and environmental responsibility. The socket includes rocker plates and support frame compatibility, making installation straightforward for both professional installers and experienced DIY enthusiasts.
Key Features
- Category 6 UTP connector supporting data rates up to 1 GigaBit/s for fast downloads and seamless streaming
- High-capacity Power over Ethernet (PoE) support for powering network devices like IP phones and cameras
- Toolless integrated crimping technology enabling quick and easy installation without specialized equipment
- Transparent protective dust cover safeguarding the connector from contamination and physical damage
- 2-module modular design compatible with Mosaic range featuring slot system for perfect multigang settings
- Compliant with international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C
- Compatible with RJ11, RJ12, and RJ45 plug-equipped cords for maximum versatility
- Supplied with rocker plates and support frame compatibility for straightforward installation
- White finish (RAL 9003) complementing modern interior designs with professional aesthetics
- Halogen-free construction demonstrating environmental responsibility and safety
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket Category 6 UTP |
| Brand | Legrand |
| Series | Mosaic |
| Reference Number | 076564 |
| EAN Code | 3245060765644 |
| Color | White |
| RAL Number | 9003 |
| Number of Modules | 2 |
| Connector Type | RJ45 8(8) |
| Category Rating | Category 6 |
| Data Rate | Up to 1 GigaBit/s |
| Connection Type | Insulation Displacement Connector (IDC) |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Fastening Type | Engage (Snap) |
| With Dust Cover | Yes |
| With Buses/Couplings | Yes |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| With Label Space | Yes |
| Terminal Marking Indication | Yes |
| Color Coding | Yes |
| Outlet Direction | Straight |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Suitable for Number of Connectors | 1 |
| International Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Power over Ethernet Support | Yes - High capacity PoE applications |
| Compatible Plug Types | RJ11, RJ12, RJ45 |
| Assembly Arrangement | Modular device for domestic switching devices |
| Mounting Method | Flush-mounted |
