Shop Legrand Mosaic RJ45 Socket Category 6 UTP 1 Module White Antimicrobial | 76581 In Iraq Best Prices
Professional RJ45 Category 6 UTP networking socket with antimicrobial treatment, 1 GigaBit/s data rate, toolless installation, and flush-mount compatibility for residential and commercial applications.

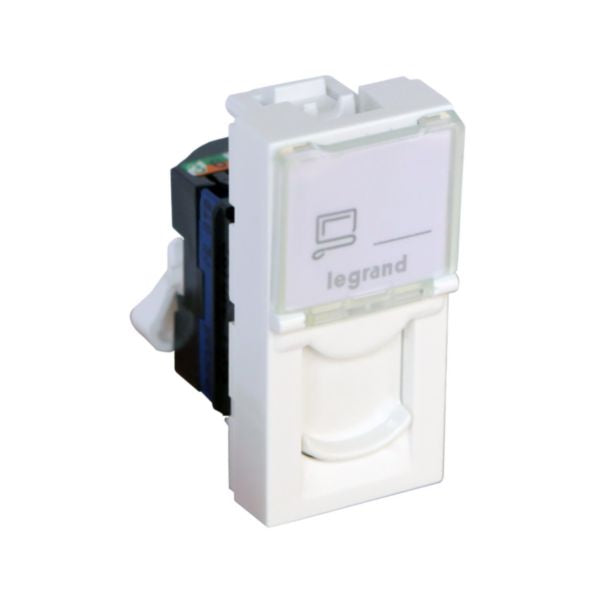

The Legrand Mosaic RJ45 Category 6 UTP socket is a professional-grade networking connector designed for high-speed data transmission in residential and commercial installations. This single-module device supports data rates up to 1 GigaBit/s, enabling rapid file transfers and seamless streaming capabilities. The socket features advanced antimicrobial treatment containing silver compounds that prevent bacterial growth on the surface, making it ideal for healthcare facilities, hospitality environments, and hygiene-sensitive applications. Equipped with a transparent protective dust cover, the connector maintains optimal performance and cleanliness throughout its operational life.
The device incorporates toolless quick-connection technology with integrated crimping, simplifying installation and reducing labor time significantly. Its modular design allows perfect multigang settings without requiring additional wall groove cutting or complex cabling configurations. The RJ45 socket is fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring compatibility with standard networking infrastructure. The flush-mounted installation method integrates seamlessly into existing electrical systems, supporting applications ranging from IP and analog phones to high-performance internet connectivity for gaming and streaming.
With its compact dimensions and robust IK04 impact strength rating, this antimicrobial socket delivers durability and reliability in demanding environments. The device operates efficiently across a wide temperature range from -40°C to 70°C, making it suitable for diverse climate conditions. Compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, the Mosaic socket provides flexible connectivity solutions. The halogen-free construction and sustainable design principles reflect Legrand's commitment to environmental responsibility while maintaining the highest performance standards.
Key Features
- RJ45 Category 6 UTP with data transmission up to 1 GigaBit/s for high-speed networking
- Antimicrobial silver compound treatment prevents bacterial growth on surface
- Toolless quick-connection with integrated crimping for fast, easy installation
- Transparent protective dust cover maintains cleanliness and optimal performance
- Modular 1-module design compatible with multigang configurations and flush-mount boxes
- Supports high-capacity Power over Ethernet (PoE) applications
- Compatible with RJ11, RJ12, and RJ45 plugged cords
- Halogen-free and environmentally sustainable construction
- Wide operating temperature range from -40°C to 70°C
- IK04 impact strength rating for durability in demanding environments
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket Category 6 UTP |
| Data Rate | Up to 1 GigaBit/s |
| Category | Category 6 (Cat 6) |
| Connection Type | Insulation Displacement Connector (IDC) |
| Number of Modules | 1 module |
| Color | White (RAL 9003) |
| Installation Method | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Fastening Type | Engage (snap) |
| Connector Type | RJ45 8(8) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Shielded Buses | No |
| Separate Earthing Connection | No |
| With Dust Cover | Yes - Transparent protective dust cover |
| With Label Space | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | Yes - Silver compound |
| Outlet Direction | Straight |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Compatible Plug Types | RJ11, RJ12, RJ45 |
| PoE Support | Yes - High capacity Power over Ethernet |
| Reference Number | 076581 |
| EAN Code | 3245060765811 |
