Professional Category 6 shielded RJ45 socket for snap-on columns with 10GigaBit/s data rate, PoE support, toolless installation, and dust cover protection.

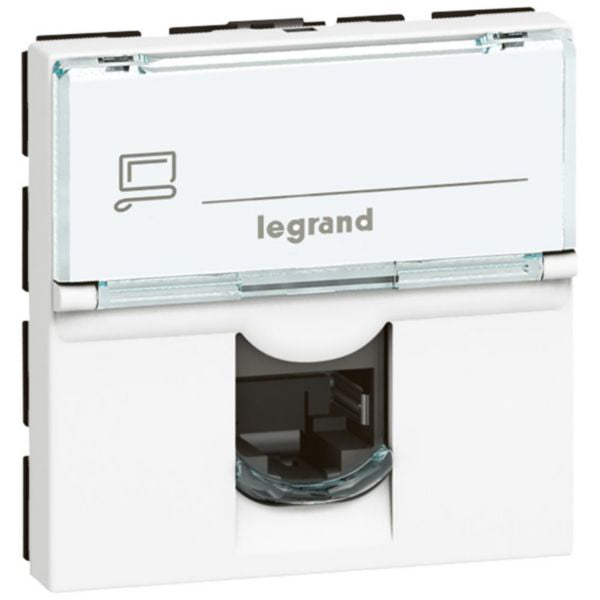

The Mosaic™ RJ45 Socket is a professional-grade network connectivity solution designed for snap-on columns and mini-columns installations. This Category 6 shielded STP (Shielded Twisted Pair) connector supports data rates up to 10 GigaBit/s, enabling high-speed data transmission and downloads of 1 GigaBytes in just 1 second. The socket features a transparent protective dust cover, four lateral fastening clips, and shielded construction to eliminate electromagnetic interference, making it ideal for both commercial and residential installations.
Equipped with toolless quick-connection technology and integrated crimping capability, this 2-module RJ45 socket ensures fast and reliable installation without requiring additional wall modifications. The connector is compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, providing versatile connectivity options. It supports high-capacity PoE (Power over Ethernet) applications, allowing electric power to be transmitted along with data on twisted pair Ethernet cabling, making it suitable for IP phones, analog phones, and modern IoT devices.
The product conforms to international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring compatibility and reliability across global networks. Its modular design allows for perfect multigang settings with support frames that can be seamlessly joined, simplifying installation in standard flush mounting boxes. The horizontal label space positioning is specially designed for snap-on columns or mini-columns, providing excellent organization and identification capabilities.
Key Features
- Category 6 STP shielded connector with 10 GigaBit/s data transmission capability
- Transparent protective dust cover with four lateral fastening clips for secure mounting
- Toolless quick-connection technology with integrated crimping for fast installation
- High-capacity PoE (Power over Ethernet) support for powering network devices
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity options
- Modular 2-module design for multigang installations and perfect slot system alignment
- Horizontal label space positioning for snap-on columns and mini-columns
- Shielded construction to eliminate electromagnetic interference
- Conforms to ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C standards
- Suitable for commercial, residential, IP phones, analog phones, and high-speed applications
Technical Specifications
| Specification |
Value |
| Category | Category 6 |
| Type of Connector | RJ45 8(8) |
| Data Rate | Up to 10 GigaBit/s |
| Shielding | Shielded STP (Shielded Twisted Pair) |
| Number of Modules | 2 modules |
| Connection Type | Insulation Displacement Connector (IDC) |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 39.5 mm |
| Built-in Depth | 31 mm |
| Colour | White (RAL 9003) |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Type of Fastening | Engage (Snap) |
| Installation Method | Flush-mounted |
| Dust Cover | Yes - Transparent protective cover |
| Halogen Free | Yes |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| PoE Support | Yes - High-capacity Power over Ethernet |
| Label Space | Yes - Horizontal positioning |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| Suitable Installation Types | Flush-mounted, Duct installation, Floor box/subfloor mounted |
